Smart Billboard Big Advertising Tv Panel Module Outdoor Led Display Screen
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
15-25 Days
Brand:
Minvol
Product Description
Smart Billboard Big Advertising Tv Panel Module Outdoor Led Display Screen
Product description
LED smart screen with this structure, a copper column is directly installed on the power supply, and the other end is fixed on the driving board with a screw, which solves the problem of difficulty in wiring with wires, and the screw for conducting electric also plays a role in fixing the power supply. As a new advertising medium, It has become a highlight of the application of LED multimedia advertising in modern cities.
Product parameters
| Product Name: | P20 LED smart screen |
| Light Source Model: | 2427 |
| Size/Unit: | 1024mm(L)*250mm(H) |
| Viewing Angle: | H120°/V120° |
| Power(W)/㎡: | 400W/㎡ |
| Average Power/㎡(W): | 133W/㎡ |
| Voltage: | AC85-265V |
| Pixel Pitch(mm): | 20.83mm(H)*20.83mm(V) |
| LED quantity/㎡(PCS): | 2304 pixel/㎡ |
| Transparency: | ＞86% |
| Weight: | 2.5kg/Unit |
| Protection Grade: | IP43 |
| Operation Temperature: | -20℃~45℃ |
Product pictures
Product Installation Schematic

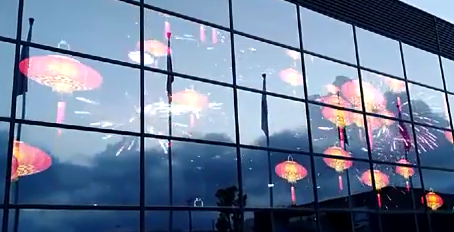

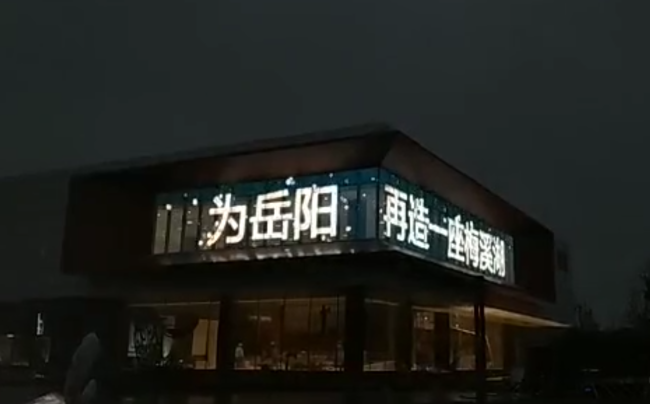

Project pictures
