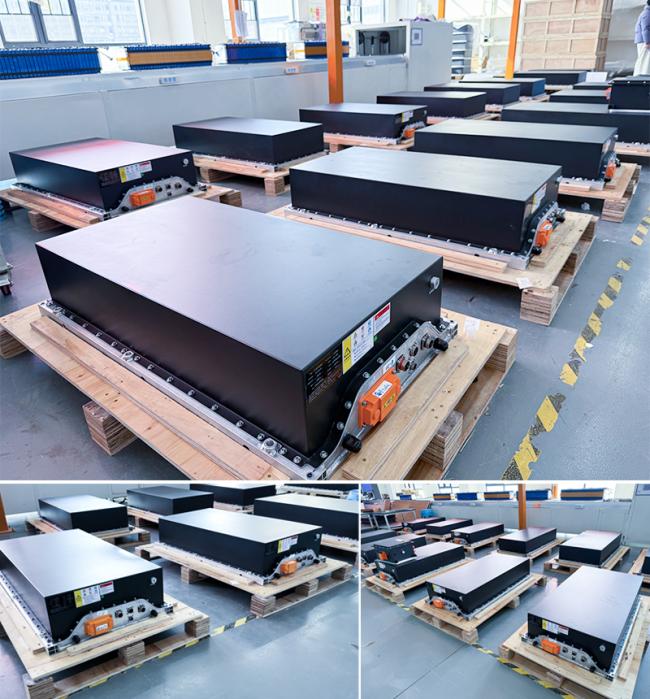

CTS Standard Pure Electric Sweeper 614.4V 282KWh Lifepo4 Battery
Price:
USD120-USD200/KWH
MOQ:
2 SETS
Delivery Time:
60-70 DAYS
Brand:
CTS Battery
Product Description
CTS Standard Pure Electric Sweeper 614.4V 282KWh Lifepo4 Battery
|
NO. |
Specification of 614.4V 460Ah 282.6KWh Lifepo4 Battery |
|
|
1 |
Rated Voltage |
614.4v |
|
2 |
Rated Capacity |
460Ah |
|
3 |
Array Mode |
2P 192S |
|
4 |
Total Energy |
282.6kWh |
|
5 |
Continous Discharge Current |
400A Max at 25℃ |
|
6 |
Peak Discharge Current |
800A within 5s |
|
7 |
Recommend Charge Current |
Max 100A |
|
8 |
Communicate Peotocol |
CAN BUS |
|
9 |
Dimension |
8 modules in total +a PDU box |
|
10 |
Estimated Weight |
about 1830kg (without installation brackets) |
|
11 |
IP Proetction |
IP67 |
|
12 |
Cooling Method |
Liquid Cooling |
|
13 |
Heating Method |
Charge PI Heating |
|
14 |
Dimension with brackets |
8*(L1060*W630*H240mm) +a PDU (L500*W400*H300mm) |
Standard EV Battery Module facts:
uD83DuDC77PACK System Core Technology uD83DuDC77Compact + Lightweight Design uD83DuDC77Patented Smart Thermal Liquid Technology uD83DuDC77Modular Design + Single Module Drivable uD83DuDC77The all parts in the module is standard parts which are molded parts uD83DuDC77Cell Core Technology uD83DuDC77Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.
Why choose this Standard EV Battery Module?
✅SOC Calculation: Real time dynamic calibration Vehicle operation condition wasconsidered Multi-method combination High accuracy measurement of thecell Voltage /temperature/pack current Amount of data from experiment
✅Faults Diagnosis: Insulation & water leakage Cell voltage out of range High/low temperature Communication faults Contactor weld Power connection Temperature sensor faults
Electric vehicle lithium-ion battery - CTS battery
Electrical diagram of lithium battery system in standard box Two way high voltage input, doublegun charging Two way hight voltage output-water cooling compressor output; motor driving output;Single way low voltage output ,communicate with the whole vehicle!
