300V 400V 600V High Voltage EV Battery Pack Lithium Ion Battery for EV Boat Truck
Price:
$3900(153.6V 230Ah) per set
MOQ:
2
Delivery Time:
60 working days
Brand:
CTS Battery
Product Description
CTS High Voltage EV Battery Solutions
High-performance lithium-ion battery systems for electric vehicles, boats, trucks, and industrial applications. Available in multiple voltage configurations (300V-800V) and capacities (105Ah-314Ah).
153.6V 230Ah Lifepo4 Battery Modules (Model No.: W-XY-156206-1)
| No. | Module Qty | Total Energy | Rated Volt | Rated Capacity | Working Volt | Discharge Power @ 25℃ | Suggested Motor |
|---|---|---|---|---|---|---|---|
| 1 | 3S 1P | 105.9kWh | 460.8V | 230Ah | 360V-525V | 50kW rated 100kW max 200kW peak for 30 sec | ≤100kW rated |
| 2 | 3S 2P | 211.9kWh | 460.8V | 460Ah | 360V-525V | 100kW rated 180kW max 360kW peak for 30 sec | ≤180kW rated |
| 3 | 3S 3P | 317.7kWh | 460.8V | 690Ah | 360V-525V | 150kW rated 220kW max 440kW peak for 30 sec | ≤220kW rated |
| 4 | 4S 1P | 141.3kWh | 614.4V | 230Ah | 480V-700V | 70kW rated 140kW max 280kW peak for 30 sec | ≤140kW rated |
| 5 | 4S 2P | 282.4kWh | 614.4V | 460Ah | 480V-700V | 140kW rated 240kW max 480kW peak for 30 sec | ≤240kW rated |
| 6 | 4S 3P | 423.9kWh | 614.4V | 690Ah | 480V-700V | 210kW rated 290kW max 590kW peak for 30 sec | ≤290kW rated |
| 7 | 5S 1P | 176.6kWh | 768V | 230Ah | 600V-876V | 85kW rated 175kW max 350kW peak for 30 sec | ≤175kW rated |
| 8 | 5S 2P | 353.2kWh | 768V | 460Ah | 600V-876V | 175kW rated 300kW max 600kW peak for 30 sec | ≤300kW rated |
| 9 | 5S 3P | 529.8kWh | 768V | 690Ah | 600V-876V | 260kW rated 370kW max 740kW peak for 30 sec | ≤370kW rated |
115.2V280Ah Lifepo4 Battery Modules
| No. | Module Qty | Total Energy | Rated Volt | Rated Capacity | Working Volt | Discharge Power @ 25℃ | Suggested Motor |
|---|---|---|---|---|---|---|---|
| 10 | 3S 1P | 96.8kWh | 345.6V | 280Ah | 270V-394.2V | 50kW rated 90kW max 180kW peak for 30 sec | ≤90kW rated |
| 11 | 3S 2P | 193.5kWh | 345.6V | 560Ah | 270V-394.2V | 95kW rated 160kW max 320kW peak for 30 sec | ≤160kW rated |
| 12 | 3S 3P | 290.3kWh | 345.6V | 840Ah | 270V-394.2V | 140kW rated 200kW max 400kW peak for 30 sec | ≤200kW rated |
| 13 | 4S 1P | 129.0kWh | 460.8V | 280Ah | 360V-525V | 60kW rated 110kW max 250kW peak for 30 sec | ≤110kW rated |
| 14 | 4S 2P | 258.0kWh | 460.8V | 560Ah | 360V-525V | 125kW rated 210kW max 430kW peak for 30 sec | ≤210kW rated |
| 15 | 4S 3P | 387.1kWh | 460.8V | 840Ah | 360V-525V | 190kW rated 270kW max 540kW peak for 30 sec | ≤270kW rated |
| 16 | 5S 1P | 161.3kWh | 576V | 280Ah | 450V-657V | 80kW rated 145kW max 320kW peak for 30 sec | ≤145kW rated |
| 17 | 5S 2P | 322.6kWh | 576V | 560Ah | 450V-657V | 160kW rated 270kW max 540kW peak for 30 sec | ≤270kW rated |
| 18 | 5S 3P | 483.8kWh | 576V | 840Ah | 450V-657V | 240kW rated 335kW max 670kW peak for 30 sec | ≤335kW rated |
| 19 | 6S 1P | 193.5kWh | 691.2V | 280Ah | 540V-788.4V | 95kW rated 170kW max 385kW peak for 30 sec | ≤170kW rated |
| 20 | 6S 2P | 387.1kWh | 691.2V | 560Ah | 540V-788.4V | 190kW rated 325kW max 655kW peak for 30 sec | ≤325kW rated |
| 21 | 6S 3P | 580.6kWh | 691.2V | 840Ah | 540V-788.4V | 290kW rated 400kW max 810kW peak for 30 sec | ≤400kW rated |
Standard EV Battery Module Features
- PACK System Core Technology
- Compact + Lightweight Design
- Patented Smart Thermal Liquid Technology
- Modular Design + Single Module Drivable
- All parts in the module are standard molded parts
- Cell Core Technology
- Power type Li-ion battery with long cycle life and fast charging-discharging
Advanced Battery Management Features
SOC Calculation:
- Real-time dynamic calibration
- Vehicle operation condition consideration
- Multi-method combination
- High-accuracy measurement of cell voltage/temperature/pack current
Faults Diagnosis:
- Insulation & water leakage detection
- Cell voltage range monitoring
- Temperature monitoring
- Communication faults detection
- Contactor weld monitoring
- Power connection monitoring
Our Advantages
Grade A Top Brand Battery Cells
Clear Technical Documentation
BMS & Electric Design, Independent PDU Design

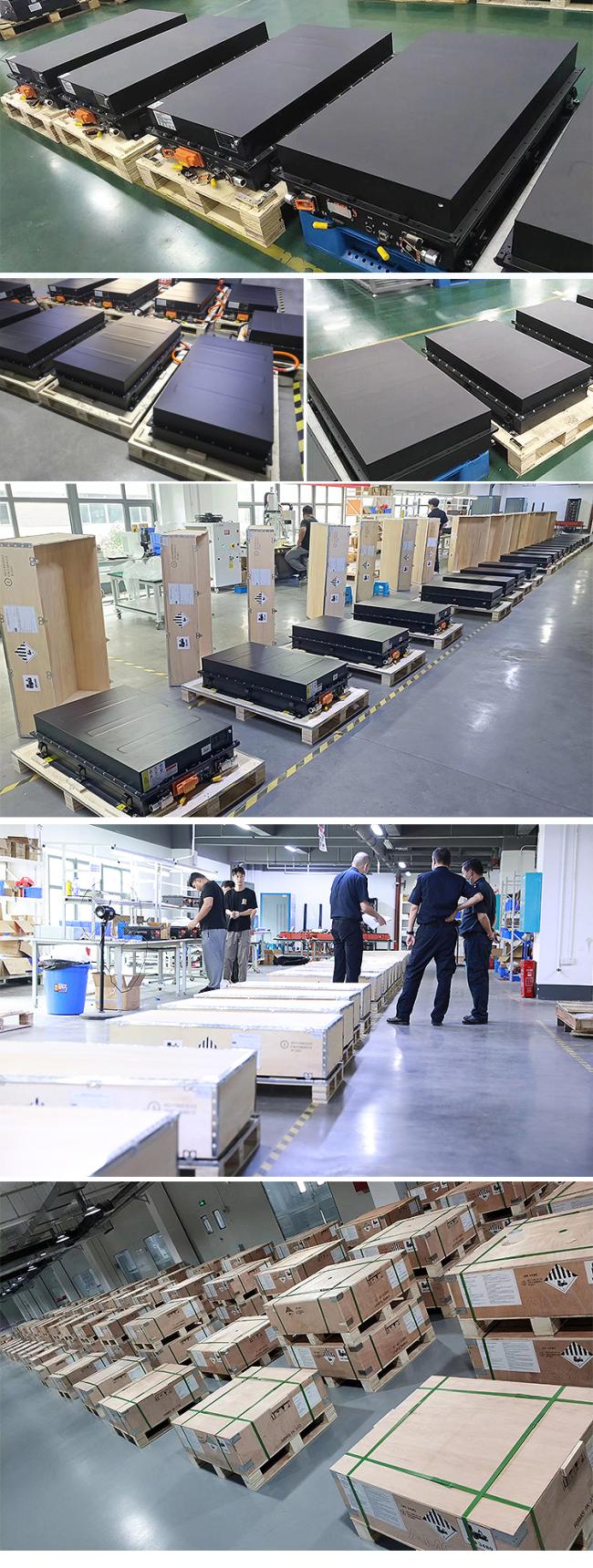

Our Factory
Hunan CTS Technology Co., LTD established in 2011, specializing in R&D, production, sales and service of lithium battery packs. We focus on one-stop customized lithium battery products including electric vehicle batteries, truck batteries, boat batteries, golf cart batteries, energy storage systems, and mobile charging stations.
With a 30-person R&D team and rich experience, CTS provides power battery customization for middle and high-end markets using first-grade lithium cells with high energy density. Our strict quality control ensures product excellence, following ISO 9001 and IATF 16949 management systems.
Our batteries are certified with MSDS, UN38.3, CE, IEC 62619 and are exported worldwide to countries including America, Australia, Canada, Italy, UK, Germany, South Korea, and Thailand.
