3500 Cycles IP67 Lithium Ion 60V 72V 100Ah LifePO4 Battery Pack for Electric Tricycle and Slow Speed Vehicles

Price Negotiable
Price: 890~1250USD/unit
MOQ: 2
Delivery Time: ~35 days
Brand: CTS Battery
Product Description

3500 Cycles IP67 Lithium Ion 60V 72V 100Ah LifePO4 Battery Pack for Electric Tricycle and Slow Speed Vehicles

╣PRODUCT DESCRIPTION

OEM/ODM



Application: TukTuk, Motorcycle, Scooter, Ebike, E-rickshaw, Tricycle,Golf cart

1. Grade A brand new high power Lithium lron LiFePO4 Battery cell
2. High power big current BMS (BT/Canbus)
3. Top quality metal case with lP67 4. Support customized charge and discharge port
5. GPS / Regenerative Braking Systems optional
MODEL
CTS64105
CTS76105
Cell Type - Chemistry
Prismatic- LiFePO4
Prismatic- LiFePO4
Rated Capacity
105
105Ah
Rated Voltage
64v
76.8V
Energy
6720wh
9064wh
Resistance
30mΩ
30mΩ
Self Discharge
<3% per month
<3% per month
Dimensions (L x W x H)
L550*W420*H240mm
(Can make it smaller if you want)
L750*W520*H240mm
(Can make it smaller if you want)
Weight
55kg
65Kg
Enclosure Protection
IP67 steel case
IP67 steel case
Discharge Cut-off Voltage
50v
50V
Continuous Discharging Current
105A
105A
Peak Discharge Current
300A for 10S
300A for 10S
Recommended Discharge Current
105A
105A
Charging Limited Voltage
73V
87.6V
Max Charging Current
100A
100A
Recommended Charge Current
50A
50A
Charge Temperature Range
0~50℃
0~50℃
Discharge Temperature Range
-20~60℃
-20~60℃
Recommended Operating Temperature
15~35℃
15~35℃
Available on request
Size, C rate, Communication protocol
Size, C rate, Communication protocol

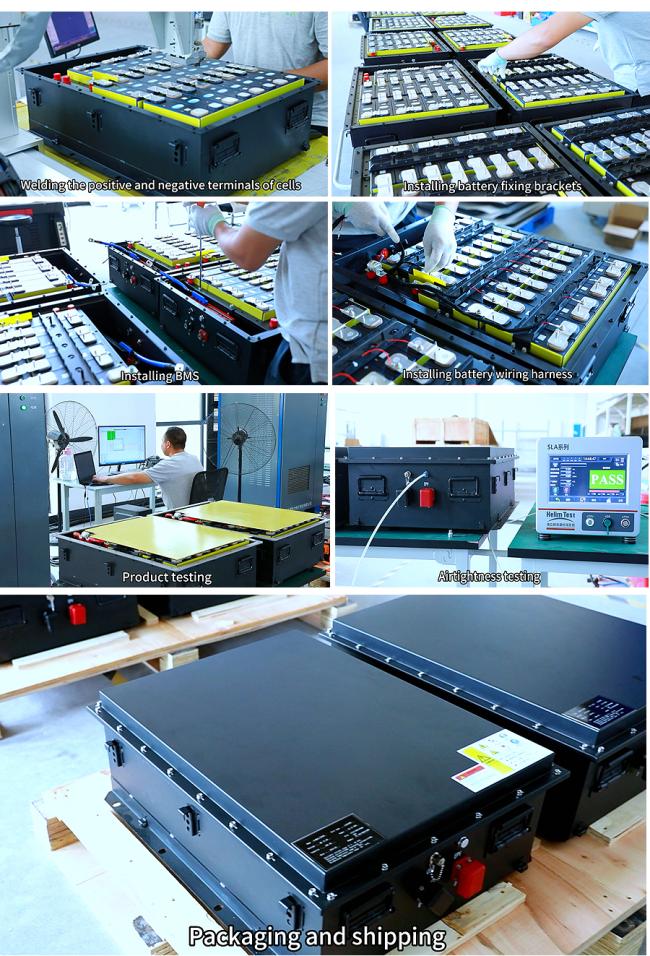

╣Production Details
Customized Battery Pack For Kinds of Electric Vehicles 60V/72V/96V/144V Series
Advantages
* Only grade A LiFePO4 cells, safe and reliable
* Grade A battery cellswith Long life 3500cycles, design life upto 10 years .
* Built in BMs whichincluding over charge,over discharge, over-heating and short circuit protection.
* Fast charge in a short time, within2 hours, effectively saving thecharge time.
*Support customized,Flexible battery solutionsto meet different customer needs.
* High energy density and high discharge performance.
╣APPLICATIONS
3500 Cycles IP67 Lithium Ion 60V 72V 100Ah LifePO4 Battery Pack for Electric Tricycle and Slow Speed Vehicles
