CTS Factory Custom Battery Pack 24V 36V 48V 100Ah 200Ah Lithium Lifepo4 Battery for AGV Robot Golf Cart Lift Elevator

Price Negotiable
Price: Negotiable
MOQ: 2
Delivery Time: 15-20 working days
Brand: CTS battery
Product Description

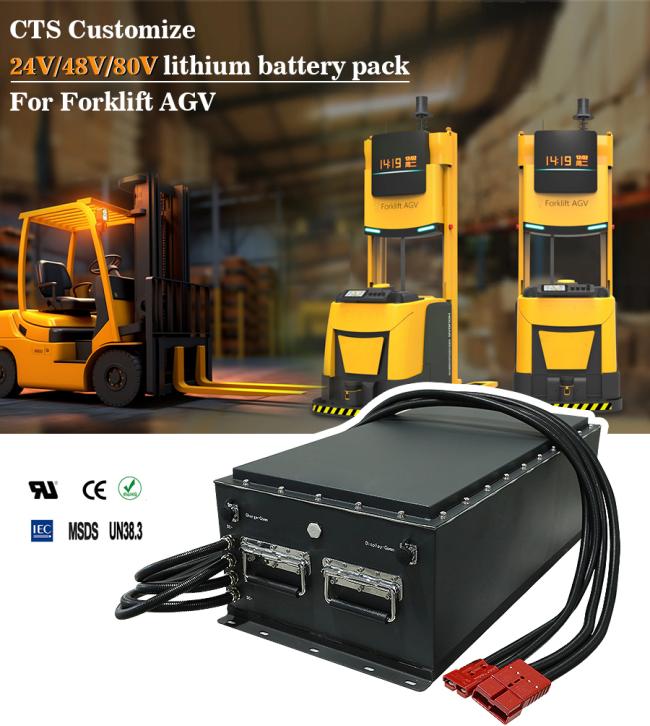

CTS Factory Custom 24V 36V 48V 72V 100Ah 200Ah 300Ah Lithium Lifepo4 Battery Pack for AGV Robot Golf Cart Forklift Lift Elevator

High-performance lithium battery solutions designed specifically for AGV (Automated Guided Vehicle) and AMR (Autonomous Mobile Robot) applications. CTS Battery provides safe, durable, and customizable power systems to ensure stable operation in 24/7 industrial environments.



Features:

* High Energy Density: Longer runtime with compact size, maximizing internal space for AGV design.
* Long lifetimes - >4500 cycles @85% DOD
* Standard module capacity can be customized
* Self-engineered BMS with cell level monitor
* Short circuit/ Over current/Over voltage/Over temperature protection
* Bluetooth APP available on request to see the status of the battery
* Strong metal case with black color, IP67 waterproof
* OEM logo available
* Fast charge and discharge capability, optional precharge / contactor / PDU integration * Certifications available: CE / UN38.3/MSDS / IEC (by model / country)
Parameters of 51.2v 280Ah LFP battery pack
No.
Items
Technical requirement
Note
1
Battery Type
Lifepo4 battery

2
Capacity(Ah)
280ah
@25℃
3
Volatge(v)
51.2v

4
Power(kWh)
14.336kwh

5
Weight(kg)
115

6
Working Voltage range(DC V)
40~58.4V

7
Continuous discharge current(A)
150
@EOL,@25℃
8
Peak discharge current(A)
300
For 30 seconds
9
Dimension (L/W/H, mm)
L868*W450*H288mm

Typical Use Cases
* AGV / AMR power modules (repeated charge cycles, fast discharge bursts)
* Electric golf carts and utility vehicles (high discharge and long life)
* Forklifts / pallet trucks (high C-rate, rugged enclosures)
* Lifts / elevators (backup / traction power modules, rack-mounted)
* Industrial robots and service robots (compact, safety-certified packs)
