Low Profile 75mm Braked Castors 330kg Heavy Duty Locking Swivel Casters
Introduction to industrial castors
Industrial caster mainly refers to a kind of caster product used in mechanical equipment or factories.
It can be a single wheel made of polyurethane, advanced reinforced nylon (MC) and rubber. The
whole product needs high strength and impact resistance, usually heavy and super heavy casters.
The metal support of industrial casters is made of high-quality black electrophoretic or black sprayed
steel plate. 3 mm, 4 mm, 5 mm, 6 mm, 10 mm or 12 mm steel plates can be used as supports. The
following describes the characteristics of industrial casters in detail.
Requirements for industrial castors
Different industrial casters can be designed according to the bearing capacity of the user environment.
Ball bearing and roller bearing are optional.
Wheels with corresponding materials, width and load capacity canbe selected according to different
user environments.
Generally speaking, industrial castors can be used in various industrial environments such as
workshops, factories, shopping malls and restaurants.
Hanke casters adopt international advanced production and testing equipment and professional
intelligent production management system, have professional process flow, and professionally
manufacture multi-functional and high-quality casters.
2. The product is a forged integrated caster seat, with dual thrust ball bearing rotating structure,
solid welded support and manual brake system. MC nylon and polyurethane castors are available.
You can choose polyurethane casters with less noise that have protection requirements for the
ground, or MC nylon casters with wear resistance and high strength.
3. Long lasting anti rust performance: it will not rust within three years of normal use;
Industrial Swivel Casters Parameter
| Wheel material | POM |
| Load Capacity | 330KG |
| Wheel Diameter | 75mm |
| Color | white |
| Tread Width | 43mm |
| Load Height | 100MM |
Industrial Swivel Casters Describe

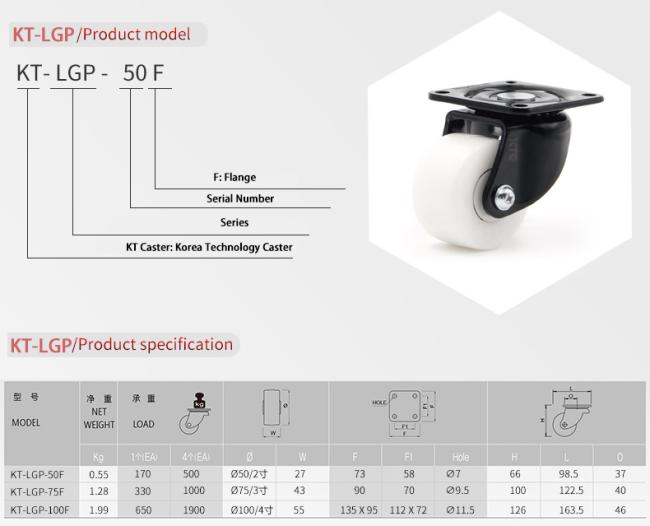

Industrial Swivel Casters Size
Industrial Swivel Casters Material
| Name | Material | Treatment | |
| 1 | Caster Seat | Cold-rolled carbon steel | Black Coated/Zn Galvanized |
| 2 | Body | Aluminum alloy | Ivory/Powder Coated |
| 3 | Ball | Bearing Steel | Ni-Cr |
| 4 | Brake | Steel 45 | Zn Galvanized |
| 5 | Pin | Steel 10 | Zn Galvanized |
| 6 | Wheel | PA6 | Black |
Industrial Swivel Casters Scope of application
Application.
