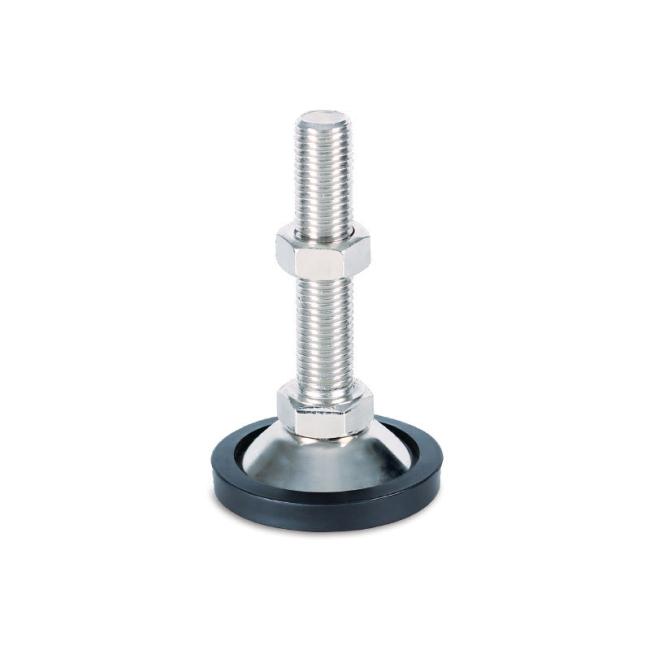

high strength 30mm M6 Threaded Adjustable Feet Conveyor Leveling Feet
Thread knowledge
1, Identification of American unified thread
American unified thread is widely used in inch countries. This kind of thread is divided into three
series: coarse thread series UNC, fine thread series UNF, ultra-fine thread series UNFF, plus a
constant pitch series UN.
Marking method: thread diameter - number of teeth per inch series code - accuracy grade
Example:
Coarse tooth series 3 / 8-16 unc-2a
Fine tooth series 3 / 8-24 unf-2a
Ultra fine tooth series 3 / 8-32 unff-2a
Constant pitch series 3 / 8-20 un-2a
The first digit 3 / 8 (fractional or decimal) represents the outer diameter of the thread, in inches.
When converted to metric units, mm shall be multiplied by 25.4, i.e. 3 / 8 × 25.4=9.525mm； The
second and third digits 16, 24, 32 and 20 are the number of teeth per inch (the number of teeth on
the length of 25.4mm); The text codes UNC, UNF, UNFF and UN after the third digit are series codes,
and the last two digits 2a are Accuracy grades.

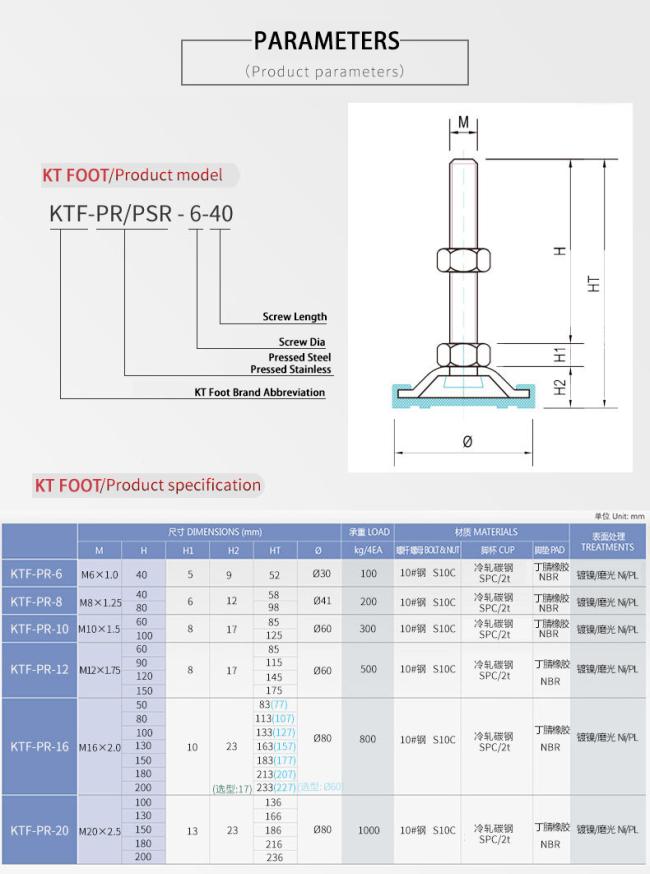

Stainless Steel Adjustable Feet Parameter
Stainless Steel Adjustable Feet Size
Stainless Steel Adjustable Feet Material
| Name | KTC Foot |
| Model | KTF-PR |
| Type |

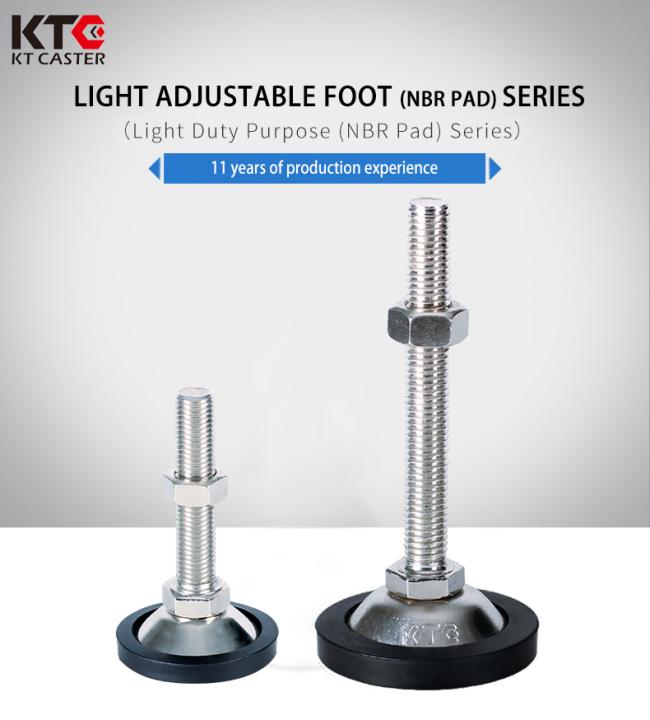

Light Duty Purpose Series
|
| Application |
Conveyor, Automatic facilities, Light duty equipment
|

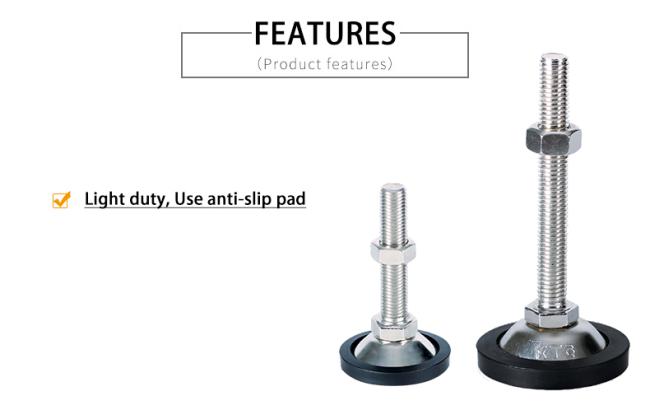

Stainless Steel Adjustable Feet Describe
Application.
Stainless Steel Adjustable Feet Scope of application
About us.
KTC (Bejing Korea Technology Caster Co., Ltd.) was founded in 2007. KTC is a modern
company specialzingin the production of multi function &high quality CASTER and
KT FOOT based on best design and design technology.
KTC.
The company is headquartered in Niulanshan Industrial Zone,Shunyi District, Beijing. KTC
adopts international advanced production testing equipments, professional intelligent
production management system and professional design flow. Now the company produces
multi function & high quality production, such as KT CASTER and KT FOOT, among which
high quality of height adjusting CASTER,shockproof type CASTER, high quality of height
adjusting CASTER, shockproof type CASTER,high load CASTER and level adjusting FOOT
are widely used in the world's advanced automation equipment and semiconductor e
quipment industry.
In order to manufacture the world's highest level of products,KTC use the best processing
technology and equipment. And KTC continuously launches world top level of new products.
KTC's s also has set up a branch in Korea, so it is favored by theusers of various fields around
the world.
|
|
