Steam Gas Oil Water Air System Pressure4-20mA PressureTransmitter

Description   China 0.5~4.5v 4~20mA Pressure Transmitter

500psi 5V 1/8npt oil fuel air pressure transmitter sensor is easily installed in its workplaces, has a compact structure and strong compatibility when it is implemented between sensitive components and measured mediums because of its excellent medium adaptability and stability for a long time; it could directly output what you need such as standard voltage, current or digital signals; in terms of its small and compact structure, it could be implemented in various places where we need saving some installation room and its strong anti-shock performance by its ruggedness.

Detailed Images  China 0.5~4.5v 4~20mA Pressure Transmitter

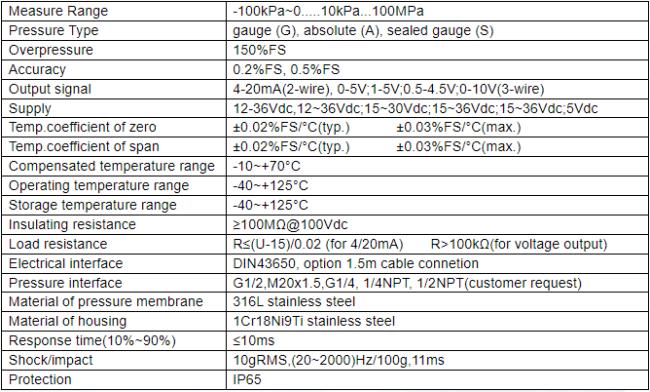

Specification  China 0.5~4.5v 4~20mA Pressure Transmitter

Features  China 0.5~4.5v 4~20mA Pressure Transmitter

1.Main features of pressure transmitter Anti-overload and anti-impact ability, over-voltage up to several times the range, or even directly beat the measuring element with a hard object will not cause damage, and has no effect on the measurement accuracy;

2.High stability, better than 0.1% of full scale each year, the technical indicators have reached the level of intelligent pressure instruments; temperature drift is small, due to the cancellation of the pressure measuring element of the intermediate solution, the sensor not only obtained a high measurement accuracy, and Little affected by temperature gradient;

3.Pressure transmitter wide applicability, easy installation and maintenance, can be installed anywhere.

Industrial field pressure control process, supporting the automotive, central air conditioning, refrigeration equipment, water treatment works, environmental purification, hydraulic and pneumatic control, aerospace, petrochemical industry, food industry, medical equipment, marine and shipbuilding industry, water conservancy,hydropower , power plants and other industries. almost can be used in various industrial fields, suitable for all stainless steel, 316L compatible media, and by choosing different seals to be compatible with more media.
