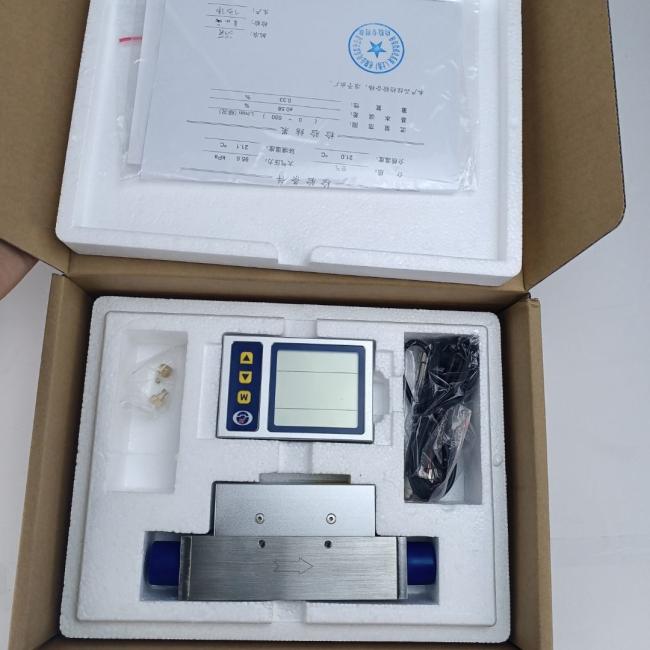

Laboratory MF5600 Stainless Steel Digital Flow Meter
Inline Analog Argon Co2 Natural Gas Flow Meter Digital Tester Price For Laboratory
Description Inline Analog Argon Co2 Natural Gas Flow Meter Digital Tester Price For Laboratory
MF5600 Gas Flow Meter are specially designed for applications where the display is often required to be placed separated away from the flow channel or meter body, such as the oxygen metering system in a hospital. These meters are opted with the standard industrial user interfaces (Rs485 and 4 - 20mA), and user defined alarm functions for better monitoring or control over the network. The off-the-shelf products (MF5612 and MF5619) are for gas flow measurement of 0 - 300 sLPM and 0 - 800 sLPM, respectively
Features Inline Analog Argon Co2 Natural Gas Flow Meter Digital Tester Price For Laborator
Detachable display that can be placed away from the flow channel via a specially designed cable
standard 4 - 20 mA or Rs485 for remote data communication
Hygienic stainless steel body ready for oxygen metering
Extended rangeability for accurate flow monitoring and control
1ntrinsic safe enclosure
Parameter Inline Analog Argon Co2 Natural Gas Flow Meter Digital Tester Price For Laboratory
| Parameter | MF5612 | MF5619 | Unit |
| DN | 12 | 19 | mm |
| MaⅩ. Flowrate | 200, 300 | 600, 800 | SLPM | |
| Min. Flowrate | 0.3 | 0.8 | SLPM | |
| Turn-down ratio | 30:1 | |||
| Accuracy | ± (1.5 + 0.5 FS) | % | ||
| Repeatability | ± 0.5 | % | ||
| MaⅩ. Pressure | 1.0 | MPa | ||
| operating Temperature | -10 ~ +55 | .C | ||
| Humidity < 95 %RH (No icing or condensation) | ||||
Note: the above parameters are applicable at 20o C and 101.325kPa.
