Pneumatic 60Mpa Adjustable Pressure Gauge Calibrator
Description pneumatic pressure calibration Hand pump pressure transmitter Pressure Gauge calibrator

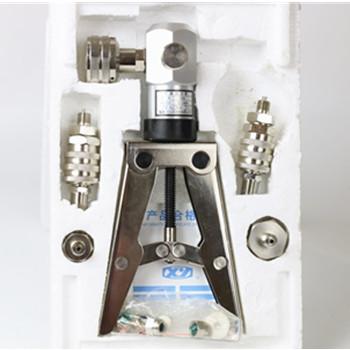

Hand pump pressure transmitter calibrator is a portable pressure pump. This pressure transmitter calibrator is for field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.This hand pump calibrator also provide pressure source correction table for pressure measuring instrument manufacturer. The pressure calibrator for all kinds of pressure transmitter within every 60 Mpa,Pressure sensor and all kinds of pressure gauges Check all available hand pressure pum.
| output pressure range |
Y039: 0-1.6MPa Y061: -0.1-0MPa Y060: -25MPa YFP-16: -0.088~1.6MPa(-0.88~16bar) YFP-20: -0.088~2.0MPa(-0.88~20bar) YFP-25: -0.088~2.5MPa(-0.88~25bar) |
| operating temperature | -20~50C |
| operating relative humidity | ~100% |
| flexible hose connector | M20*1.5 female |
| master gage connector | 1/4NPT male |
| dimensions | 235×120×65 230 x 110 x 60 |
| weight | 0.6kg 0.5kg |
| Accessories | 500 mm long plastic hose and a leatherette carrying bag |
| Outlet threads | 1/4 NPT, or to custom request |
| Vernier-adjuster | micro-adjustable, volume control |
Sepcification pneumatic pressure calibration Hand pump pressure transmitter Pressure Gauge calibrator
Output pressure range: 0-1.6MPa, -0.1-0MPa, 0-25MPa
Operating temperature: -20~50C
Operating relative humidity: 0~100%
Flexible hose connector: M20*1.5 female
Master gage connector: 1/4NPT male
Dimensions: 235×120×65 230 x 110 x 60
Weight: 0.6kg 0.5kg
Accessories: 500 mm long plastic hose and a leatherette bag
Outlet threads: 1/4 NPT, or to custom request
Vernier-adjuster: micro-adjustable, volume control
