DN300 Stainless Steel Gas Flow Meter 100Nm/s IP65 DC24V
Description of YFM800 Hot Gas Mass Flow Meter
YFM800 series gas thermal mass flowmeter is a flowmeter based on thermal diffusion principle.That is, when the fluid flows through the heating object, the heat loss of the heating object is proportional to the flow rate of the fluid.Specifically, the sensor of the flowmeter has two standard RTD, one is used as a heat source, the other is used to measure the temperature of the fluid, the fluid flow, the temperature difference between the two is non-linear relationship with the size of the flow, the meter can convert this relationship into the linear output of the measurement flow signal.There are two design methods for flowmeter manufactured by thermal diffusion principle: one is based on thermostatic difference principle;The second is based on the constant power principle.Based on the common data model: P/ train T=A+B(Q) n. where: P -- dissipated power; T -- temperature difference between two sensors; Q -- mass flow; N -- exponential coefficient; A and B are the coefficient related to the thermal performance of the gas. Thermostatic difference principle: T remains constant, dissipated power P and fluid flow Q into an exponential function increasing relationship. Constant power principle: dissipated power constant, temperature difference delta T and the flow of fluid Q into the relationship of exponential decline function. Our company adopts the thermostatic difference method.
Features of YFM800 Hot Gas Mass Flow Meter
| Measuring range | 0.5~100Nm/s |
| Accuracy rating | 1.0% reading, 0.5% full range |
| Range ratio | Typically 100:1 (depending on the range of calibrated flows)) |
| Pipe diameter range | 15~8000mm |
| Range of application | Suitable for all kinds of single or mixed gases.Dust, sand, and other corrosive gases |
| Ambient temperature range |
- 40 ºC ~ + 85 ºC (not shown), and 30 ºC ~ + 70 ºC (show), humidity
<90% RH
|
| Dielectric temperature range | -40ºC~+100ºC,-40ºC~+200ºC,-40ºC~+350ºC |
| Sensor diameter | φ2.5,φ3,φ4 |
| Insert sensor probe rod diameter | φ19,φ25 |
| Sensor material | 316 stainless steel, hastelloy, titanium |
| Probe rod material (protective cover) | 316G stainless steel (standard), hastelloy |
| Analog output | Output flow: 4-20 mADC , temperature: 4-20 mADC, maximum load: 500 Ω |
| Power supply | The whole machine DC24V/AC220V,Split converter AC220V |
| Pressure of work | plug-in≤2.5mpa,pipeline≤4.0mpa |

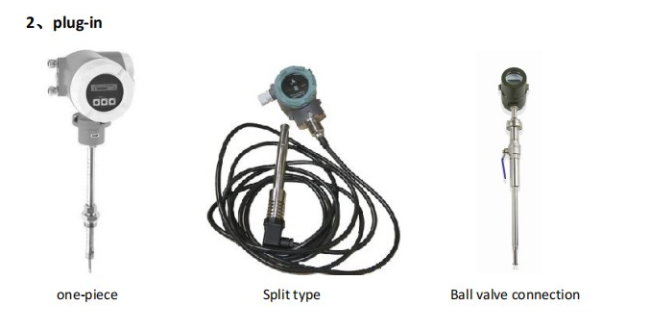

| Installation process | Insert type (clamp sleeve, clamp sleeve + ball valve, flange connection),Pipe type (flange, threaded connection) |
| Explosion-proof grade | Intrinsic safety, flameproof |
| Protection grade | IP65 |
|
Nominal
diameter
|
DN15
|
DN25
|
DN40
|
DN50
|
DN80
|
DN100
|
DN150
|
DN200
|
DN250
|
DN300
|
|
L(mm)
|
300 | 300 | 350 | 350 | 450 | 450 | 500 | 600 | 600 | 650 |
|
H(mm)
|
300 | 300 | 300 | 300 | 350 | 380 | 400 | 450 | 500 | 550 |
