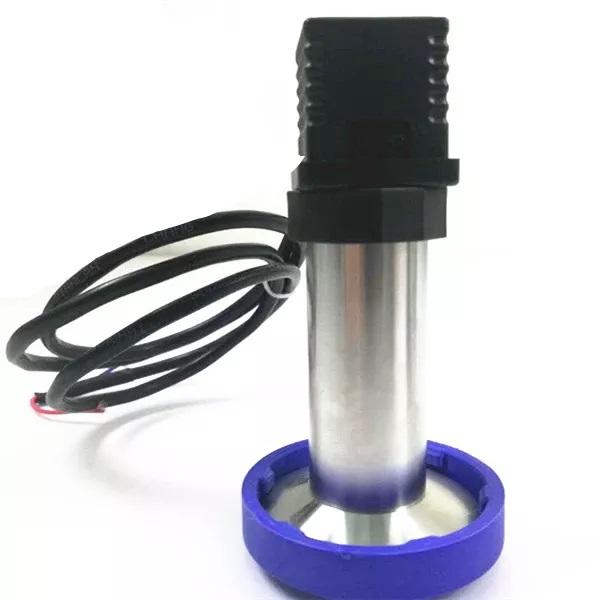

Integrated Gas Liquid Differential Pressure Transmitter Diaphragm Clamp
China diaphragm clamp integrated pressure transmitter sanitary gas liquid pressure sensor
Description:
4-20ma Flush Diaphragm Pressure Transmitter is a kind of pressure sensor commonly used in industrial practice. It is widely used in a variety of industrial automation environments, involving oil pipelines, water conservancy and hydropower, railway traffic, intelligent building, production control, aerospace, military, petrochemical, oil wells, Electricity, ships, machine tools, pipeline air supply, boiler vacuum and many other industries.
Detailed:
Specification:
| pressure medium | gas or liquid compatible to stainless steel |
| pressure ranges | -1...0~0.1...1000bar |
| pressure type | gauge (G), absolute (A), sealed gauge (S) |
| overload pressure | 150%FS |
| output signal | 4~20mA, 0~5V, 0~10V, 1~5V, 0.5~4.5V |
| accuracy | 0.1%FS, 0.25%FS (standard), 0.5%FS |
| load resistance | RL = (U-12V)/0.02A (4~20mA current output) U-loop voltage (V) |
| long term stability | <0.2%FS/year |
| supply voltage | 12~36V |
| compensated temperature range | 0~70°c |
| operating temperature range | -30~+85°c |
| storage temperature range | -40~+120°c |
| temperature coefficient of zero | 0.2%FS/10°c |
| temperature coefficient of span | 0.3%FS/10°c |
| insulation resistance | 100MΩ@ 50VDC |
| process connection | G1/2 or others |
| electrical connection | hirschmann or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | 316L |
| material of housing | 1Cr18Ni9Ti |
| servie life | 108cycle |
Features:
Pressure ranges: -1...0~0.1...1000bar

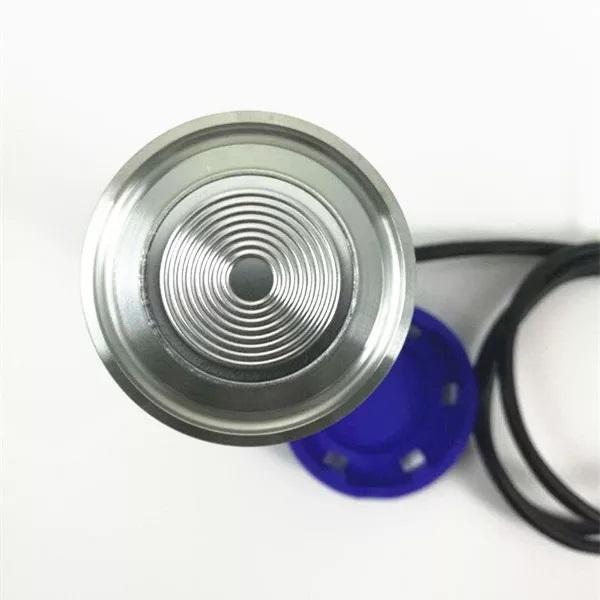

Flush membrane structure without input pressure hole & cavity
High accuracy, high strength, sanitary type, against fouling, dimensions can be customized.
Pressure type: gauge pressure, absolute pressure, sealed gauge pressure
Has different output signals
Applications:
It is widely used in a variety of industrial automation environments, involving oil pipelines, water conservancy and hydropower, railway traffic, intelligent building, production control, aerospace, military, petrochemical, oil wells, Electricity, ships, machine tools, pipeline air supply, boiler vacuum and many other industries.
