Stainless Steel Digital Oil Filled Pressure Gauges With Rechargeable Battery
Description Stainless Steel Oil Filled Pressure Gauges
YN series Glycerine filled stainless steel pressure gauge with direct contact,fittings and pressure sensitive element of SUS316 material, has strong
anti-corrosion properties of the measured medium, at the same time, housing,machines and other core components are all 1Crl8Ni9Ti, OCrl8Ni 12M02Timaterial. Hermetically structure, the outer surface of the entire spray PTFE coating, has the best corrosion resistance to environmental capacity,so that the product is suitable for corrosive medium stainless steel element detection and harsh external corrosive environments.

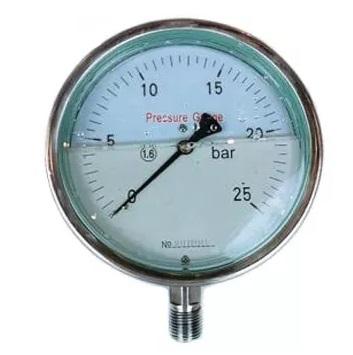

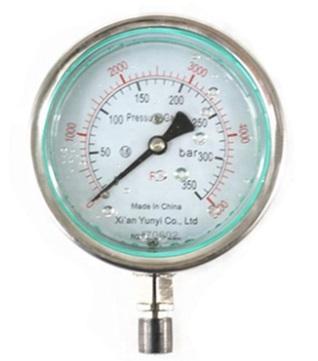

Detailed Images Stainless Steel Oil Filled Pressure Gauges
Specification Stainless Steel Oil Filled Pressure Gauges
| Stainless Steel Oil Filled Pressure Gauges | |
| Pressure Range | -0.1 ~ 60 ~ 250Mpa (custom) |
| Diameter | 60mm, 100mm, 150mm (custom) |
| Thread | 1/2NPT (custom) |
| Temperature | -40℃ ~ 70℃ |
| Material | Stainless Steel |
| Medium | Oil Filled |
| Accuracy | 1.6, 2.5,1.0 (custom) |
| Dimension | φ100mm × 34mm |
| Weight | 0.75kg |
Application Stainless Steel Oil Filled Pressure Gauges
* Industrial,
* petroleum,
* chemical,
* heating systems,
* piping,
* instrumentation,
* pneumatic line and auxiliary equipment.
Selection Guide Stainless Steel Oil Filled Pressure Gauges
1.Dial size:
2.Pressure Range:
3.Thread:
4.Quantities:
