Aluminum Alloy Dry Differential Pressure Transmitter 10kpa For Air Gas
Description Dry Air Gas 4-20mA Cheap Differential Pressure Transmitter
This differential air pressure transmitter, adopting the imported high-precision, high stability micro-pressure chip.
The shell is aluminum alloy structure. The two pressure interfaces are M10 screw thread and cock structure. (Customer can choose the size of pressure interfaces.) It can be directly installed on the measuring pipe or connected by the pressure pipe, easy to install and use.
Milli voltage, standard voltage, current, frequency signal output are available to choose.
The transmitter is widely used in petroleum, chemical industry, metallurgy, electric power and other fields. It effectively control in power and coal industries, such as boiler ventilation and underground ventilation.

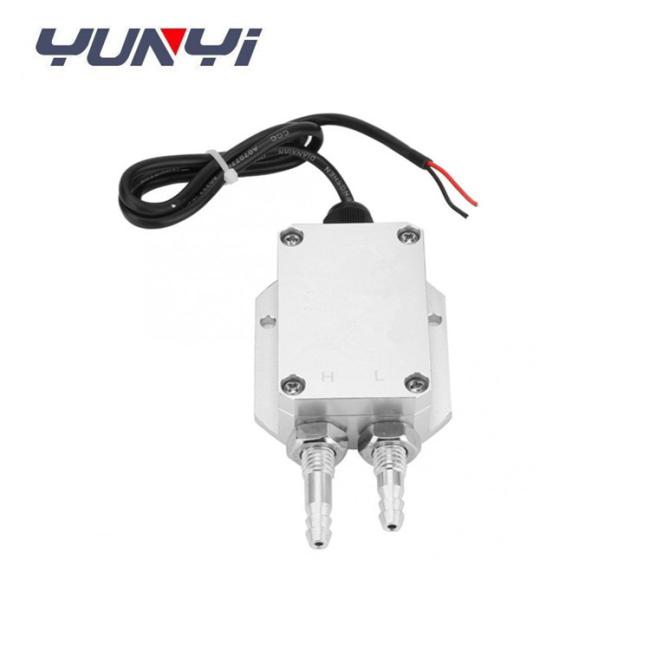

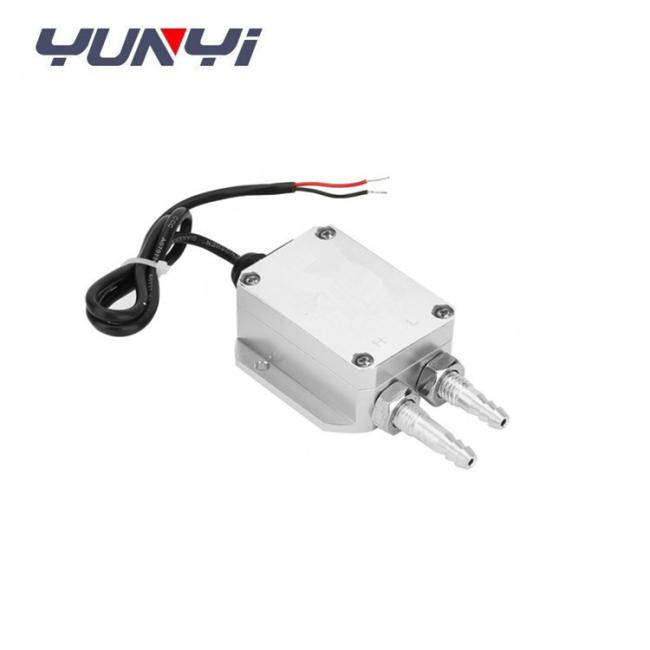

Detailed Images Dry Air Gas 4-20mA Cheap Differential Pressure Transmitter
Specification 60MPa Precision Hydraulic Pressure Gauges Calibration Machine
| Measuring Medium | Gas (low corrosion and drying) | Pressure Type | Differential pressure |
| Process Connection Material | Aluminum Alloy | Output Signal | 4~20mA(Default) |
| Accuracy | 0.5%FS | Power Supply | 24VDC |
| Overload Capacity | 200%FS | Environment Temp | -40~85℃ |
| Medium Temp | -40~85℃ | Measurement Range | -10KPA~0~10KPa |
| Seismic Capacity | 25g(20~2000Hz) | Load Resistance | Max.800Ω |
| Electronic Wire | 2 Wires, 3 Wires | Response Time | ≤10mS |
|
Withstand Voltage |
3 times range value (general is the Max. pressure of one side) |
Waterproof |
IP65 |
| Relative Humidity | 0~95% RH | Explosion-proof grade | Exia II CT5 (safe explosion proof type) |
| Zero Temp Drift | 0.02%F.S/°C | Sensitivity Temp Drift |
0.02%F.S/°C |
Features Dry Air Gas 4-20mA Cheap Differential Pressure Transmitter
The transmitter has high sensitivity, high pressure transmitter transducer 4-20mA Pressure Difference Transmitter Micro Pressure Differential Sensor fm and strong overload resistance.
Highly integrated sensor and amplifier circuits; Die-cast aluminum alloy is adopted, zero point and Accurancy of circuit board need not be adjusted;
Strong anti-interference ability, long-term stability and reliability.
Adopts unique stress isolation technology, and after precise temperature compensation and high stability amplification processing, the signal of the measured medium will be converted into 4~20mA output signal.
Applicable environment: widely used in medical treatment, clean room, boiler, dust collector, vacuum cleaner, power plant, air conditioning and other environment pressure measurement. Measuring medium: non-corrosive gas.
Applications Dry Air Gas 4-20mA Cheap Differential Pressure Transmitter
It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.
