CV 0.08 Natural Air Gas Pressure Regulator Hastelloy 316L

Price Negotiable
Price: USD$168-USD$298/Unit
MOQ: 1
Delivery Time: 5-10 working days
Brand: Yunyi
Product Description

Description



YR11 series stainless steel pressure reducer, unipolar diaphragm decompression structure, stainless steel diaphragm pressure transmission, stable combing pressure, high response sensitivity, suitable for pure gas, standard gas, corrosive gas

1: Unipolar decompression structure
2. The mother body and the diaphragm adopt a hard seal form
3. Female thread: 1/4''NPT (F)
4. Internal structure is easy to purge
5. Built-in filter
6. Can be installed in panel or wall
7 Scope of application: laboratory/gas chromatography instruments/ gas lasers/gas busbars/petrochemical industry/test equipment

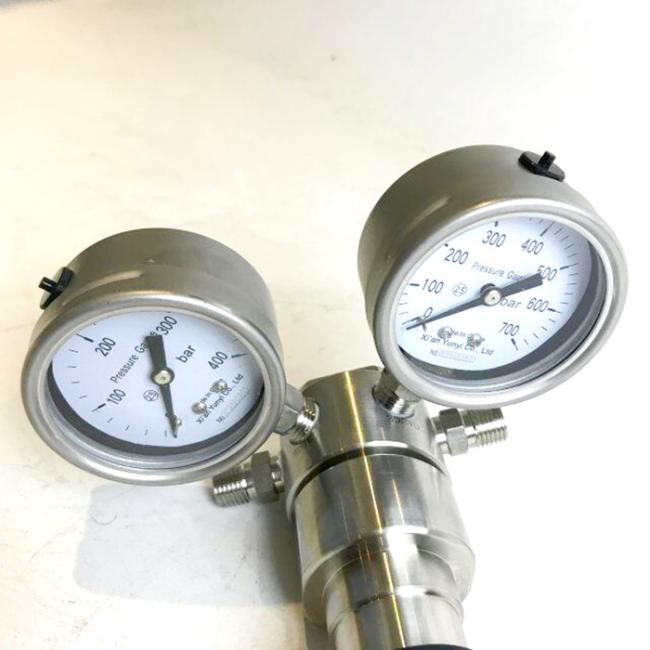

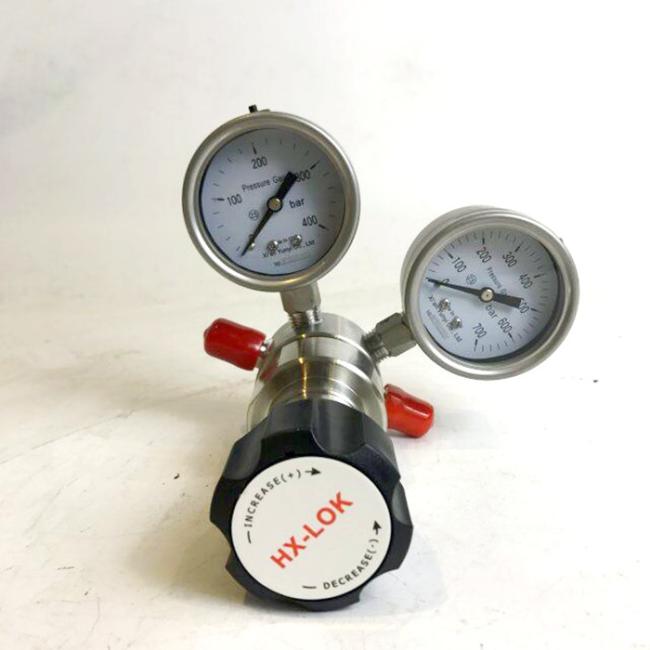

Detailed Images air pressure regulator

Specification gas pressure regulator

Diaphragm Hastelloy, 316L
Material Body: 316L, BrassCover: 316L, Brass
Filter 316L (10um)
Seat PCTFE, PTFE, Vespel
Spring 316L
Spool jack 316L





Features air gas pressure regulator

Maximum input pressure 500, 3000psig
Output pressure 0~25, 0~50, 0~100, 0~250, 0~500psig
Safety test pressure 1.5 times the maximum input pressure
Applicable temperature -40F~+165F (-40~74ºC)
Leak rate 2*10-8 atm cc/sec He
Cv value 0.08
