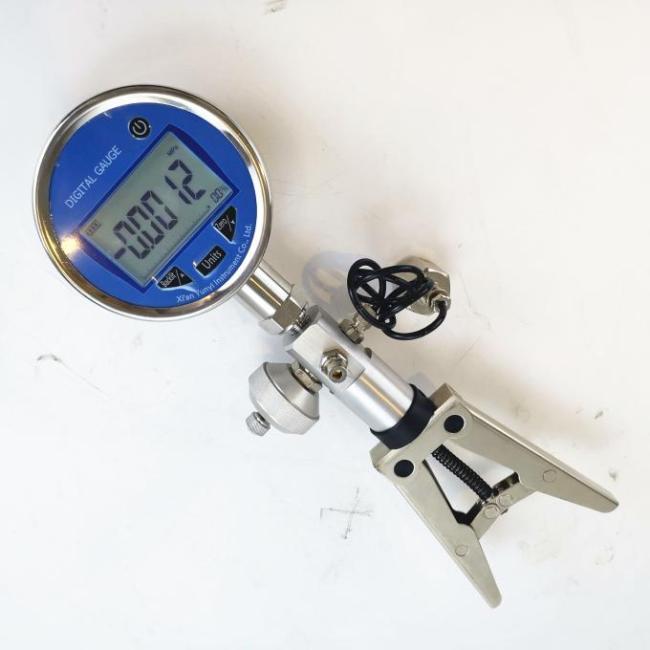

16bar Pneumatic Air Digital Pressure Gauge Calibrator Hand Pump High Accuracy
Pneumatic Pressure Hand Pump High Accuracy 16bar Air Digital Pressure Gauge Calibrator
Description:
Y039 handhold pressure pumpis a type of hand-operated gas pressure source. Types of pressure gauges, pressure gauge calibration test pumps for industrial processes on-site installation of pressure measurement instrumentation and control room can also be used to provide a source of pressure calibration. Inspection gauge pump it has a small, light weight, compact, easy to carry features gauge pump test
Specification:
| Model | Y039 |
| Pressure: | 0-1.6Mpa |
| Work Temperature:: | 0~40℃ |
| Relative humidity | ≤100% |
| Weight: | ≤0.8Kg |
| Gauge joint thread: | M14 x 1.5 internal thread (exports by 1/4 NPT), high pressure hose joint thread: M20 x 1.5 internal thread (exports by 1/2 NPT) |
Pressure range: -0.1 ~ 0MPa 0 ~ 250MPa (optional)
Accuracy : 0.4, 0.2, 0.1, 0.05
Thread : M20 * 1.5 or as request
Display: 5-digit dynamic display + simulated light bar instructions
Overload pressure: 1.5-3 times the range, depending on the measurement range
Shutdown current: less than 10 microamps
Power supply: 3.6V high-energy rechargeable battery
Medium temperature: -40 ℃ ~ 90 ℃
With backlit
Application:
1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing
,Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.
1 Micro-power, high accuracy, high-definition 5 digital LCD
2 Small size, simple operation
3 Intelligent calibration, linear repair, two seconds and zero magnetic induction pen
4 LCD display with dynamic pressure, visual display percentages pressure
5 Pressure unit: MPa,Kpa,PSI,mmHg,Bar,
kgf/cm2,inHg inH2O
6 Dynamic pressure measurement can be displayed online curve
7 A variety of additional features like RS485 output
