Gas Pressure Regulator Valve Oxygen Water Pressure Regulator 3000 Psi Back Pressure Regulator Valve
China Gas Pressure Regulator Valve Oxygen water pressure regulator 3000 psi back pressure regulator valve
Description
YR32 series back pressure regulator is with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

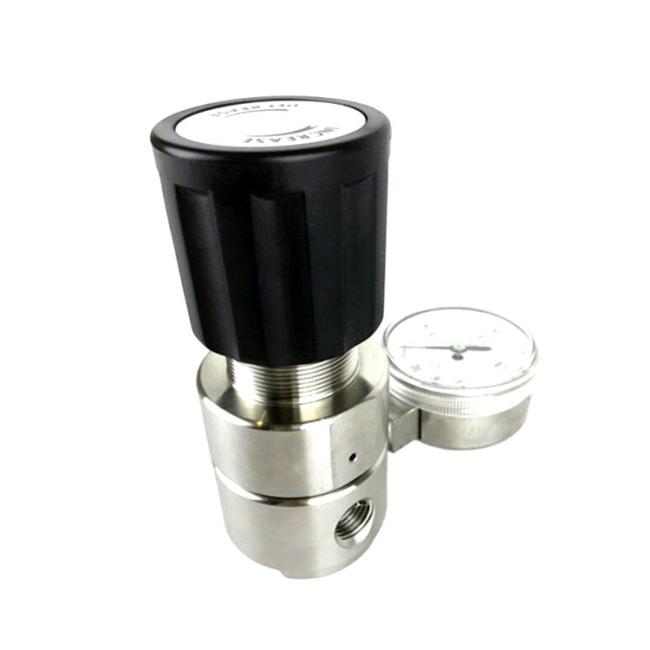

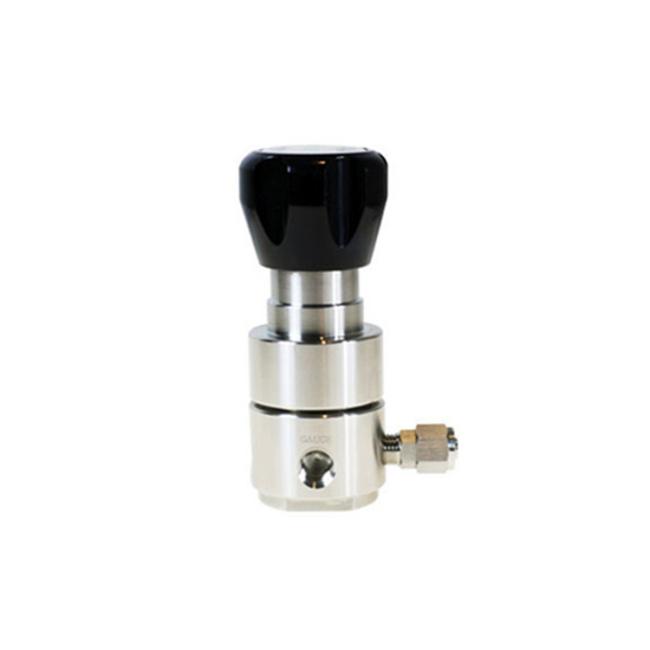

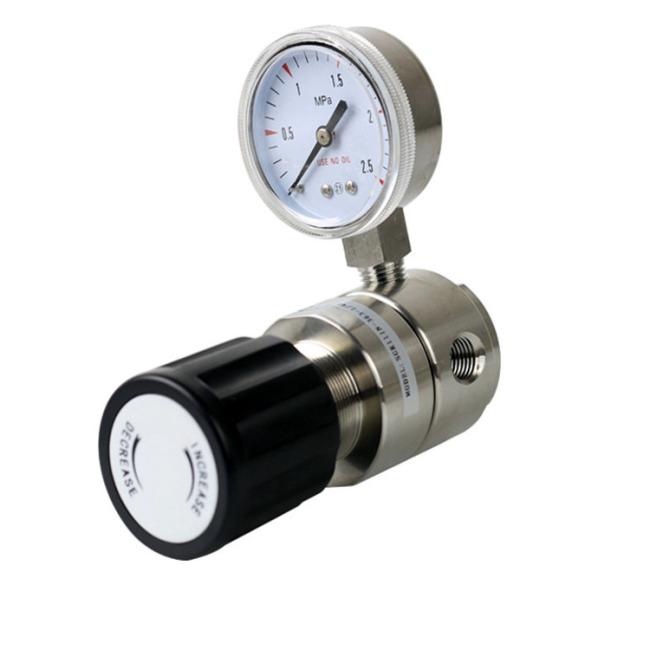

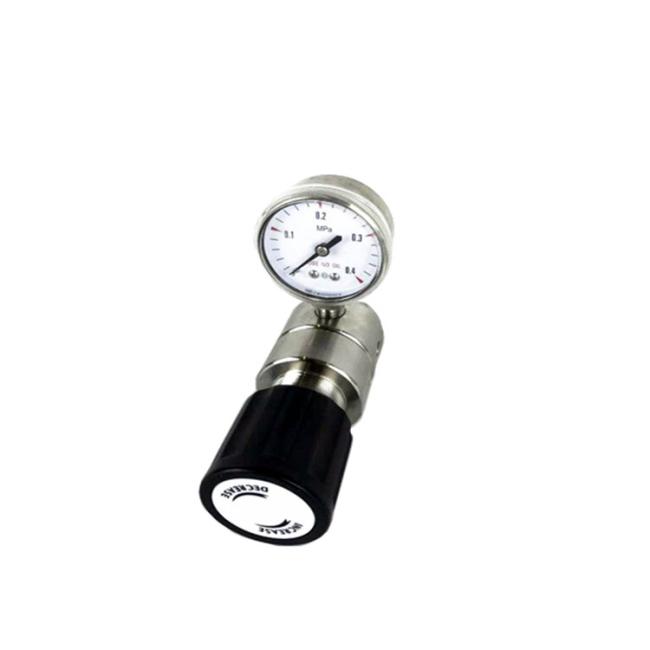

Detail Image
Specification
| Inlet pressure: 0-3000 psi |
| Safety testing pressure: 1.5 times of maximum inlet pressure |
| O-ring seal: Viton material |
| With one gauge or without gauge |
| Laboratory, Gas analysis test, Fluid control, Petrochemical industry, Test Equipment |
Features
1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3.. The internal structure easy to purge and with filter
4. Can use panel or wall mounting
Application
It's a normally-closed valve installed at the END of a piping system to provide an obstruction to flow and thereby regulate upstream (back) pressure. The back pressure regulator is called upon to provide pressure in order to draw fluid off the system.
