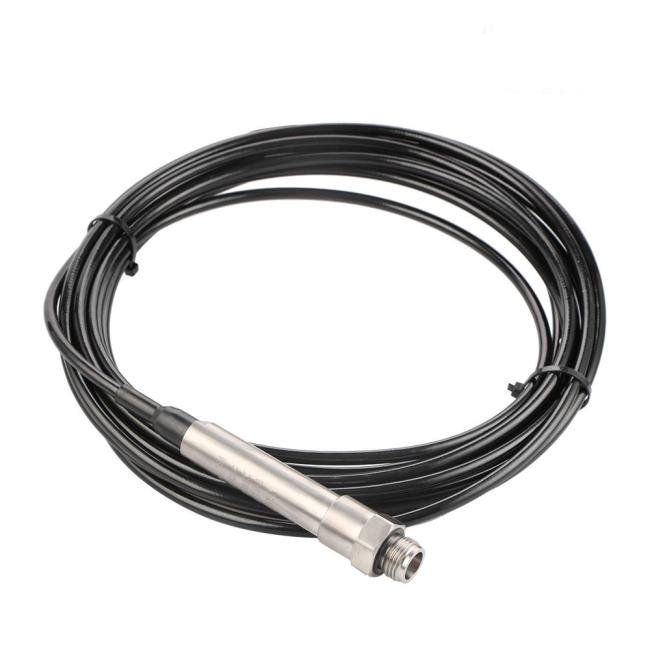

Titanium housing RS485 output water level probe water level sensor
APT330 ACME E+H Ceramic Capacitor Core Diving Water Level transmitter

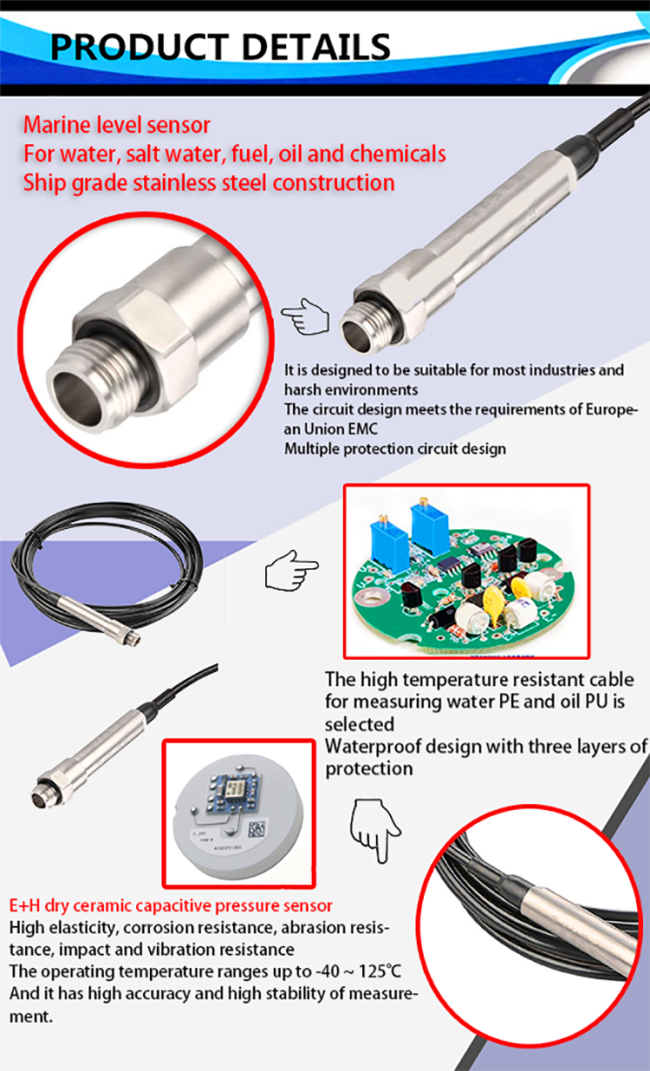

Product Description

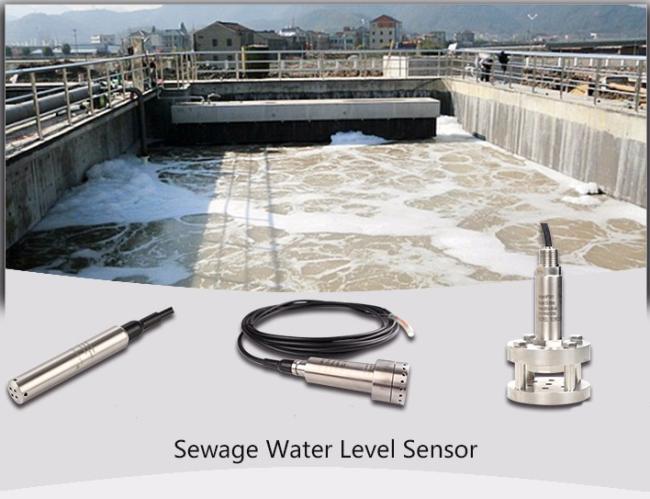

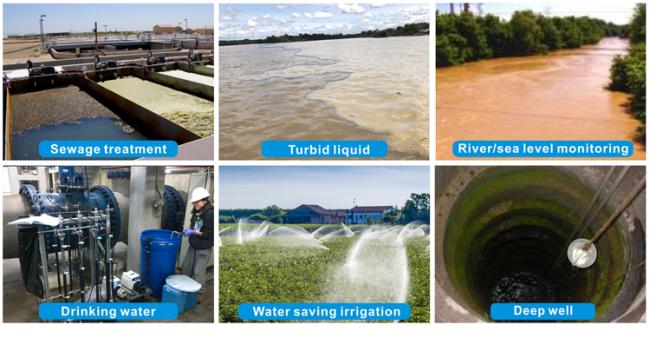

APT330 has the special structure and applications. It has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements. It is widely used in sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.This product has got intrinsic safety certification,explosion proof certification and CE certification.The lead of two-wire circumfluent is no-polarity.
*316L stainless steel diaphragm *MEAS TE pressure cell,0.25% F.S,0.5%FS *Diameter length only Ø19 mm *Level ranges from 50cm to 600m *Strong anti-interference ,long-term stability *IP68 full sealed plastic waterproof design *Wide range,available to Gauge,Absolute and sealed gauge type *-35°C~125 °C Wide working temp scope *Long time working at low temperate -30°C *EMI/RFI Rejection *Over voltage ,Reverse Polarity and short circuit protection *Customers can customize PU,PE or PTFE cable lengths
*316L stainless steel diaphragm
*MEAS TE pressure cell,0.25% F.S,0.5%FS
*Diameter length only Ø19 mm
*Level ranges from 50cm to 600m
*Strong anti-interference ,long-term stability
*IP68 full sealed plastic waterproof design
*Wide range,available to Gauge,Absolute and sealed gauge type
*-35°C~125 °C Wide working temp scope
*Long time working at low temperate -30°C
*EMI/RFI Rejection *Over voltage ,Reverse Polarity and short circuit protection
*Customers can customize PU,PE or PTFE cable lengths
Size Information
Manufacture Specification
Ambient Temperature: 25°C (unless specified)
|
Parameter
|
Data
|
||||||
|
Pressure Range
|
0~0.01....10MPa / 0-0.5M.......500mH2O
|
||||||
|
Pressure type
|
gauge (G), absolute (A)
|
||||||
|
Overpressure
|
200%FS
|
||||||
|
Burst pressure
|
300%FS
|
||||||
|
Electronic Wire
|
2 Wires
|
3 Wires
|
|||||
|
Output signal
|
4~20mA
|
0~5VDC
|
1~5VDC
|
0~10VDC
|
0.5~4.5VDC
|
0.5~4.5 V radio metric
|
RS485 Modbus RTU
|
|
Power Supply
|
12 ~ 30VDC, typical value: 24VDC
|
10~30 VDC
|
10~30VDC
|
12~30VDC
|
5 V DC
|
5 V DC±5%
|
10-30VDC╱
3-5VDC |
|
Accuracy
(including: nonlinearity, repeatability, hysteresis, zero drift, full drift) |
≤0.1%FS ≤0.15% ≤0.2%FS ≤0.25%FS(typ.) ≤0.5%FS(max.)
|
||||||
|
Long-term stability
|
≤0.2%FS/year
|
||||||
|
Working Temp
|
−25℃~85℃ −40℃~100℃(Customized)
|
||||||
|
Storage Temp
|
−40℃~125℃
|
||||||
|
Temperature Compensation
|
-10℃~80℃ (Standard)
|
||||||
|
Temp.coefficient of zero
|
±0.1%FS/°C
|
||||||
|
Temp.coefficient of span
|
±0.05%FS/°C
|
||||||
|
Insulating resistance
|
100MΩ@250VDC
|
||||||
|
Medium compatible
|
Water or Compatible with 316L Stainless Steel
|
||||||
|
Short circuit protected
|
Yes
|
||||||
|
Reverse polarity protection
|
Yes
|
||||||
|

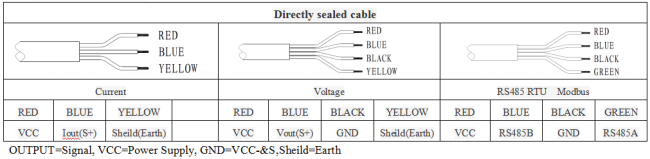

Electronic connection
|
Fixed cable and water proof IP68
|
||||||
|
Pressure interface
|
Gage pressure; Sealed gage and absolute opional
|
||||||
|
Material of pressure membrane
|
316L stainless steel
|
||||||
|
Response time(10%~90%)
|
≤10msec(Rises to 90%FS)
|
||||||
|
Vibration Shock
|
10g/5~2kHz,axes X/Y/Z/20g half sine 11ms
|
||||||
|
Water Proof
|
IP68
|
||||||
|
Cable optional
|
PE cable( Water proof ); PUR cable( Oil Proof ); PTFE Cable( Anti-Corrosive)
|
||||||
|
Certificate approving
|
CE Certificate available.
|
||||||
|
EMC Standard
|
EN 61326-1:2013; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1
|
||||||
|
Weight
|
Net weight is about 0.35KG, Full Packing weight is about 1.0KG (Included 2 Meters Cable)
|
||||||

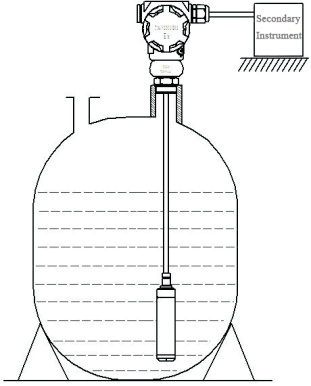

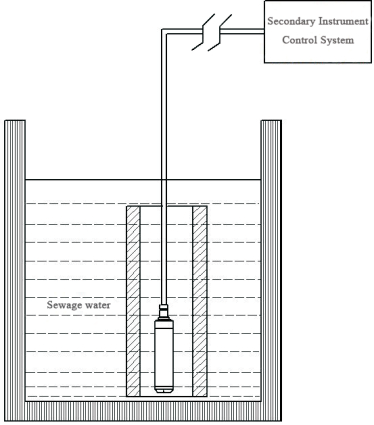

Schematic diagram of common installation method
1.deep well level measurement
4.muddy liquid level measurement
7.water diversion project
production process
Packaging&Shipping
Inquiry information
In order to recommend you the most suitable pressure transmitter and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, thanks !
FAQ
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, TUV-CE and ROSH,we could send the certification test of our company to you.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
Q. How to order?
A. In order to send you correct solution and best offer, please provide the following information when send inquiry, thanks !
1. What is the process medium? Water, oil or others.
2. Measure range: 0-5m or..?
3. Output signal:4-20mA, RS485 or..?
4. Require quantity?
