50m 300m Ultrasonic Sensor Transmitter Handheld water level sensor using ultrasonic
Price:
Negotiable
MOQ:
1Piece
Delivery Time:
7work days
Brand:
ACMESENSOR
Product Description
AUT704 Handheld Underwater Ultrasonic Level Sensor
Handheld Underwater Ultrasonic Level Sensor
Introduction of the ultrasonic level sensor
♦ The instrument uses international advanced technology and has perfect functions of depth measurement, controlment, data transmission and manmachine communication.
♦ It is a combination of ultrasonic sensor,ultrasonic servo circuit, temperature compensation sensor and compensation circuit unit.
Features
Long using life
High reliability and precision
Convenient to use and operate

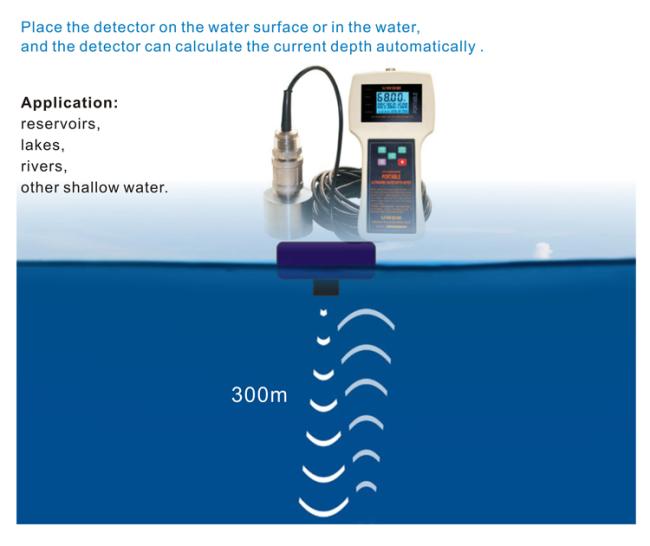

Widely used in hydrographic surveying, hydropower plant, reservoir, shallow seas, lakes, rivers surveying and water environment
monitoring
Specifications
| Range | 50-300m(Customize) |
| Blind | 800-1200mm(according to range) |
| Accuracy | ±0.5%F·S(default) |
| Output signal | 4~20mA, RS485 |
| Application medium | Flesh water, sea water |
| Operation temperature | 0~40°C(sensor),-10°C~50°C(instrument) |
| Sensor Cable | standard 10m(Customizable:20m,30m,50m) |
| Display mode | multi information and large screen LCD display |
| Keyboard | Five light touch buttons |
| Mounting model |
Instrument: hand-held portable Sensor: Thread |
| charger | input voltage:110-240VAC 50/60Hz output voltage:12.6VDC 350mA |

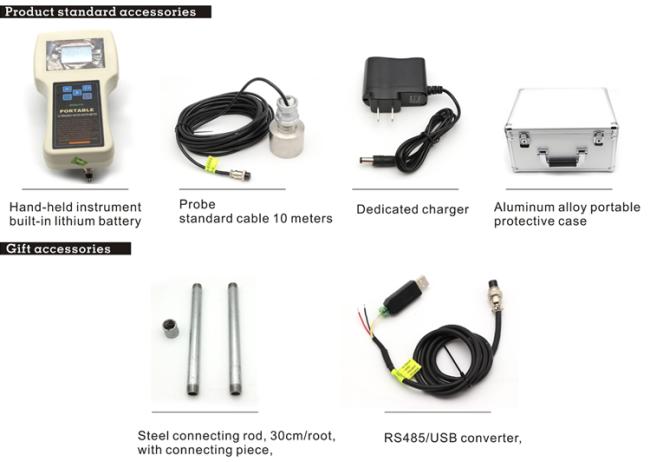

Accessories

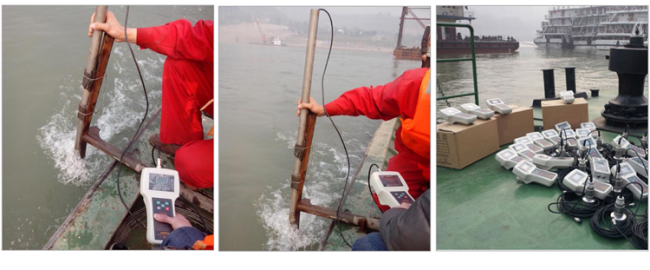

Successful Case

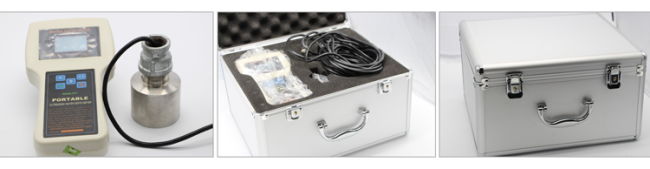

Package&Shipping
- Standard export package: each unit has individual box and all boxes are packed in standard packages
- As the clients requirement
