Underwater Ultrasonic Level Transducer Ultrasonic Water Depth Sensor 4 20mA For River Sediment

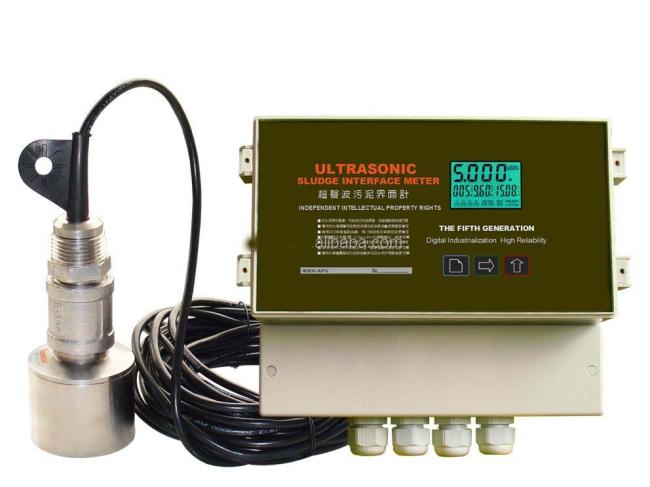

AUT705 RS485 4-20mA ultrasonic depth sensor underwater river sediment measure
RS485 4-20mA ultrasonic depth sensor underwater river sediment measure
Introduction of the ultrasonic level sensor
The AUT705 ultrasonic water interface meter uses reliable principle of ultrasonic echo measurement. The emitted energy of ultrasonic transmitter can adjust automatically s the energy. It is easy to use and suitable for different media and measurement range. With advanced circuit design software algorithm, it can eliminate on-site interference and make the measurement accurate.
Features
Large LCD display
Multi-information LCD display
Easy to operate
4-20mA current output isolation
Optional field bus interface
Alarm functions of upper, lower limits and breakdown, electric relay output
Application
Waterworks: sedimentation basin
Electricity Industry: mortar sedimentation basin
Ore-washing plant: sedimentation basin
Sewage plant: primary settling tank, secondary sedimentation tank, concentrated tank, etc.
Specifications
| Item | specification |
| Range | 5m,10m,15m,20m(customizable) |
| Blind | ≤500mm,or default |
| Draught | Suggestion draft ≥500mm |
| Accuracy | ±1%F·S(at20°C water,standard area) |
| Output supply | 4~20mA,RS485,Upper and lower relay |
| Display resolution | Min=1mm,Max=10mm |
| Display model | Multi-information and backlight LCD display |
| Keyboard | Three light touch buttons |
| Operation temperature | Sensor :0~40°C;instrument: -10°C~50°C |
| Power supply | AC220V/50Hz or DC24V/300mA |
| Line way | Instrument :standard connector,sensor down-lead: standard 10m |
| Defend grade | Sensor :IP68; Instrument:IP66 |
Successful Case
Package&Shipping
- Standard export package: each unit has individual box and all boxes are packed in standard packages
- As the clients requirement
