D50084 PLATE Case parts580SD 580C 584D 580D 585D 586D 480C 584E 580F 585E 480D 586E 480E 580G 480F
Price:
Negotiable
MOQ:
10 Pcs/Accept trial order
Delivery Time:
Within 5-15 days after getting your desposit
Brand:
OUB
Product Description
1. Product Details
| Part NO. | D50084 |
| Machine |
CASE |
| Model | 580SD 580C 584D 580D 585D 586D 480C 584E 580F 585E 480D 586E 480E 580G 480F |
| Size | OEM Standard |
| Material | HQC,HQP,HQE |
| Color | Silver Gray |

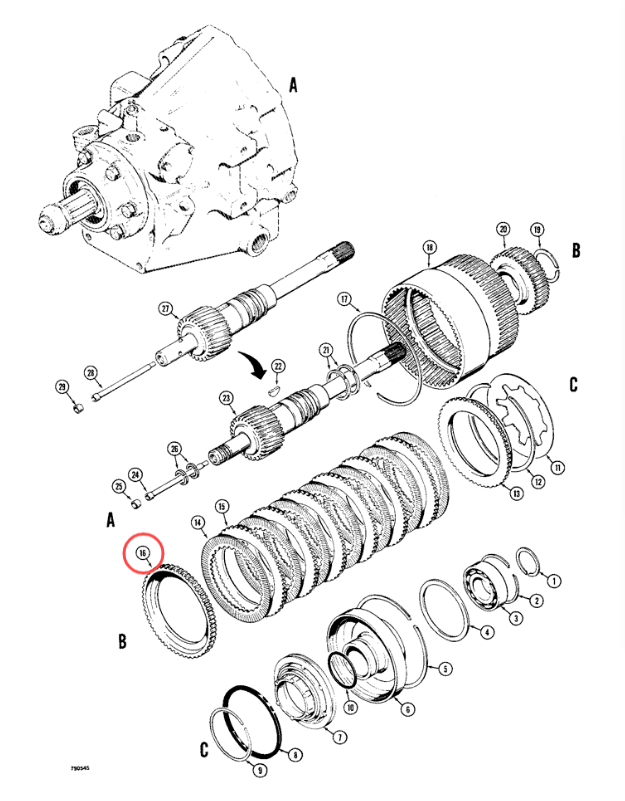

2. D50084 ON GROUP:
| Pos. | Part No | Qty | Parts name |
| 1 | D50042 | [1] | RING |
| 2 | D50043 | [1] | RING |
| 3 | D50044 | [1] | BALL BEARING |
| 4 | D50045 | [1] | WASHER |
| . . | D83123 | [1] | GEAR, RING |
| 5 | D50046 | [1] | RING |
| 6 | D50075 | [1] | CYLINDER |
| 7 | D50076 | [1] | PISTON |
| 8 | D50077 | [1] | RING |
| 9 | D50078 | [1] | RING |
| 10 | D50079 | [1] | O-RING |
| 11 | D50047 | [1] | BELLEVILLE WASHER |
| 12 | D50048 | [1] | CIRCLIP |
| . . | D50024 | [1] | CLUTCH |
| 13 | D50081 | [1] | PLATE |
| 14 | D50082 | [7] | PLATE |
| 15 | D50083 | [6] | PLATE |
| 16 | D50084 | [1] | PLATE |
| 17 | D50051 | [1] | SNAP RING |
| 17 | D78397 | [1] | RING |
| 17 | D50052 | [1] | RING |
| 17 | D78398 | [1] | RING |
| 17 | D50053 | [1] | RING |
| 18 | D50054 | [1] | GEAR |
| 19 | D50049 | [1] | RING |
| 20 | D50050 | [1] | HUB |
| 21 | D50080 | [2] | RING |
| 22 | 126-124 | [1] | WOODRUFF |
| . . | D70666 | [1] | GEAR |
| 24 | D70667 | [1] | TUBE |
| 25 | D50086 | [1] | PLUG |
| 26 | D70668 | [2] | RING |
| . . | D50025 | [1] | GEAR WHEEL |
| 28 | D50085 | [1] | TUBE |
| 29 | D50086 | [1] | PLUG |
| . . | D50023 | [1] | GASKET |

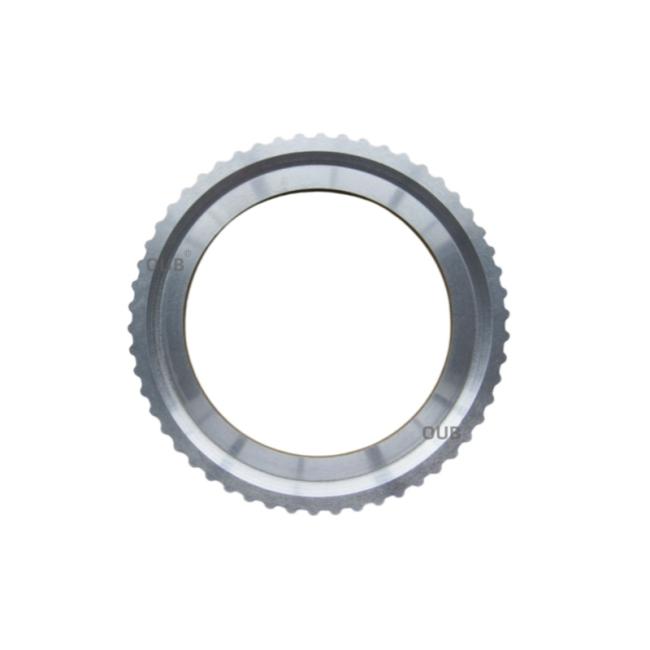

3. Picture details of D50084:
4. Part No.on the Group
| 100049A1 | 3125322R2 |
| 100050A1 | A188412 |
| 237017A1 | D50040 |
| 237021A1 | D50081 |
| 237023A1 | D50084 |
| 308029A1 | K963646 |
| 308030A1 |
5. Our advantages
- We are a factory and we also have our own sales team.
- We have original software system data to support which 100% accurate.
- We know how to protect your equipment with high-quality products and professional knowledge.
6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.
Q2. How many teeth of the friction?
A2. We can tell you the teeth qty if you offer the part No. .
Q3. Can you quote for only one part number?
A3. Of cause.We can check by a part no.or machine no.or size or picture.
Q4. Are you a factory or a trader?
A4. We are a factory and we also have our own sales team.
7. Exhibition & Warehous
Machine NO. ,Model No. Part No. , And More
