XKAH-00916 XKAH00916 FLOATING SEAL FOR HYUNDAI R110 R140 R180 R215 R250
1. Repair Seal Kit Details
| Part NO. | XKAH-00916 |
| Machine | HYUNDAI R110 R140 R180 R215 R250 |
| Size | OEM |
| Material | NBR/RUBBER |
| Oil seal type | FLOATING SEAL |

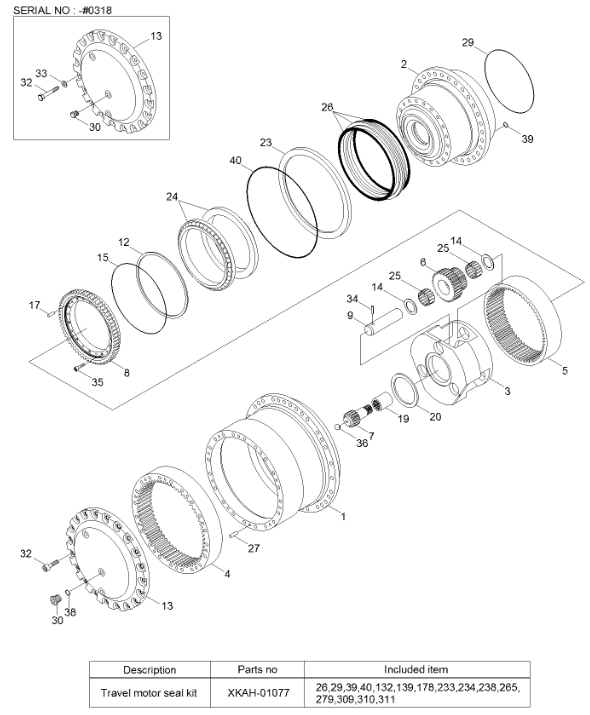

2. XKAH-00916 PART NO. ON TRAVEL REDUCTION GEAR :
| Pos. | Part No | Qty | Parts name |
| 19 | XKAH-00022 | [1] | COUPLING |
| 29 | XKAH-00028 | [1] | O-RING |
| 30 | XKAH-00032 | [3] | PLUG-PF |
| 36 | XKAH-00033 | [1] | BALL-STEEL |
| 39 | XKAH-00194 | [2] | O-RING |
| 33 | XKAH-00336 | [20] | WASHER-SPRING |
| 30 | XKAH-00338 | [3] | PLUG-PT |
| 40 | XKAH-00427 | [1] | O-RING |
| 35 | XKAH-00428 | [10] | BOLT-SOCKET |
| 34 | XKAH-00429 | [3] | PIN-PARALLEL |
| 32 | XKAH-00430 | [20] | BOLT-HEX |
| 27 | XKAH-00431 | [10] | PIN-PARALLEL |
| 24 | XKAH-00434 | [2] | BEARING-BALL |
| 23 | XKAH-00435 | [1] | SEAL-RING |
| 20 | XKAH-00436 | [2] | PLATE-THRUST |
| 17 | XKAH-00437 | [10] | PIN |
| 15 | XKAH-00439 | [1] | RING |
| 12 | XKAH-00442 | [1] | PIECE-DISTENCE |
| 7 | XKAH-00445 | [1] | GEAR-SUN |
| *-7. | XKAH-00901 | [1] | REDUCTION GEAR ASSY |
| *-71. | XKAH-00902 | [1] | HUB ASSY |
| N1. | XKAH-00903 | [1] | HUB |
| 4 | XKAH-00904 | [1] | RING GEAR(A) |
| *-72. | XKAH-00905 | [1] | SPINDLE ASSY |
| N2. | XKAH-00906 | [1] | SPINDLE ASSY |
| 8 | XKAH-00907 | [1] | COUPLING GEAR |
| *-73. | XKAH-00908 | [1] | CARRIER ASSY |
| 3 | XKAH-00909 | [1] | CARRIER |
| 6 | XKAH-00910 | [3] | CLUSTER GEAR |
| 9 | XKAH-00911 | [3] | SHAFT |
| 14 | XKAH-00912 | [6] | COLLAR-THRUST |
| 25 | XKAH-00913 | [6] | BEARING-NEEDLE |
| 5 | XKAH-00914 | [1] | RING GEAR(B) |
| 13 | XKAH-00915 | [1] | COVER |
| 26 | XKAH-00916 | [2] | SEAL-FLOATING |
| K. | XKAH-01077 | [1] | SEAL KIT |
| *-7. | XKAH-01627 | [1] | REDUCTION GEAR ASSY |
| *-71. | XKAH-01670 | [1] | HUB ASSY |
| N1. | XKAH-01671 | [1] | HUB |
| 4 | XKAH-01672 | [1] | RING GEAR(A) |
| 13 | XKAH-01674 | [1] | COVER |
| 26 | XKAH-01675 | [2] | SEAL-FLOATING |
| 32 | XKAH-01676 | [20] | SOKET BOLT |

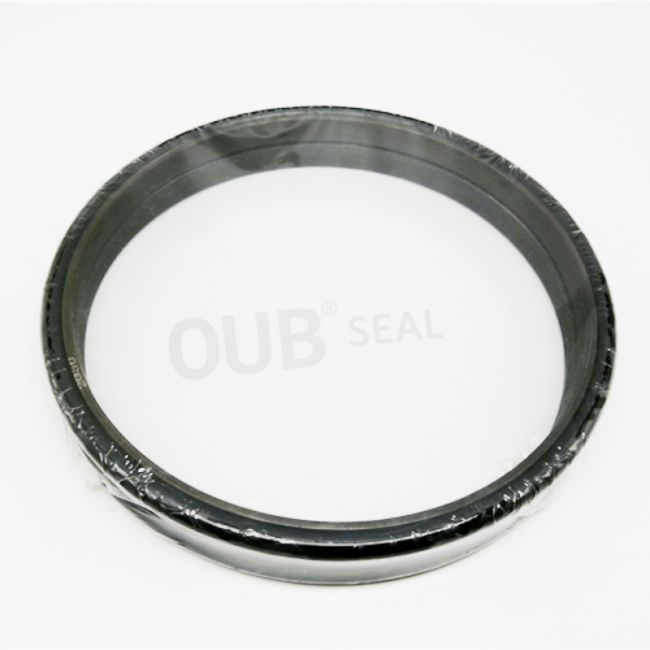

3. Picture viewing for XKAH-00916
4. FAQ
Q1. What kind of cylinder service kit do you have?
A1. We have cylinder kits such as boom,arm,bucket,blade lift,tilt,ripper,counter weigh,adjuster,positioning cylinder.
Q2. Why can't I find what I need on your website?
A2. There are too many product egories to upload to the website one by one.you can contact.
Q3. Can you quote for the size and picture?
A3. Of cause!We can check by a part no.or machine no.or size or picture.becuase we are professional.

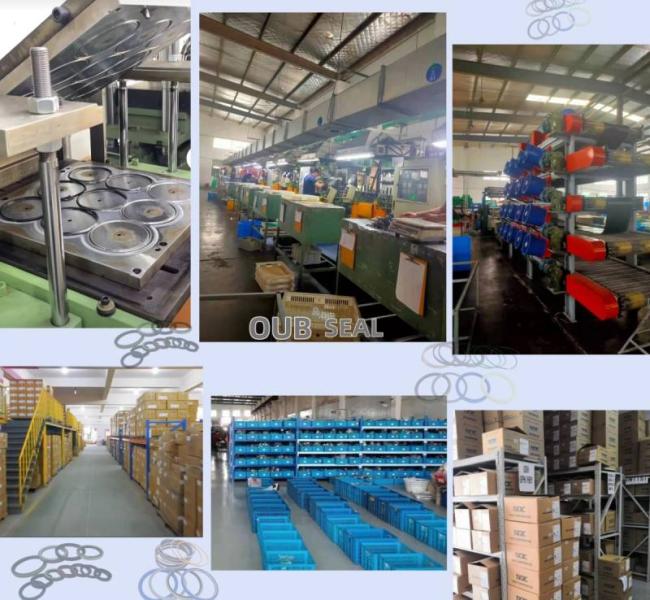

5. Exhibition & Factory & Warehous
