195-15-05672 1951505672 TRANSMISSION KIT;SERVICE KIT KOMATSU D375A-5D
1. Quick Details of lip seal 195-15-05672 :
| Part NO. | 195-15-05672 |
| Machine | D375A-5D |
| Size | OEM |
| Material | RUBBER,SILICON,FIBERGLASS |
| Oil seal type | SERVICE KIT,TRANSMISSION |
2. 195-15-05672 parts on group :
| PART NO. | PART NAME | QTY |
| 195-15-05672 | SERVICE KIT | 1 |
| 145-15-42810 | RING | 1 |
| 145-15-42820 | RING | 1 |
| 195-15-49210 | RING | 1 |
| 175-15-59250 | RING | 1 |
| 195-15-29220 | RING | 1 |
| 582-15-19250 | RING | 1 |
| 195-15-39210 | RING | 1 |
| 175-15-59270 | RING | 1 |
| 195-15-29220 | RING | 1 |
| 175-15-59240 | RING | 1 |
| 155-15-12820 | RING | 1 |
| 07000-72085 | O-RING | 2 |
| 07000-73045 | O-RING | 2 |
| 07000-73048 | O-RING | 2 |
| 07000-73028 | O-RING | 2 |
| 195-15-49630 | O-RING | 1 |
| 195-15-49620 | O-RING | 1 |
| 07000-72085 | O-RING | 1 |
| 07000-72080 | O-RING | 2 |
| 07000-73048 | O-RING | 2 |
| 07000-45310 | O-RING | 1 |

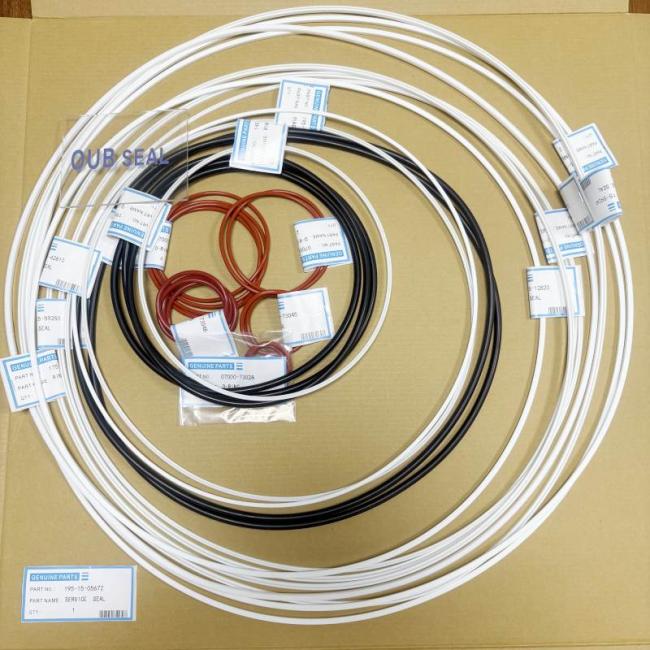

3. 195-15-05672 picture:
4. Service kit part no. :
| PART NO. | PART NO. | Part NO. |
| 195-15-05672 | 195-15-05713 | 195-15-05610 |
| 195-15-05680 | 195-15-05671 | 195-15-05601 |
| 195-15-05700 | 195-15-05670 | 195-15-05600 |
| 195-15-05710 | 195-15-05640 | 707-98-71020 |
| 195-15-05711 | 195-15-05630 | 707-99-64550 |
| 195-15-05712 | 195-15-05620 | 195-15-05900 |
5. FAQ
Q: What components does this kit include?
A: The Komatsu 195-15-05672 is a Transmission Service Kit for specific bulldozer models like the D375A-5D,
it typically includes the following components:
- O-RING, including the rubber o-ring, and the silicon o-ring,and the viton o-ring.
- Rings, different size of the OUT rings wihch the material is fiberglass.
Q: I want to know the functions of transmission kit,do you know that ?
A: Yes, the kit 195-15-05672 main functions include:
- Seal & Gasket Replacement – Prevents fluid leaks by replacing worn-out seals, O-rings, and gaskets
- Bearing & Bushings Renewal – Reduces friction and wear in moving parts.
- Clutch & Synchronizer Repair – Ensures smooth gear shifting by replacing damaged clutch plates or synchronizer rings.
- Preventing Further Damage – Extends transmission lifespan by addressing early signs of wear
Q: I see many white color rings in your picture , so what material is this ?
A: The material is Fiberglass or Glass Fiber,I'd love to show you the of fiberglass :
- High Strength-to-Weight Ratio: Stronger than many metals (per weight) but lightweight
- Tensile Strength: Comparable to steel, but more flexible.
- Stiffness: Moderate rigidity (can be adjusted with resin/fiber ratios).
Impact Resistance: Absorbs energy without permanent deformation.
Q: What is the difference of silicon o-ring and rubber o-ring?
- Temperature Resistance
- Silicone O-rings:Excellent high-temperature resistance (-60°C to 230°C / -76°F to 446°F).Performs well in extreme heat but can degrade at very high temps (>250°C) without proper reinforcement.
- Rubber O-rings:Nitrile (NBR): -40°C to 120°C (-40°F to 248°F).
- EPDM: -50°C to 150°C (-58°F to 302°F).
- FKM (Viton): -20°C to 200°C (-4°F to 392°F).
Winner: Silicone for extreme high & low temps.
2. Chemical Resistance
- Silicone O-rings:Good resistance to water, ozone, and UV light.Poor resistance to fuels, oils, acids, and solvents.
- Rubber O-rings:Nitrile (NBR): Excellent resistance to oils & fuels.
- EPDM: Resistant to water, steam, and mild chemicals.
- FKM (Viton): Excellent resistance to fuels, oils, acids, and harsh chemicals.
Winner: Rubber (NBR/FKM) for oil & chemical resistance.
