195-13-12711 1951312711 RING,RING FITS FOR KOMATSU D135A,D155AX,D355A,D455A,HD200,GD705R-1,WA480
Price:
Negotiable
MOQ:
10 Pcs/Accept trial order
Delivery Time:
Within 5-15 days after getting your desposit
Brand:
OUB
Product Description

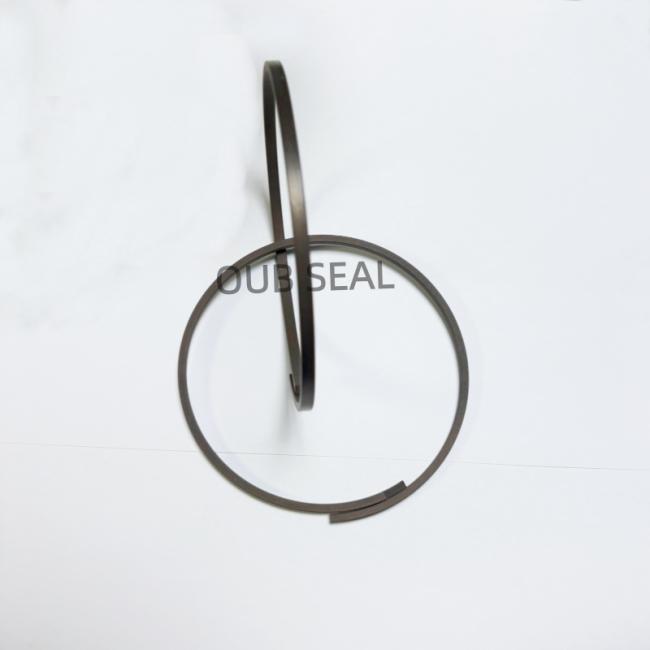

1. Quick Details of lip seal 195-13-12711 :
| Part NO. | 195-13-12711 |
| Machine | GD705R-1,D275A,D155AX |
| Size | OEM |
| Material | PTFE |
| Oil seal type | SEAL |

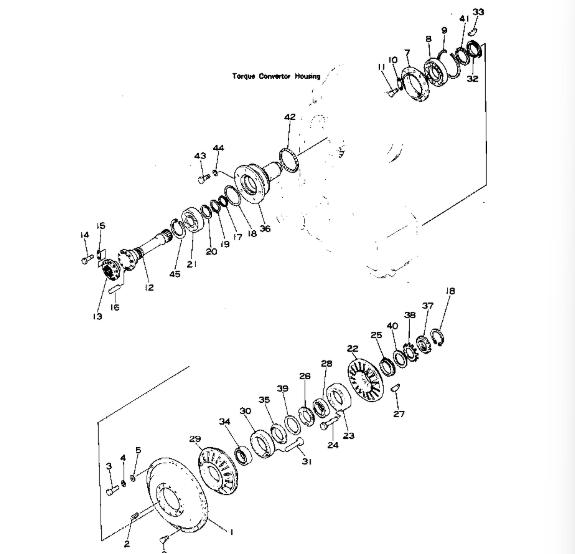

2. 195-13-12711 parts on group :
| NO. | PART NO. | PART NAME | QTY |
| 234-13-11000 | TORQUE CONVERTER A. | 1 | |
| 234-13-11110 | PUMP ASSEMBLY | 1 | |
| 1 | PUMP | 1 | |
| 2 | 01190-01008 | HELISERT | 12 |
| 3 | 01010-61035 | BOLT | 30 |
| 4 | 01602-01030 | WASHER | 30 |
| 5 | 01642-21016 | WASHER | 30 |
| 6 | 07040-11007 | PLUG | 2 |
| 7 | 234-13-11140 | RETAINER | 1 |
| 8 | 06032-00218 | BEARING | 1 |
| 9 | 281-13-11170 | RING | 1 |
| 10 | 281-13-11150 | LOCK | 6 |
| 11 | 01010-31022 | BOLT | 12 |
| 12 | 234-13-11653 | SHAFT | 1 |
| 13 | 234-13-11691 | BOSS | 1 |
| 14 | 01010-61225 | BOLT | 8 |
| 15 | 234-13-11661 | PLATE | 4 |
| 16 | 04020-01228 | PIN | 2 |
| 17 | 175-13-21720 | RING | 1 |
| 18 | 175-13-21760 | RING | 1 |
| 19 | 04064-06525 | RING | 1 |
| 20 | 175-13-21770 | SPACER | 1 |
| 21 | 06040-06313 | BEARING | 1 |
| 281-13-12101 | STATOR ASSEMBLY,FIRST | 1 | |
| 281-13-12211 | STATOR ASSEMBLY,FIRST | 1 | |
| 22 | 281-13-12111 | STATOR | 1 |
| 23 | RACE,OUTER | 1 | |
| 24 | RIVET | 20 | |
| 25 | 281-13-12141 | BUSHING | 1 |
| 26 | 281-13-12150 | BUSHING | 1 |
| 27 | 170-14-22691 | KEY | 1 |
| 28 | 281-13-12161 | WHEEL | 1 |
| 281-13-12301 | STATOR ASSEMBLY,SECOND | 1 | |
| 281-13-12411 | STATOR ASSEMBLY,SECOND | 1 | |
| 29 | STATOR | 1 | |
| 30 | RACE,OUTER | 1 | |
| 31 | RACE | 20 | |
| 32 | 281-13-12141 | BUSHING | 1 |
| 33 | 170-14-22691 | KEY | 1 |
| 34 | 281-13-12161 | WHEEL | 1 |
| 35 | 281-13-12340 | BUSHING,SECOND | 1 |
| 36 | 234-13-12521 | SHAFT | 1 |
| 37 | 281-13-11560 | NUT | 1 |
| 38 | 01658-27223 | WASHER | 1 |
| 39 | 281-13-12660 | PLATE | 1 |
| 40 | 281-13-12670 | PLATE | 1 |
| 41 | 281-13-12680 | SPACER | 1 |
| 42 | 195-13-12711 | RING | 1 |
| 43 | 01010-31235 | BOLT | 6 |
| 44 | 01602-01236 | WASHER | 6 |
| 45 | 04011-00140 | RING | 1 |
3. 195-13-12911 picture:
4. Service kit part no. :
| PART NO. | PART NO. | Part NO. |
| 195-13-12711 | 568-15-12840 | 195-49-34190 |
| 07146-02126 | 17M-15-49270 | 425-15-19250 |
| 07156-01315 | 14X-15-19530 | 14X-10-19220 |
| 07146-02136 | 14X-15-19520 | 04065-03515 |
|
705-17-03811 |
14X-30-15140 | UC1100159079 |
| 707-44-12180 | 113-15-12840 | 568-15-12830 |
5. FAQ
Q: Can I know what is PTFE material ?
A: Of course! The most widely recognized brand name for PTFE is Teflon.Let's break down what PTFE is, from a simple explanation to its fascinating details.
Key Properties (Why is it so special?)
- Extremely Low Friction: PTFE has one of the lowest coefficients of friction of any known solid material. This is what makes it so slippery and non-stick. Things just slide right off it.
- Excellent Chemical Resistance: It is almost completely inert. It doesn't react with most chemicals, including strong acids, bases, and solvents. This makes it ideal for containers and pipes in chemical plants.
- High Heat Resistance: It can operate continuously at temperatures up to 260°C (500°F) and for short periods at much higher temperatures without degrading.
- Excellent Electrical Insulation: It is a great electrical insulator, even at high frequencies, making it perfect for wiring in aerospace and computer applications.
- Hydrophobic: It repels water completely. Water beads up and rolls off its surface.
- Non-Toxic: In its solid form, it is biologically inert, which is why it's approved for use in medical implants and food processing equipment.
Q: How to determine whether this PTFE is good or bad ?
A: Here are some tips :
- Color and Purity: High-quality virgin PTFE should be a clean, uniform white. Any discoloration, cloudiness, or inconsistent tones could indicate that the material contains reprocessed scrap or impurities.
- Surface Finish: The surface should be smooth, consistent, and free of defects like cracks, scratches, voids, or burrs. These imperfections can lead to premature wear and tear.
- Dimensional Accuracy: Good PTFE parts will meet precise dimensional tolerances. Use calipers or micrometers to check that the inner diameter, outer diameter, and wall thickness are consistent and match the manufacturer's specifications.
6.Exhibition & Warehous
Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
