14X-15-19210 14X1519210 RING,SEAL KOMATSU D85EX,WA500-7
Price:
Negotiable
MOQ:
10 Pcs/Accept trial order
Delivery Time:
Within 5-15 days after getting your desposit
Brand:
OUB
Product Description
1. Quick Details of seal 14X-15-19210 :
| Part NO. | 14X-15-19210 |
| Machine | D85EX,WA500-7 |
| Size | OEM |
| Material | PTFE |
| Oil seal type | RING,SEAL |

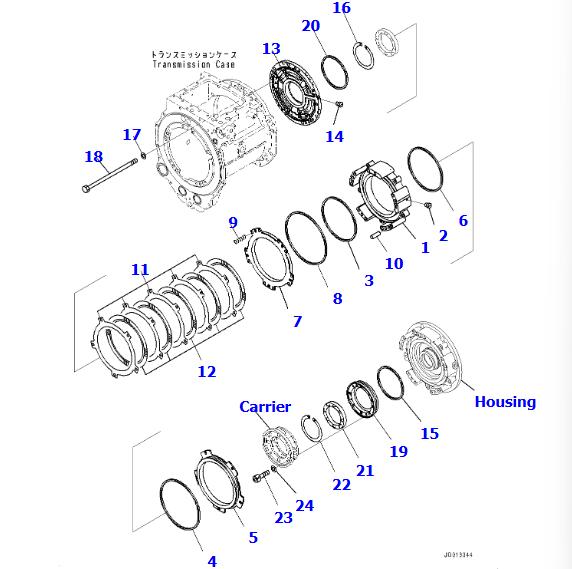

2. 14X-15-19210 parts on group :
| NO. | PART NO. | PART NAME | QTY |
| 154-22-60060 | Power Train Assembly | 1 | |
| 154-15-61002 | Transmission Assembly | 1 | |
| 1 | 154-15-61171 | Housing | 1 |
| 2 | 145-14-11320 | Plug | 1 |
| 3 | 113-15-12870 | Seal Ring, (Kit : K02) | 1 |
| 4 | 562-15-19220 | Seal Ring, (Kit : K02) | 1 |
| 5 | 154-15-62740 | Piston | 1 |
| 6 | 113-15-12870 | Seal Ring, (Kit : K02) | 1 |
| 7 | 154-15-62730 | Piston | 1 |
| 8 | 144-15-22881 | Seal Ring, (Kit : K02) | 1 |
| 9 | 145-14-12780 | Spring | 10 |
| 10 | 04020-01434 | Pin, Dowel | 2 |
| 11 | 425-15-22820 | Plate | 5 |
| 12 | 424-15-12711 | Disc | 5 |
| 13 | 154-15-61181 | Housing | 1 |
| 14 | 175-15-11230 | Plug | 1 |
| 15 | 14X-15-19210 | Seal Ring | 1 |
| 16 | 04077-00150 | Ring, Snap | 1 |
| 17 | 145-14-11571 | Washer | 4 |
| 18 | 232-15-11240 | Bolt | 4 |
| 19 | 134-15-62370 | Cover | 1 |
| 20 | 14X-15-19210 | Seal Ring | 1 |
| 21 | 06000-06924 | Bearing | 1 |
| 22 | 04070-00120 | Ring, Snap | 1 |
| 23 | 01252-41060 | Bolt | 4 |
| 24 | 01643-51032 | Washer | 4 |
| 25 | 154-15-61132 | Housing | 1 |
| 26 | 154-15-62350 | Carrier | 1 |

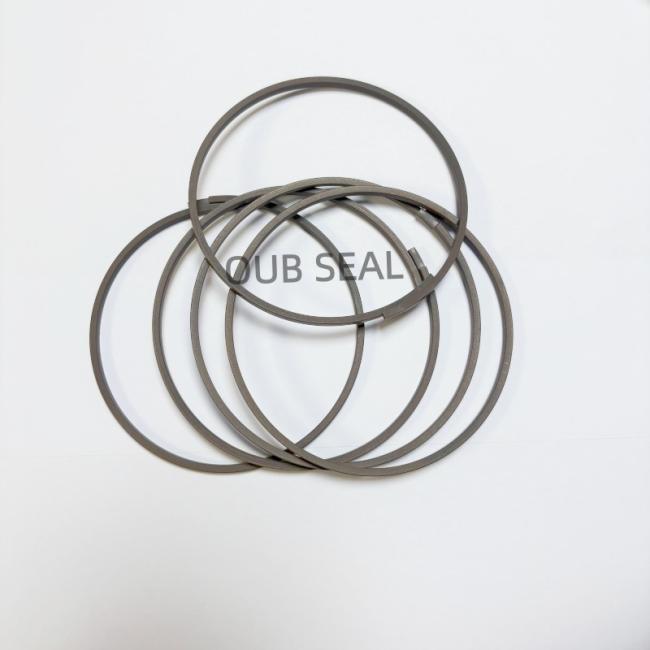

3. 14X-15-19210 picture:
4. Service ring part no. :
| PART NO. | PART NO. | Part NO. |
| 14X-15-19210 | 134-50-61160 | 134-32-61160 |
| 14X-15-19220 | 195-15-39510 | 134-54-62940 |
| 134-54-66230 | 07012-10140 | 04069-02202 |
| 134-50-62160 | 07145-10075 | 195-13-11720 |
|
134-54-62950 |
04064-09530 | 04065-01240 |
| 134-54-61280 | 04065-04818 | 04064-01030 |
5. FAQ
Q: Can I know what is PTFE material ?
A: Of course! The most widely recognized brand name for PTFE is Teflon.Let's break down what PTFE is, from a simple explanation to its fascinating details.
Key Properties (Why is it so special?)
- Extremely Low Friction: PTFE has one of the lowest coefficients of friction of any known solid material. This is what makes it so slippery and non-stick. Things just slide right off it.
- Excellent Chemical Resistance: It is almost completely inert. It doesn't react with most chemicals, including strong acids, bases, and solvents. This makes it ideal for containers and pipes in chemical plants.
- High Heat Resistance: It can operate continuously at temperatures up to 260°C (500°F) and for short periods at much higher temperatures without degrading.
- Excellent Electrical Insulation: It is a great electrical insulator, even at high frequencies, making it perfect for wiring in aerospace and computer applications.
- Hydrophobic: It repels water completely. Water beads up and rolls off its surface.
- Non-Toxic: In its solid form, it is biologically inert, which is why it's approved for use in medical implants and food processing equipment.
Q: How to distinguish the quality of PTFE material ?
A: Here are some tips :
- Color and Purity: High-quality virgin PTFE should be a clean, uniform white. Any discoloration, cloudiness, or inconsistent tones could indicate that the material contains reprocessed scrap or impurities.
- Surface Finish: The surface should be smooth, consistent, and free of defects like cracks, scratches, voids, or burrs. These imperfections can lead to premature wear and tear.
- Dimensional Accuracy: Good PTFE parts will meet precise dimensional tolerances. Use calipers or micrometers to check that the inner diameter, outer diameter, and wall thickness are consistent and match the manufacturer's specifications.
