14X-15-29230 14X1529230 RING,SEAL KOMATSU D61PX, D63E, D65E, D65EX
Price:
Negotiable
MOQ:
10 Pcs/Accept trial order
Delivery Time:
Within 5-15 days after getting your desposit
Brand:
OUB
Product Description
1. Quick Details of seal 14X-15-29230 :
| Part NO. | 14X-15-29230 |
| Machine | D61PX, D63E, D65E, D65EX |
| Size | OEM |
| Material | PTFE |
| Oil seal type | RING,SEAL |

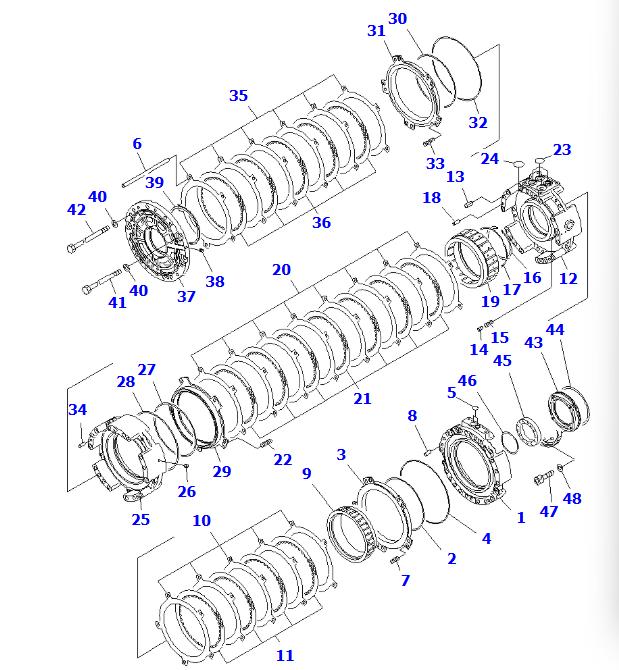

2. 14X-15-29230 parts on group :
| NO. | PART NO. | PART NAME | QTY |
| 134-15-71001 | TRANSMISSION ASSEMBLY | 1 | |
| 1 | 14X-15-21150 | HOUSING | 1 |
| 2 | 124-15-41910 | RING (K2) | 1 |
| 3 | 14X-15-22750 | PISTON | 1 |
| 4 | 569-15-12860 | RING | 1 |
| 5 | 07000-72020 | O-RING (K2) | 2 |
| 6 | 238-15-11290 | PIN | 5 |
| 7 | 145-14-12790 | SPRING¤ (L= 59.0) | 5 |
| 8 | 04020-01228 | PIN,DOWEL | 2 |
| 9 | 14X-15-22640 | RING GEAR | 1 |
| 10 | 14X-15-22780 | PLATE | 5 |
| 11 | 14X-15-22710 | DISC | 4 |
| 12 | 14X-15-21160 | HOUSING | 1 |
| 13 | 569-15-41310 | SLEEVE | 14 |
| 14 | 287-15-15360 | PISTON | 1 |
| 15 | 700-80-51390 | SPRING | 1 |
| 16 | 04071-00145 | RING | 1 |
| 17 | 14X-15-29220 | SEAL RING (K2) | 1 |
| 18 | 04020-01228 | PIN | 2 |
| 19 | 14X-15-22661 | RING GEAR | 1 |
| 20 | 14X-15-22780 | PLATE | 8 |
| 21 | 14X-15-22710 | DISC | 7 |
| 22 | 145-14-12780 | SPRING | 5 |
| 23 | 07000-73030 | O-RING (K2) | 3 |
| 24 | 07000-73035 | O-RING (K2) | 1 |
| 25 | 14X-15-21170 | HOUSING | 1 |
| 26 | 145-14-11320 | PLUG | 1 |
| 27 | 103-15-12820 | RING (K2) | 1 |
| 28 | 124-15-41920 | RING (K2) | 1 |
| 29 | 14X-15-22740 | PISTON | 1 |
| 30 | 124-15-41910 | RING (K2) | 1 |
| 31 | 14X-15-22770 | PISTON | 1 |
| 32 | 113-15-12870 | RING (K2) | 1 |
| 33 | 14X-15-12910 | SPRING | 5 |
| 34 | 04020-01228 | PIN,DOWEL | 2 |
| 35 | 14X-15-22780 | PLATE | 6 |
| 36 | 14X-15-22710 | DISC | 5 |
| 37 | 14X-15-21180 | HOUSING | 1 |
| 38 | 175-15-11230 | PLUG | 1 |
| 39 | 14X-15-29230 | SEAL RING (K2) | 1 |
| 40 | 145-14-11571 | WASHER | 14 |
| 41 | 144-15-21191 | BOLT | 3 |
| 42 | 155-15-11191 | BOLT | 11 |
| 43 | 14X-15-22371 | COVER | 1 |
| 44 | 14X-15-29230 | SEAL RING (K2) | 1 |
| 45 | 06000-06917 | BEARING | 1 |
| 46 | 04064-08530 | RING | 1 |
| 47 | 01252-70860 | BOLT | 4 |
| 48 | 01643-50823 | WASHER | 4 |
3. 14X-15-29230 picture:
4. Service ring part no. :
| PART NO. | PART NO. | Part NO. |
| 14X-15-29230 | 205-30-00151 | 134-32-61160 |
| 14X-15-29220 | 14X-54-36460 | 134-54-62940 |
| 14Y-22-23310 | 14X-54-38970 | 04069-02202 |
| 134-54-72780 | 14X-54-38960 | 195-13-11720 |
|
134-54-68550 |
14X-54-38880 | 04065-01240 |
| 134-54-61470 | 14X-54-36190 | 04064-01030 |
5. FAQ
Q: Can I know what is PTFE material ?
A: Of course! The most widely recognized brand name for PTFE is Teflon.Let's break down what PTFE is, from a simple explanation to its fascinating details.
Key Properties (Why is it so special?)
- Extremely Low Friction: PTFE has one of the lowest coefficients of friction of any known solid material. This is what makes it so slippery and non-stick. Things just slide right off it.
- Excellent Chemical Resistance: It is almost completely inert. It doesn't react with most chemicals, including strong acids, bases, and solvents. This makes it ideal for containers and pipes in chemical plants.
- High Heat Resistance: It can operate continuously at temperatures up to 260°C (500°F) and for short periods at much higher temperatures without degrading.
- Excellent Electrical Insulation: It is a great electrical insulator, even at high frequencies, making it perfect for wiring in aerospace and computer applications.
- Hydrophobic: It repels water completely. Water beads up and rolls off its surface.
- Non-Toxic: In its solid form, it is biologically inert, which is why it's approved for use in medical implants and food processing equipment.
Q: How to distinguish the quality of PTFE material ?
A: Here are some tips :
- Color and Purity: High-quality virgin PTFE should be a clean, uniform white. Any discoloration, cloudiness, or inconsistent tones could indicate that the material contains reprocessed scrap or impurities.
- Surface Finish: The surface should be smooth, consistent, and free of defects like cracks, scratches, voids, or burrs. These imperfections can lead to premature wear and tear.
- Dimensional Accuracy: Good PTFE parts will meet precise dimensional tolerances. Use calipers or micrometers to check that the inner diameter, outer diameter, and wall thickness are consistent and match the manufacturer's specifications.
