2854106 2854106 Excavator Spare Parts D155AX-5
1. Quick Details of seal 2854106 :
| Part NO. | 2854106 |
| Machine | D155AX-5 |
| Size | OEM |
| Material | fiberglass,NBR,SILICON, |
| Oil seal type | SERVICE KIT,TSTEERING |
2. 2854106 parts on group :
| NO. | PART NO. | PART NAME | QTY |
| 2854106 | SERVICE KIT | 2 | |
| 195-63-01441 | CYLINDER ASS'Y,L.H. | 1 | |
| 195-63-01440 | CYLINDER ASS'Y,L.H. | 1 | |
| 195-63-01451 | CYLINDER ASS'Y,R.H. | 1 | |
| 195-63-01450 | CYLINDER ASS'Y,R.H. | 1 | |
| 1 | 195-63-44640 | CYLINDER | 1 |
| 2 | 707-76-10120 | BUSHING | 1 |
| 3 | 07145-00100 | SEAL,DUST (KIT) | 2 |
| 4 | 07020-00675 | FITTING,GREASE | 1 |
| 5 | 07042-10108 | PLUG | 1 |
| 6 | 707-27-22320 | HEAD,CYLINDER | 1 |
| 6 | 707-27-22290 | HEAD,CYLINDER | 1 |
| 7 | 707-52-90850 | BUSHING | 1 |
| 7 | 07177-01135 | BUSHING | 1 |
| 8 | 707-51-11030 | PACKING,ROD (KIT) | 1 |
| 8 | 707-51-11110 | PACKING,ROD (KIT) | 1 |
| 8A | 707-51-11640 | RING,BUFFER (KIT) | 1 |
| 9 | 198-63-94170 | SEAL,DUST (KIT) | 1 |
| 9 | 07016-21109 | SEAL,DUST (KIT) | 1 |
| 10 | 07179-13126 | RING,SNAP | 1 |
| 11 | 07000-15220 | O-RING (KIT) | 1 |
| 12 | 07001-05220 | RING,BACK-UP (KIT) | 1 |
| 13 | 01010-62795 | BOLT | 6 |
| 14 | 01011-62705 | BOLT | 2 |
| 15 | 01643-32780 | WASHER | 8 |
| 15 | 01602-02783 | WASHER,SPRING | 8 |
| 16 | 195-63-44221 | ROD,PISTON | 1 |
| 17 | 707-76-10110 | BUSHING | 1 |
| 18 | 07145-00100 | SEAL,DUST (KIT) | 2 |
| 19 | 07020-00900 | FITTING,GREASE | 1 |
| 20 | 707-36-22050 | PISTON | 1 |
| 21 | 07000-B2085 | O-RING (KIT) | 1 |
| 21 | 07000-12085 | O-RING (KIT) | 1 |
| 22 | 07001-02085 | RING,BACK-UP (KIT) | 2 |
| 23 | 707-44-22290 | RING,PISTON (KIT) | 1 |
| 23 | 707-44-22280 | RING,PISTON (KIT) | 1 |
| 24 | 07155-02250 | RING,WEAR (KIT) | 1 |
| 25 | 707-40-22021 | SPACER | 2 |
| 26 | 01010-61455 | BOLT | 6 |
| 27 | 195-78-72450 | TUBE,L.H. | 1 |
| 27 | 195-78-72460 | TUBE,R.H. | 1 |
| 28 | 195-78-72430 | TUBE,L.H. | 1 |
| 28 | 195-78-72440 | TUBE,R.H. | 1 |
| 29 | 07000-13035 | O-RING (KIT) | 2 |
| 30 | 01010-81050 | BOLT | 4 |
| 31 | 01010-81060 | BOLT | 4 |
| 32 | 01643-51032 | WASHER | 8 |
| 32 | 01602-21030 | WASHER,SPRING | 8 |
| 33 | 07283-23450 | CLIP | 2 |
| 34 | 01010-81025 | BOLT | 4 |
| 35 | 01643-31032 | WASHER | 4 |
| 36 | 195-78-72550 | BRACKET,L.H. | 1 |
| 36 | 195-78-72560 | BRACKET,R.H. | 1 |
| 37 | 01643-31032 | WASHER | 4 |
| 38 | 01599-01011 | NUT | 4 |
| 39 | 707-88-33040 | CAP | 2 |
| 39 | 07378-11000 | HEAD | 2 |
| 40 | 07000-13032 | O-RING | 2 |
| 41 | 07371-31049 | FLANGE,SPLIT | 4 |
| 42 | 07372-21035 | BOLT | 8 |
| 43 | 01643-51032 | WASHER | 8 |

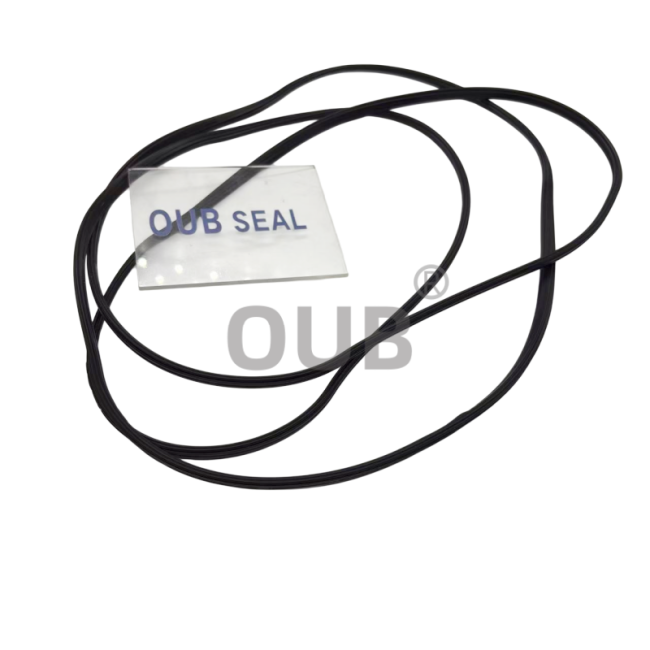

3. 2854106 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-99-45040 | 707-99-62120 | 707-99-44230 |
| 707-99-45220 | 707-99-64010 | 707-99-44270 |
| 707-99-45230 | 707-99-64030 | 707-99-44280 |
| 707-99-45250 | 707-99-64040 | 707-99-44290 |
| 707-99-45310 | 707-99-64050 | 707-99-44310 |
| 707-99-46030 | 707-99-64080 | 707-99-44340 |
| 707-99-46120 | 707-99-64120 | 707-99-44380 |
| 707-99-46130 | 707-99-64130 | 707-99-45040 |
| 707-99-46200 | 707-99-64150 | 707-99-45220 |
| 707-99-46210 | 707-99-64152 | 707-99-45230 |
| 707-99-46270 | 707-99-64180 | 707-99-45250 |
| 707-99-46290 | 707-99-64200 | 707-99-45310 |
| 707-99-46320 | 707-99-64230 | 707-99-46030 |
5. FAQ
Q: How do I install these large O-ring seals correctly?
A: First, clean the seal groove thoroughly. Lubricate the seal with clean hydraulic oil, then install it carefully to avoid twisting or pinching. Use a seal installation tool or your fingers (with no sharp tools) to seat it evenly in the groove.
Q:Will these seals fit my specific cylinder model?
A:These are sized for specific cylinder models based on groove dimensions. Please provide your cylinder’s part number or seal dimensions, and we can confirm compatibility.
Q: What causes these seals to fail prematurely?
A:Common causes include improper installation (twisting, pinching), dirt or debris in the groove, incompatible fluids, excessive heat, or damage during assembly.
