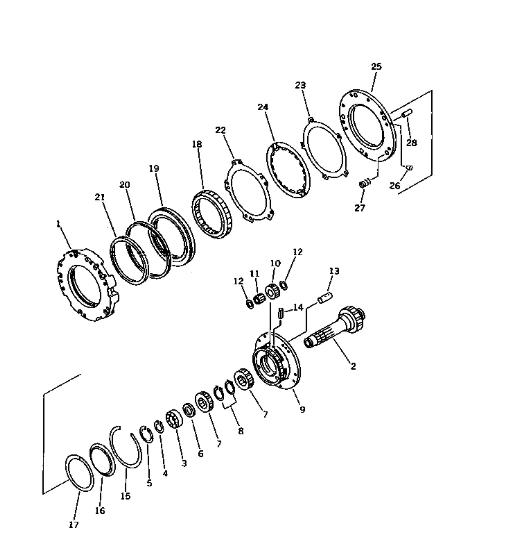

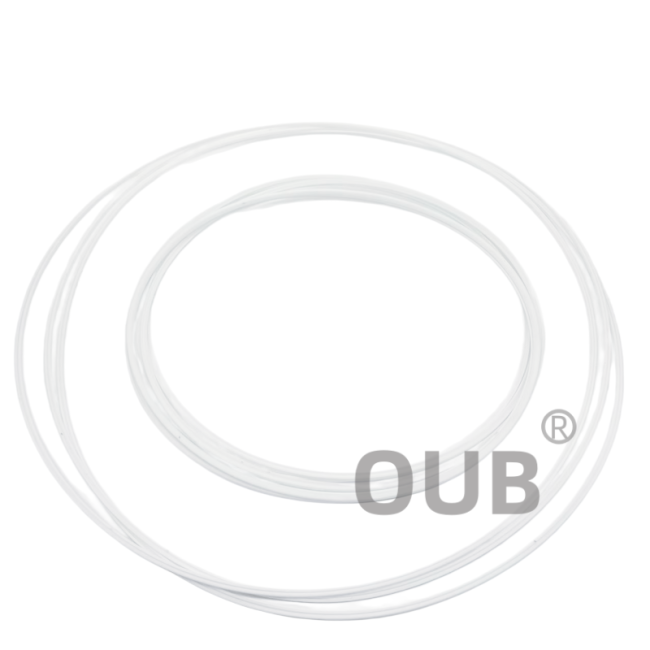

103-15-29210 1031529210 SEAL RING Spare Parts D21Q-5 D21PL-5

Q: the seal ring of 103-15-29210 has a front and a back, so how do you distinguish between the front and the back?
A: Because it is a directional hydraulic seal designed to trap oil pressure coming from one specific direction, installing it backward will cause the transmission to lose pressure, resulting in slow shifts or clutch slippage.To distinguish the front (pressure-facing side) from the back (non-pressure side), look for the following physical indicators:1. The Lip Edge and Taper (The Primary Method)If you look closely at the cross-section or profile of the ring, you will notice it is not perfectly flat or square on both sides. One edge will be slightly tapered or look like a cup/v-lip, while the other side is flat.The Front (Pressure Side): This side features an open channel, a groove, or a flared, thin lip edge. The hydraulic oil is supposed to enter this open lip side. When high-pressure oil hits it, it forces the thin lip to expand outward against the housing wall, creating a tight seal.The Back (Heel Side): This side is the thicker, completely flat, solid backing of the ring. It is designed to rest squarely against the back wall of the machined metal shaft groove to support the seal under pressure.



Q: What are the most common causes of gasket failure?
A: Common causes include poor surface preparation, uneven bolt torque, using the wrong gasket material for the fluid or temperature, and reusing old gaskets that have lost their elasticity.



Q: How long does a gasket typically last?
A: Under normal conditions with proper installation, a PTFE gasket can last the life of the component unless the joint is disassembled, as it resists degradation and compression set well.



Q: Can I reuse an old gasket?
A: No, it is never recommended to reuse a gasket. Once compressed by bolt torque, it develops a permanent set and cannot conform to the mating surfaces again, leading to leaks. Always use a new gasket during every assembly or rebuild.
