113-15-12870 1131512870 RING SEAL Parts Transmission Gasket Kit D65PX-15 S/N D65WX-15
1. Quick Details of seal 113-15-12870:
| Part NO. | 113-15-12870 |
| Machine | Low Ground Pressure |
| Size | OEM |
| Material | Glass-Filled PTFE |
| Type | GASKET |

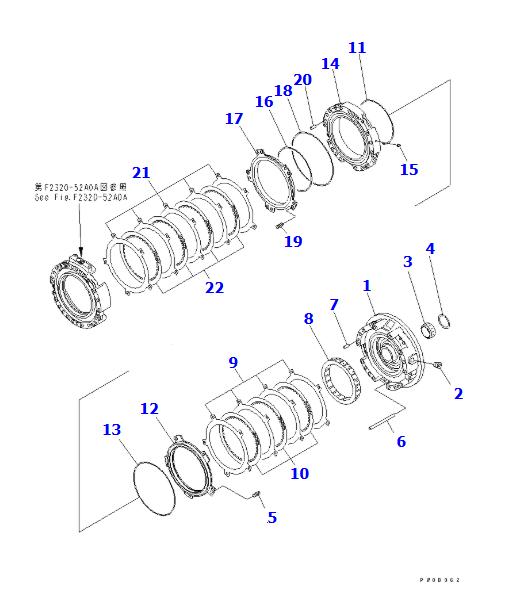

2. 113-15-12870 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 14X-15-21001 | TRANSMISSION ASSEMBLY | 1 |
| 2 | 14X-15-21130 | HOUSING | 1 |
| 3 | 07043-70415 | PLUG | 1 |
| 4 | 14X-15-29320 | BEARING | 1 |
| 5 | 714-12-19520 | RING,SNAP | 1 |
| 6 | 145-14-12790 | SPRING¤ (L= 59.0) | 5 |
| 7 | 103-15-12880 | PIN | 5 |
| 8 | 04020-01228 | PIN | 2 |
| 9 | 14X-15-22680 | RING GEAR | 1 |
| 10 | 14X-15-22780 | PLATE | 4 |
| 11 | 14X-15-22710 | DISC | 3 |
| 12 | 103-15-12820 | RING | 1 |
| 13 | 14X-15-22760 | PISTON | 1 |
| 14 | 113-15-12870 | RING (K2) | 1 |
| 15 | 14X-15-21140 | HOUSING | 1 |
| 16 | 145-14-11320 | PLUG | 1 |
| 17 | 124-15-41910 | RING (K2) | 1 |
| 18 | 14X-15-22730 | PISTON | 1 |
| 19 | 113-15-12870 | RING (K2) | 1 |
| 20 | 145-14-12790 | SPRING¤ (L= 59.0) | 5 |
| 21 | 04020-01228 | PIN | 2 |
| 22 | 14X-15-22780 | PLATE | 5 |
| 23 | 14X-15-22710 | DISC | 4 |
3. 113-15-12870 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-98-54500 | 707-35-52520 | 707-44-80180 |
| 707-98-54510 | 707-35-52660 | 707-44-85180 |
| 707-98-56210 | 707-35-52670 | 707-44-10150 |
| 707-98-56600 | 707-35-52690 | 707-44-85150 |
| 707-98-56610 | 707-35-52700 | 707-44-90070 |
| 707-98-56640 | 707-35-52740 | 707-44-90080 |
| 707-98-57201 | 707-35-52750 | 707-44-90180 |
| 707-98-58200 | 707-35-52760 | 707-44-90150 |
| 707-98-58210 | 707-35-52770 | 707-44-95180 |
| 707-98-58230 | 707-35-52780 | 707-44-95150 |
| 707-98-58240 | 707-35-52830 | 707-44-10080 |
| 707-98-60100 | 707-35-52860 | 707-44-10180 |
| 707-98-60110 | 707-35-52880 | 707-44-10250 |
| 707-98-60120 | 707-35-52900 | 707-44-10280 |
| 707-98-60121 | 707-35-52910 | 707-99-45310 |
5. FAQ
Q: How do I install this gasket correctly?
A: First, thoroughly clean both mating surfaces to remove dirt, oil, or old gasket residue. Align the new gasket precisely with the fluid ports and bolt holes, then tighten the bolts evenly in a crisscross pattern to ensure uniform compression.
Q: What common mistakes lead to gasket failure?
A: The most common issues include poor surface preparation, uneven bolt torque, using the wrong material for the operating fluid or temperature, and reusing a previously compressed gasket.
Q: How long does a PTFE gasket last?
A: Under ideal conditions with proper installation, a PTFE gasket can last the full service life of the component it seals, only requiring replacement if the joint is disassembled.
Q: Can I reuse an old gasket?
A: No, it is not recommended to reuse a gasket. Once compressed, the material develops a permanent compression set and cannot conform to the mating surfaces again, leading to leaks. Always install a new gasket during reassembly.
