566-15-49210 5661549210 Bulldozer KIT SEAL RING HM300-5E0 D475ASD-5E0
1. Quick Details of seal 566-15-49210:
| Part NO. | 566-15-49210 |
| Machine | Crawler Dozer |
| Size | OEM |
| Material | Glass-Filled PTFE |
| Type | SEAL RING |

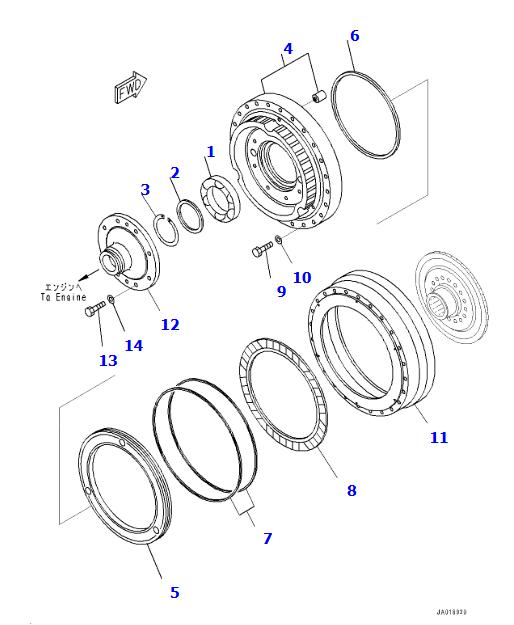

2. 566-15-49210 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 23B-13-90000 | Transmission Assembly | 1 |
| 1 | 711-90-19310 | Bearing | 1 |
| 2 | 711-53-11770 | Plate | 1 |
| 3 | 04064-08025 | Ring, Snap | 1 |
| 4 | 23B-13-77110 | Housing | 1 |
| 5 | 23B-13-77210 | Piston | 1 |
| 6 | 566-15-49210 | Ring, (Kit : K01) | 2 |
| 7 | 568-15-12850 | Seal Ring, (Kit : K01) | 2 |
| 8 | 424-15-12711 | Disc | 1 |
| 9 | 01010-81060 | Bolt | 24 |
| 10 | 01643-31032 | Washer | 24 |
| 11 | 23B-13-71210 | Case | 1 |
| 12 | 711-90-11253 | Pilot | 1 |
| 13 | 01010-81040 | Bolt | 8 |
| 14 | 01643-31032 | Washer | 8 |

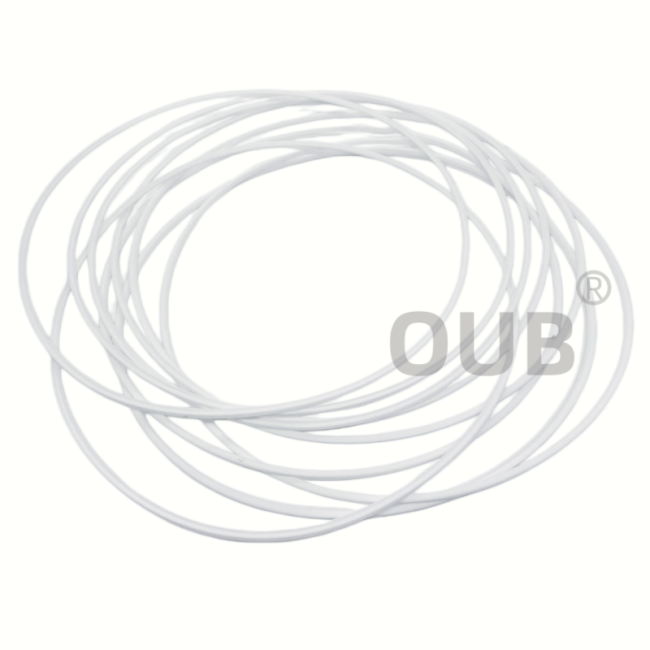

3.566-15-49210 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-99-59620 | 707-51-85640 | 707-98-25820 |
| 707-99-59680 | 707-51-45640 | 707-98-54510 |
| 707-99-59690 | 707-51-80630 | 707-98-56210 |
| 707-99-59740 | 707-51-80640 | 707-98-56600 |
| 707-99-62010 | 707-51-11640 | 707-98-56610 |
| 707-99-62020 | 707-51-11650 | 707-98-56640 |
| 707-99-62120 | 707-51-11690 | 707-98-57201 |
| 707-99-64010 | 707-51-12630 | 707-98-58200 |
| 707-99-64030 | 707-51-12640 | 707-98-58210 |
| 707-99-64040 | 707-51-12650 | 707-98-58230 |
| 707-99-64050 | 707-44-10911 | 707-98-58240 |
| 707-99-64080 | 707-44-11080 | 707-98-60100 |
| 707-99-64120 | 707-44-11150 | 707-98-60110 |
| 707-99-64130 | 707-44-11180 | 707-98-60120 |
| 707-99-64150 | 707-44-11250 | 707-98-60121 |
5. FAQ
Q: What makes PTFE such a good material for gaskets?
A: PTFE is chemically inert to nearly all hydraulic fluids, acids, and bases, works reliably across a wide temperature range from -200°C to +260°C, and resists compression set to maintain consistent sealing pressure over time.
Q: How do I install this gasket correctly?
A: First, clean both mating surfaces thoroughly to remove all dirt, oil, or old gasket residue. Align the new gasket precisely with fluid ports and bolt holes, then tighten the bolts evenly in a crisscross pattern to ensure uniform compression.
Q: What are the most common causes of gasket failure?
A: Common issues include poor surface preparation, uneven bolt torque, using the wrong material for the application, and reusing a previously compressed gasket.
Q: How long can a properly installed PTFE gasket last?
A: Under ideal conditions with proper installation, a PTFE gasket can last the full service life of the component it seals, only requiring replacement if the joint is disassembled.
