17A-13-42710 17A1342710 SEAL RING OF POWER TRAIN PUMP and TURBINE D155AX-8 D155AX-6
1. Quick Details of seal 17A-13-42710:
| Part NO. |
17A-13-42710 |
| Machine | Crawler Dozer |
| Size | OEM |
| Material | Glass-Filled PTFE |
| Type | SEAL RING |

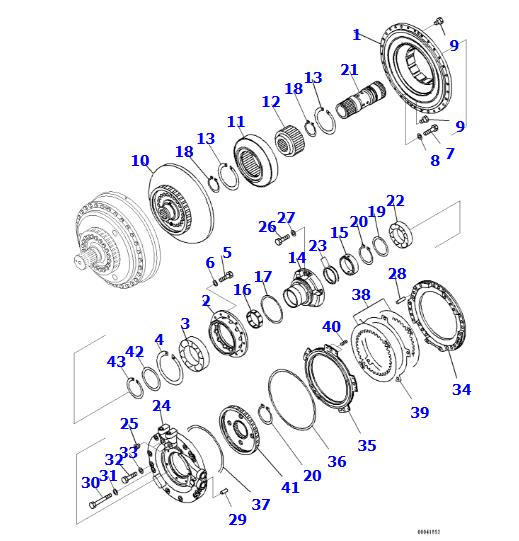

2. 17A-13-42710 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 17A-13-21121 | Pump | 1 |
| 2 | 17A-13-41140 | Retainer | 1 |
| 3 | 17A-13-31160 | Bearing | 1 |
| 4 | 04071-00180 | Ring, Snap | 1 |
| 5 | 01010-81035 | Bolt | 12 |
| 6 | 01643-31032 | Washer | 12 |
| 7 | 01010-81040 | Bolt | 30 |
| 8 | 01643-31032 | Washer | 30 |
| 9 | 07040-11209 | Plug | 2 |
| 10 | 17A-13-41510 | Turbine | 1 |
| 11 | 17A-13-42110 | Stator | 1 |
| 12 | 17A-13-42130 | Race | 1 |
| 13 | 04071-00150 | Ring, Snap | 2 |
| 14 | 17A-13-44211 | Shaft | 1 |
| 15 | 17A-13-43220 | Sleeve | 1 |
| 16 | 150-15-11680 | Bushing | 1 |
| 17 | 17A-13-42710 | Seal Ring, (Kit : K01) | 1 |
| 18 | 195-13-12711 | Seal Ring, (Kit : K02) | 1 |
| 19 | 04064-08530 | Ring, Snap, for Shaft Side | 2 |
| 20 | 17A-13-43210 | Spacer | 1 |
| 21 | 04064-09030 | Ring, Snap | 2 |
| 22 | 17A-13-48520 | Shaft | 1 |
| 23 | 06043-06018 | Bearing | 1 |
| 24 | 07018-20904 | Seal Ring | 2 |
| 25 | 17A-13-44110 | Housing | 1 |
| 26 | 07043-70312 | Plug | 2 |
| 27 | 01010-81030 | Bolt | 6 |
| 28 | 01643-31032 | Washer | 6 |
| 29 | 711-68-18130 | Pin | 5 |
| 30 | 04020-01228 | Pin, Dowel | 1 |
| 31 | 01010-81290 | Bolt | 10 |
| 32 | 01643-31232 | Washer | 10 |
| 33 | 01252-71250 | Bolt | 3 |
| 34 | 01643-31232 | Washer | 3 |
| 35 | 17A-13-48120 | Housing | 1 |
| 36 | 424-15-12750 | Piston | 1 |
| 37 | 568-15-12850 | Seal Ring, (Kit : K01, K02) | 1 |
| 38 | 113-15-12870 | Ring, (Kit : K01, K02) | 1 |
| 39 | 424-15-12711 | Disc | 2 |
| 40 | 424-15-12720 | Plate | 1 |
| 41 | 23A-15-12910 | Spring | 10 |
| 42 | 17A-13-48310 | Hub | 1 |
| 43 | 17A-13-41770 | Plate | 1 |
| 44 | 04070-00105 | Ring, Snap | 1 |
3.17A-13-42710 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-99-59680 | 707-51-10110 | 707-98-54510 |
| 707-35-91660 | 707-44-80180 | 707-98-56210 |
| 707-35-91750 | 707-44-85180 | 707-98-56600 |
| 707-35-91840 | 707-44-10150 | 707-98-56610 |
| 707-35-91850 | 707-44-85150 | 707-98-56640 |
| 707-35-92020 | 707-44-90070 | 707-98-57201 |
| 707-35-92050 | 707-44-90080 | 707-98-58200 |
| 707-35-92300 | 707-44-90180 | 707-98-58210 |
| 707-35-92600 | 707-44-90150 | 707-98-58230 |
| 707-35-92900 | 707-44-95180 | 707-98-58240 |
| 707-35-93020 | 707-44-95150 | 707-98-60100 |
| 707-35-99500 | 707-44-10080 | 707-98-60110 |
| 707-35-99510 | 707-44-10180 | 707-98-60120 |
| 707-35-99600 | 707-44-10250 | 707-98-60121 |
| 707-51-75640 | 707-51-75630 | 707-98-60120 |
5. FAQ
Q: How to distinguish the front and back of these seal ring?
A: Inner Diameter (ID) Bevel vs. Flat BackOn many Komatsu Teflon rings of this generation, the inside circumference dictates the direction:The Front (Facing the incoming oil): The inside corner will often have a small machined bevel or chamfer (an angled cut) to help smoothly guide the oil or slide over the piston during assembly.The Back: The back inside edge will form a sharp, distinct 90 degree angle so it locks tight into the corner of the piston groove and won't slip.Visual MarkingsExamine both flat faces of the ring under good lighting:The Front/Outside Facing: OEM Komatsu rings or high-end aftermarket equivalents like Blumaq often stamp or print tiny part numbers, brand logos, or a small dot/marker on one side.Rule of thumb: If you see any printed text, a stamped number, or a colored paint dot, that face almost always points outward/forward (toward the direction you are installing it from, or facing the hydraulic fluid pressure).
Q: What common mistakes lead to early gasket failure?
A: The most frequent issues are dirty or scratched mating surfaces, uneven bolt torque causing warping, using the wrong gasket thickness for the flange gap, and reusing a previously compressed gasket.
Q: How long can a properly installed PTFE gasket last?
A: With clean surfaces and correct torque, it can last for years of continuous service. It only needs replacement when the joint is disassembled for maintenance or repair.
Q: What makes PTFE ideal for hydraulic applications?
A: PTFE resists nearly all hydraulic fluids, acids, and bases, works reliably from -200°C to +260°C, and won’t degrade or swell over time, so the seal stays consistent even with long service life.
A: PTFE offers exceptional chemical resistance to nearly all hydraulic fluids, acids, and alkalis, maintains its properties across a wide temperature range (-200°C to +260°C), and resists compression set to ensure a consistent, long-lasting seal.
