Product Description
1. Quick Details of seal 198-12-11240 :
| Part NO. | 198-12-11240 |
| Machine | Crawler Dozer |
| Size | OEM |
| Material | PU,SPCC |
| Oil seal type | RING SEAL |

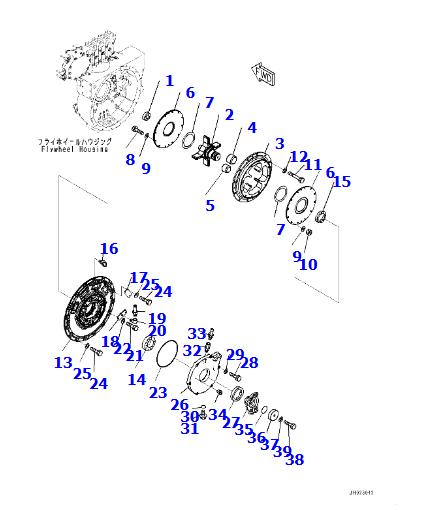

2. 198-12-11240 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 195-09-18450 | Bearing | 1 |
| 2 | 195-12-42121 | Shaft | 1 |
| 3 | 195-12-42171 | Body | 1 |
| 4 | 195-12-42311 | Rubber | 4 |
| 5 | 195-12-42321 | Rubber | 4 |
| 6 | 195-12-42140 | Flange | 2 |
| 7 | 198-12-11240 | Seal | 2 |
| 8 | 01011-81215 | Bolt | 12 |
| 9 | 01643-31232 | Washer | 24 |
| 10 | 01580-11210 | Nut | 12 |
| 11 | 01010-81670 | Bolt | 12 |
| 12 | 01643-31645 | Washer | 12 |
| 13 | 195-12-42111 | Cover | 1 |
| 14 | 06030-06317 | Bearing | 1 |
| 15 | 195-09-18520 | Seal | 1 |
| 16 | 04530-11018 | Bolt, Eye | 1 |
| 17 | 195-12-42411 | Plate | 3 |
| 18 | 195-12-42421 | Plate | 1 |
| 19 | 120-04-41130 | Nipple | 1 |
| 20 | 07323-30200 | Elbow | 1 |
| 21 | 01010-80816 | Bolt | 12 |
| 22 | 01643-30823 | Washer | 12 |
| 23 | 07000-15360 | O-ring | 1 |
| 24 | 01010-81235 | Bolt | 16 |
| 25 | 01643-31232 | Washer | 16 |
| 26 | 195-12-31122 | Retainer | 1 |
| 27 | 195-09-18520 | Seal | 1 |
| 28 | 01010-81255 | Bolt | 6 |
| 29 | 01643-31232 | Washer | 6 |
| 30 | 07002-12434 | O-ring | 1 |
| 31 | 07044-12412 | Plug | 1 |
| 32 | 170-21-11190 | Elbow | 1 |
| 33 | 120-04-41130 | Nipple | 1 |
| 34 | 07042-30108 | Plug | 1 |
| 35 | 195-12-42151 | Coupling | 1 |
| 36 | 07000-15075 | O-ring | 1 |
| 37 | 195-12-11210 | Holder | 1 |
| 38 | 01011-81600 | Bolt | 1 |
| 39 | 01643-31645 | Washer | 1 |

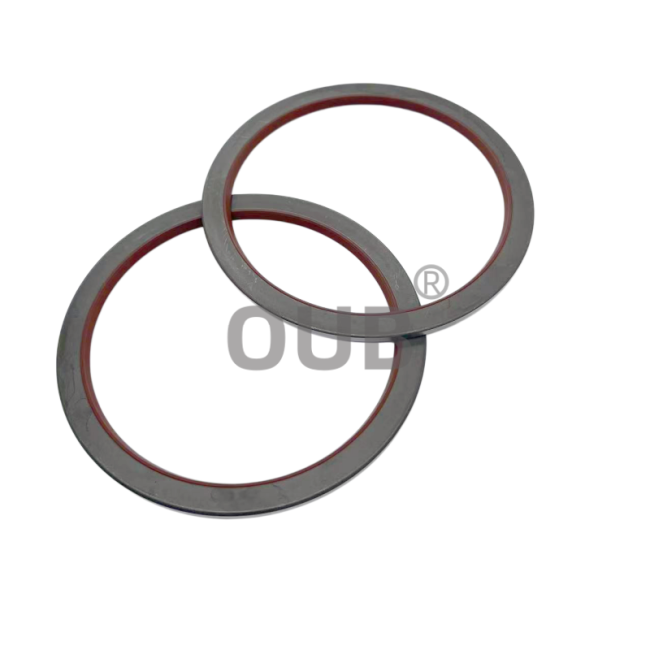

3. 198-12-11240 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-35-52670 | 707-51-45640 | 707-99-75600 |
| 707-51-45640 | 707-51-11640 | 707-51-80640 |
| 707-35-52670 | 707-35-91100 | 707-98-36600 |
| 707-35-52690 | 707-51-45640 | 707-98-56600 |
| 707-35-91130 | 707-51-45650 | 707-44-85150 |
| 707-35-91140 | 707-51-50640 | 707-44-90070 |
| 707-35-91200 | 707-51-45650 | 707-44-90080 |
| 707-35-91220 | 707-51-50640 | 707-44-90180 |
| 707-35-91250 | 707-51-55630 | 707-44-90150 |
| 707-35-91311 | 707-51-55640 | 707-44-95180 |
| 707-35-91320 | 707-51-60640 | 707-44-95150 |
| 707-35-52780 | 707-51-60650 | 707-51-18030 |
| 707-51-70630 | 707-44-90180 | 707-98-37580 |
| 707-51-70650 | 707-44-90150 | 707-51-20250 |
| 707-99-77240 | 707-98-60121 | 707-35-52700 |
5. FAQ
Q: What common mistakes cause these oil seals to fail early?
A: Common issues include poor cleaning leading to contamination, installing the seal crookedly, using the wrong installation tool, lubricating with incompatible fluids, and damage to the shaft surface (scratches, corrosion) that tears the seal lip.
Q: How long can a properly installed oil seal last?
A: With clean lubricant, correct installation, and proper shaft condition, oil seals can last 5,000–10,000 operating hours or more, depending on the material and operating conditions. FKM seals generally outlast NBR in high-temperature or harsh environments.
Q: Can I reuse an oil seal after removing it?
A: No, reusing oil seals is never recommended. Once removed, the sealing lip loses its original tension and may have hidden damage, making leaks highly likely. Always install a new seal during reassembly.
