195-13-86911 1951386911 Bulldozer SERVICE KIT PARTS Gasket D375AI-8 D375A-6R
1. Quick Details of seal 195-13-86911 :
| Part NO. | 195-13-86911 |
| Machine | Crawler Dozers |
| Size | OEM |
| Material | NBR, Fabric-reinforced rubber |
| Oil seal type | SERVICE KIT,TORQUECONVERTER |

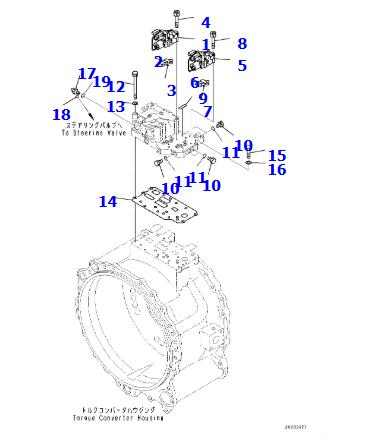

2. 195-13-86911 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 195-22-90000 | Power Unit | 1 |
| 2 | 195-13-91000 | Torque Converter Assembly | 1 |
| 3 | 195-13-86001 | Valve Assembly | 1 |
| 4 | 56D-15-35601 | ECMV Assembly | 1 |
| 5 | 07000-72015 | O-ring | 4 |
| 6 | 07000-71007 | O-ring | 1 |
| 7 | 01252-70650 | Bolt, Hexagon Socket Head | 4 |
| 8 | 17A-13-46201 | ECMV Assembly | 1 |
| 9 | 07000-72015 | O-ring | 4 |
| 10 | 07000-71007 | O-ring | 1 |
| 11 | 01252-70650 | Bolt, Hexagon Socket Head | 4 |
| 12 | 700-11-31980 | Plate, Name (Limited Supply) | 1 |
| 13 | 07040-11209 | Plug | 5 |
| 14 | 07002-61223 | O-ring | 5 |
| 15 | 01011-81035 | Bolt | 3 |
| 16 | 01643-31032 | Washer | 3 |
| 17 | 195-13-86911 | Gasket, (Kit : K01) | 1 |
| 18 | 01010-81050 | Bolt | 3 |
| 19 | 01643-31032 | Washer | 3 |
| 20 | 02782-10422 | Elbow | 1 |
| 21 | 02896-61012 | O-ring, (Kit : K01) | 1 |
| 22 | 07002-62034 | O-ring, (Kit : K01) | 1 |

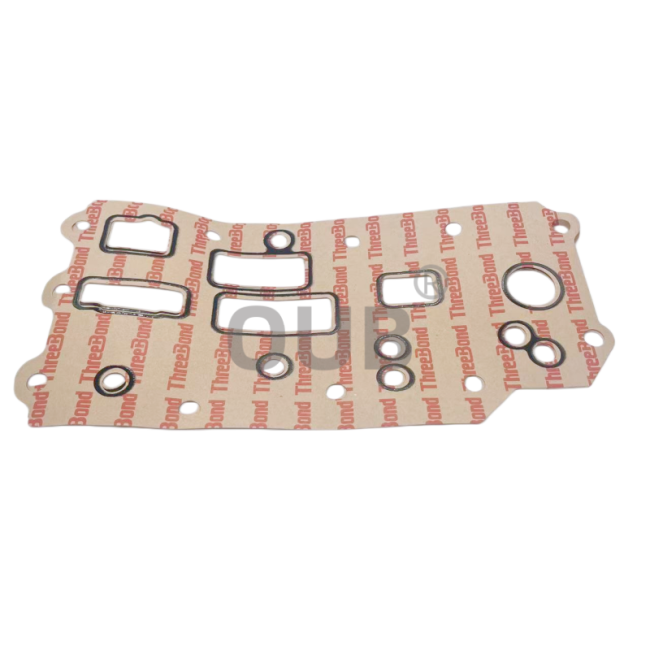

3. 195-13-86911 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-35-52670 | 707-51-45640 | 707-99-75600 |
| 707-51-45640 | 707-51-11640 | 707-51-80640 |
| 707-51-50640 | 707-99-43690 | 707-98-36600 |
| 707-35-91850 | 707-99-43730 | 707-98-36700 |
| 707-51-11690 | 707-99-43740 | 707-51-16030 |
| 707-51-12630 | 707-98-25920 | 707-51-16030 |
| 707-51-12640 | 707-98-25970 | 707-98-56640 |
| 707-51-12650 | 707-98-25980 | 707-98-57201 |
| 707-44-10911 | 707-98-26070 | 707-98-58200 |
| 707-35-93020 | 707-98-26100 | 707-98-58210 |
| 707-35-99500 | 707-51-85030 | 707-51-18030 |
| 707-35-52830 | 707-44-10911 | 707-51-18030 |
| 707-35-52860 | 707-98-60120 | 707-98-58240 |
| 707-51-70650 | 707-98-60121 | 707-51-20250 |
| 707-99-77240 | 707-98-61100 | 707-35-52700 |
5. FAQ
Q: What color is this gasket?
A: It is a clean, opaque white, which is characteristic of pure or filled PTFE materials.
Q: What is the structure of this gasket?
A: It is a thin, continuous circular ring with a flat cross-section. Its simple, precise shape is designed to fit snugly into the seal groove and provide uniform support for the O-ring.
Q: Where is this gasket installed?
A: It is installed in the same groove as the primary O-ring, usually on the side facing the high-pressure fluid. It sits between the O-ring and the clearance gap in the housing or cylinder bore.
Q: What happens if the gasket’s dimensions are slightly off?
A: If it is too small, it won’t provide full support, allowing the O-ring to extrude. If it’s too large, it will not fit properly in the groove, causing misalignment and uneven pressure on the O-ring, which can lead to leaks and seal failure.
