17M-13-46210 17M1346210 KIT; GASKET Parts ,D275A-5D D275AX-5-KO
Price:
Negotiable
MOQ:
10
Delivery Time:
Within 5-15 days after getting your desposit
Brand:
OUB
Product Description
1. Quick Details of seal 17M-13-46210 :
| Part NO. | 17M-13-46210 |
| Machine | Crawler Dozers |
| Size | OEM |
| Material | Nitrile Butadiene Rubber |
| Part type | GASKET |

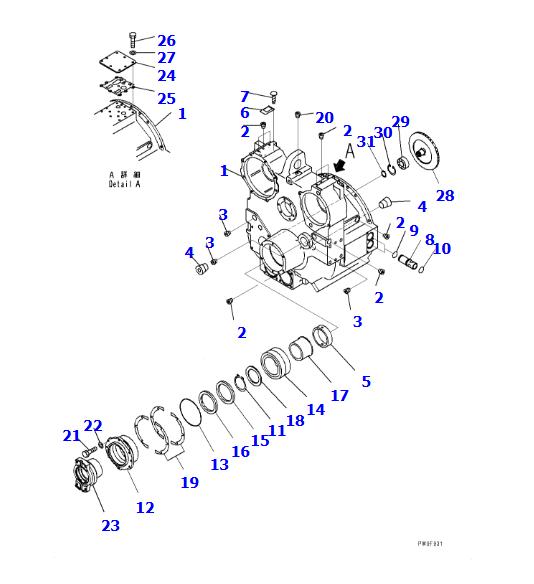

2. 17M-13-46210 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 17M-13-51101 | Power Piston Assembly | 1 |
| 2 | 17M-13-43211 | Case | 1 |
| 3 | 07043-70108 | Plug | 7 |
| 4 | 07043-71019 | Plug | 5 |
| 5 | 07043-72026 | Plug, Taper | 2 |
| 6 | 711-66-13140 | Sleeve | 1 |
| 7 | 09607-05080 | Plate, Name (Limited Supply) | 1 |
| 8 | 04418-13060 | Screw | 4 |
| 9 | 17A-13-22550 | Sleeve | 2 |
| 10 | 07000-73035 | O-ring, (Kit : K01, K02) | 2 |
| 11 | 07000-73038 | O-ring, (Kit : K01, K02) | 2 |
| 12 | 04064-09530 | Ring, Snap | 1 |
| 13 | 17M-13-22370 | Cover | 1 |
| 14 | 07000-75175 | O-ring, (Kit : K01, K02) | 1 |
| 15 | 19M-13-23360 | Bearing | 1 |
| 16 | 07012-50120 | Seal, Oil, (Kit : K01, K02) | 1 |
| 17 | 17M-13-22730 | Seal, Dust, (Kit : K01, K02) | 1 |
| 18 | 17M-13-21341 | Race | 1 |
| 19 | 17M-13-21770 | Spacer | 1 |
| 20 | 711-66-14270 | Shim, T=0.15mm, (Kit : K01, K02) | 6 |
| 21 | 711-66-14280 | Shim, T=0.2mm, (Kit : K01, K02) | 6 |
| 22 | 711-66-14290 | Shim, T=0.5mm, (Kit : K01, K02) | 4 |
| 23 | 07043-70108 | Plug | 1 |
| 24 | 01010-81035 | Bolt | 6 |
| 25 | 01643-31032 | Washer | 6 |
| 26 | 17M-13-22360 | Coupling | 1 |
| 27 | 17M-13-56220 | Cover | 1 |
| 28 | 17M-13-46210 | Gasket, (Kit : K01, K02) | 1 |
| 29 | 01010-81025 | Bolt | 8 |
| 30 | 01643-31032 | Washer | 8 |
| 31 | 17M-13-42140 | Gear | 1 |
| 32 | 17A-13-24490 | Bearing | 1 |
| 33 | 04065-07225 | Ring, Snap | 1 |
| 34 | 04064-03515 | Ring, Snap | 1 |

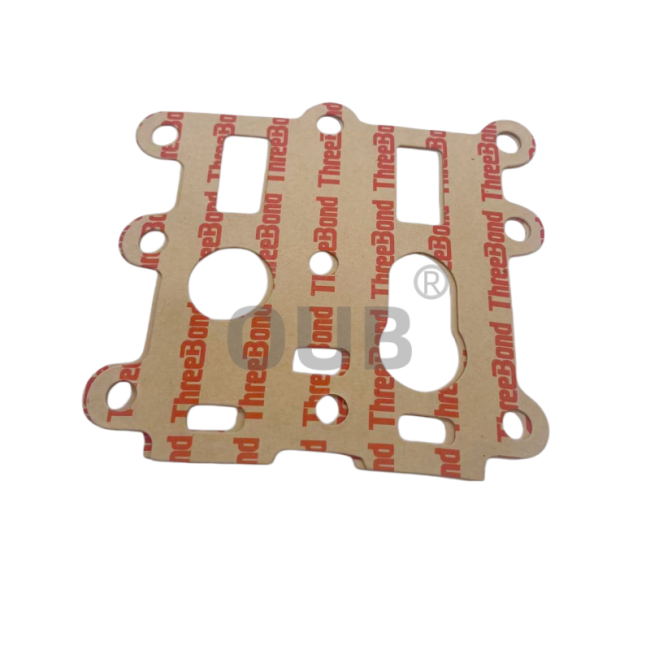

3. 17M-13-46210 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-35-52670 | 707-51-45640 | 707-99-75600 |
| 707-51-45640 | 707-51-11640 | 707-51-80640 |
| 707-51-50640 | 707-99-43690 | 707-98-36600 |
| 707-51-55630 | 707-51-90630 | 707-98-36700 |
| 707-51-55640 | 707-51-90640 | 707-51-16030 |
| 707-51-60640 | 707-51-90650 | 707-98-37110 |
| 707-51-60650 | 707-51-95630 | 707-51-11030 |
| 707-51-65630 | 707-51-12650 | 707-51-11110 |
| 707-51-65640 | 707-44-10911 | 707-51-11860 |
| 707-51-65650 | 707-44-11080 | 56D-50-13170 |
| 707-35-99500 | 707-51-85030 | 56D-50-13171 |
| 707-35-52830 | 707-44-10911 | 707-51-18030 |
| 707-35-52860 | 707-98-60120 | 707-98-58240 |
| 707-51-70650 | 707-98-60121 | 707-51-20250 |
| 707-99-77240 | 707-98-61100 | 707-35-52700 |
5. FAQ
Q: What is the function of this gasket?
A: Its core job is to create a static, leak-proof seal between two mating components. It fills minor surface imperfections and gaps to prevent oil, fuel, or hydraulic fluid from leaking out, while also blocking contaminants from entering the system.
A: Its core job is to create a static, leak-proof seal between two mating components. It fills minor surface imperfections and gaps to prevent oil, fuel, or hydraulic fluid from leaking out, while also blocking contaminants from entering the system.
Q: What color is this gasket?
A: It’s a light tan/brown color, with red “ThreeBond” branding printed across its surface.
A: It’s a light tan/brown color, with red “ThreeBond” branding printed across its surface.
Q: What is the structure of this gasket?
A: It’s a precision-cut flat sheet with a custom profile. It has exactly aligned bolt holes, fluid passage cutouts, and mounting features to match the geometry of the parts it seals.
A: It’s a precision-cut flat sheet with a custom profile. It has exactly aligned bolt holes, fluid passage cutouts, and mounting features to match the geometry of the parts it seals.
Q: Where is this gasket installed?
A: It sits between two flat mating surfaces, such as a pump housing and its cover, a valve body, or an engine component. The bolt holes in the gasket align perfectly with the fastener holes in the parts.
A: It sits between two flat mating surfaces, such as a pump housing and its cover, a valve body, or an engine component. The bolt holes in the gasket align perfectly with the fastener holes in the parts.
Q: What happens if the gasket’s dimensions are slightly off?
A: If the cutouts don’t align with fluid passages, it can block flow and cause pressure buildup. If the bolt holes are misaligned, clamping pressure will be uneven, leading to leaks and potential component warping.
A: If the cutouts don’t align with fluid passages, it can block flow and cause pressure buildup. If the bolt holes are misaligned, clamping pressure will be uneven, leading to leaks and potential component warping.
Q: What happens if the gasket is installed backwards?
A: Installing it the wrong way can misalign the bolt holes or passage cutouts, causing blockages or leaks. Some coated gaskets also have a specific side designed to face the fluid, so reversing it can lead to premature degradation.
A: Installing it the wrong way can misalign the bolt holes or passage cutouts, causing blockages or leaks. Some coated gaskets also have a specific side designed to face the fluid, so reversing it can lead to premature degradation.
