144-13-11290 1441311290 SHIM High Quality Genuine for Bulldozer Part D65P-11D D65E-8
Price:
Negotiable
MOQ:
10
Delivery Time:
Within 5-15 days after getting your desposit
Brand:
OUB
Product Description
1. Quick Details of seal 144-13-11290:
| Part NO. | 144-13-11290 |
| Machine | Bulldozers |
| Size | 0.05mm |
| Material | High-precision carbon steel |
| Oil seal type | SHIM |

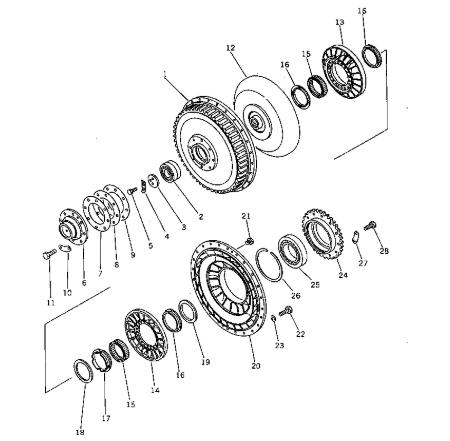

2. 144-13-11290 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 144-13-11002 | TORQUE CONVERTER A. | 1 |
| 2 | 144-13-11212 | CASE | 1 |
| 3 | 144-13-11240 | BEARING | 1 |
| 4 | 145-13-21690 | HOLDER | 1 |
| 5 | 04081-04512 | LOCK (K1) | 1 |
| 6 | 01010-61025 | BOLT | 2 |
| 7 | 144-13-11250 | PILOT | 1 |
| 8 | 144-13-11270 | SHIM, 0.1MM (K1) | 2 |
| 9 | 144-13-11280 | SHIM, 0.3MM (K1) | 1 |
| 10 | 144-13-11290 | SHIM, 0.05MM (K1) | 1 |
| 11 | 144-13-11260 | LOCK (K1) | 4 |
| 12 | 01010-61230 | BOLT | 8 |
| 13 | 144-13-11511 | TURBINE ASSEMBLY | 1 |
| 14 | 144-13-12103 | STATOR,FIRST | 1 |
| 15 | 144-13-12102 | STATOR,FIRST | 1 |
| 16 | 144-13-12303 | STATOR,SECOND | 1 |
| 17 | 144-13-12302 | STATOR,SECOND | 1 |
| 18 | 281-13-12161 | WHEEL,FREE | 2 |
| 19 | 144-13-12140 | BUSHING | 3 |
| 20 | 144-13-12351 | BUSHING | 1 |
| 21 | 144-13-12660 | PLATE | 1 |
| 22 | 144-13-12620 | SPACER | 1 |
| 23 | 144-13-11111 | PUMP ASSEMBLY | 1 |
| 24 | 07040-10807 | PLUG | 2 |
| 25 | 01010-61030 | BOLT | 24 |
| 26 | 01643-31032 | WASHER | 24 |
| 27 | 144-13-11140 | GEAR | 1 |
| 28 | 144-13-11161 | BEARING | 1 |
| 29 | 04067-00150 | RING,SNAP | 1 |
| 30 | 144-13-11150 | PLATE (K1) | 6 |
| 31 | 01010-61030 | BOLT | 12 |

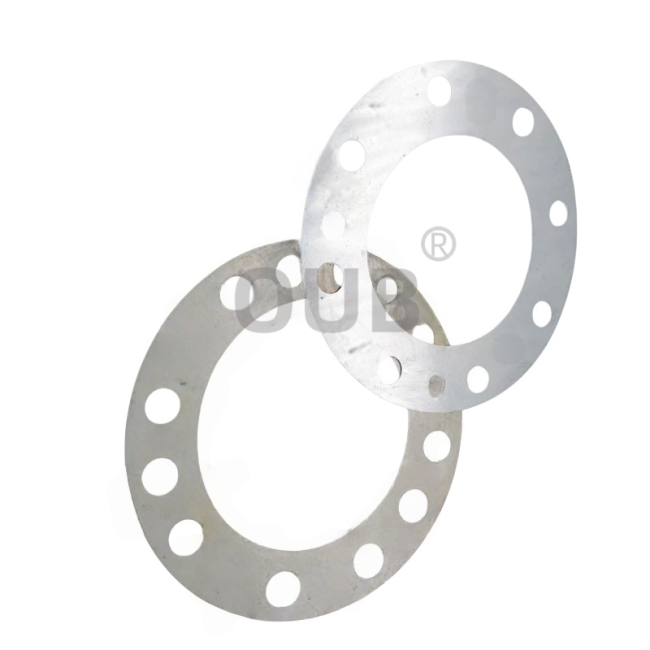

3. 144-13-11290 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-35-52670 | 707-51-45640 | 707-99-75600 |
| 707-51-45640 | 707-51-11640 | 707-51-80640 |
| 707-98-25920 | 707-98-36740 | 707-98-56640 |
| 707-51-16030 | 707-98-25920 | 707-98-36740 |
| 707-98-27100 | 707-98-25970 | 707-98-37110 |
| 707-51-16130 | 707-98-25980 | 707-98-37130 |
| 707-51-17030 | 707-98-26070 | 707-98-37300 |
| 707-51-17130 | 707-98-26100 | 707-98-37500 |
| 707-51-18030 | 707-98-26110 | 707-98-37510 |
| 707-51-18130 | 707-98-26120 | 707-98-37570 |
| 707-51-19030 | 707-98-26200 | 707-98-37580 |
| 707-51-18130 | 707-98-26120 | 707-98-37570 |
| 707-51-19030 | 707-98-26200 | 707-98-37580 |
| 707-51-70650 | 707-51-85030 | 707-51-11050 |
| 707-99-77240 | 707-98-61100 | 707-35-52700 |
5. FAQ
Q: What's the purpose of the shim in the transmission seal kit?
A: In heavy machinery transmissions, parts must line up perfectly. Even a microscopic gap can cause premature wear, fluid leaks, or shifting issues. This shim serves two primary functions:
A: In heavy machinery transmissions, parts must line up perfectly. Even a microscopic gap can cause premature wear, fluid leaks, or shifting issues. This shim serves two primary functions:
- Setting End Play (Axial Clearance): It is used to adjust the exact spacing between bearings, shafts, and the torque converter case.
- Custom Tuning: When mechanics rebuild a transmission, they measure the gaps. They use a combination of different shim thicknesses (like the 0.1mm, 0.3mm, and your 0.05mm shim) to stack together until the fit is exactly within Komatsu's strict technical specifications.
Q: What material is this shim made of?
A: It is constructed from high-grade carbon steel, often with a protective anti-corrosion coating. The material offers excellent rigidity, dimensional stability, and resistance to deformation under load.
Q: How is this shim different from traditional fluid-sealing gaskets?
A: Unlike fiber gaskets that seal fluids, this is a mechanical adjustment shim. It does not prevent leaks; instead, it controls dimensional spacing to maintain optimal assembly clearances.
A: Unlike fiber gaskets that seal fluids, this is a mechanical adjustment shim. It does not prevent leaks; instead, it controls dimensional spacing to maintain optimal assembly clearances.
Q: What is the structure of this shim?
A: It is a flat, circular metallic plate with multiple bolt holes around its perimeter. The precise thickness and hole pattern are engineered to match the exact geometry of the mating components.
Q: Where is this shim installed?
A: It is placed between mating components in the transmission or powertrain, such as between gear sets, bearing housings, or clutch assemblies, to achieve the correct operational clearances.
