56B-46-13470 56B4613470 SEAL LIP, OIL SEAL RING Engine Assembly Construction Machinery CatHM350-2 GH320-3
1. Quick Details of seal 56B-46-13470:
| Part NO. | 56B-46-13470 |
| Machine | crawler loaders |
| Size | OEM |
| Material | NBR rubber |
| Oil seal type | SEAL LIP |

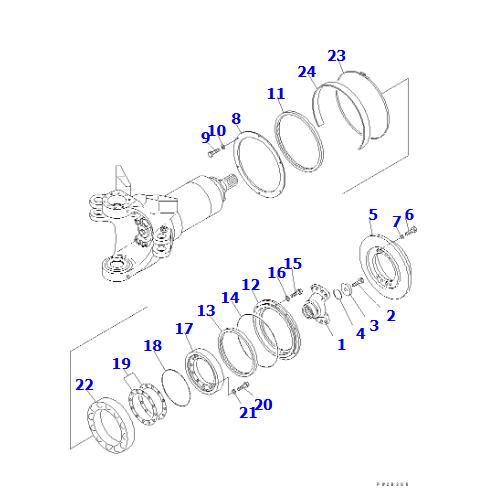

2. 56B-46-13470 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 01051-62440 | BOLT | 1 |
| 2 | 287-15-13621 | HOLDER | 1 |
| 3 | 07000-15075 | O-RING | 1 |
| 4 | 56B-34-11421 | DISK | 1 |
| 5 | 01010-62060 | BOLT | 8 |
| 6 | 01643-32060 | WASHER | 8 |
| 7 | 56B-46-13310 | RETAINER,FRONT | 1 |
| 8 | 01010-81025 | BOLT | 6 |
| 9 | 01643-31032 | WASHER | 6 |
| 10 | 56B-46-13320 | SEAL,FRONT | 1 |
| 11 | 56B-46-13410 | RETAINER,REAR | 1 |
| 12 | 56B-46-13470 | SEAL | 1 |
| 13 | 07000-15425 | O-RING | 1 |
| 14 | 01010-81035 | BOLT | 6 |
| 15 | 01643-31032 | WASHER | 6 |
| 16 | 56B-46-13421 | RETAINER | 1 |
| 17 | 07000-15300 | O-RING | 1 |
| 18 | 56B-46-13431 | SHIM, 0.2MM | 3 |
| 19 | 56B-46-13441 | SHIM, 0.3MM | 3 |
| 20 | 56B-46-13451 | SHIM, 1.0MM | 6 |
| 21 | 01010-61875 | BOLT | 12 |
| 22 | 01643-21845 | WASHER | 12 |
| 23 | 56B-46-13460 | BEARING | 1 |
| 24 | 56B-46-13350 | CLAMP | 1 |
| 25 | 56C-46-13360 | RUBBER | 1 |
| 26 | 56B-46-13360 | RUBBER | 1 |

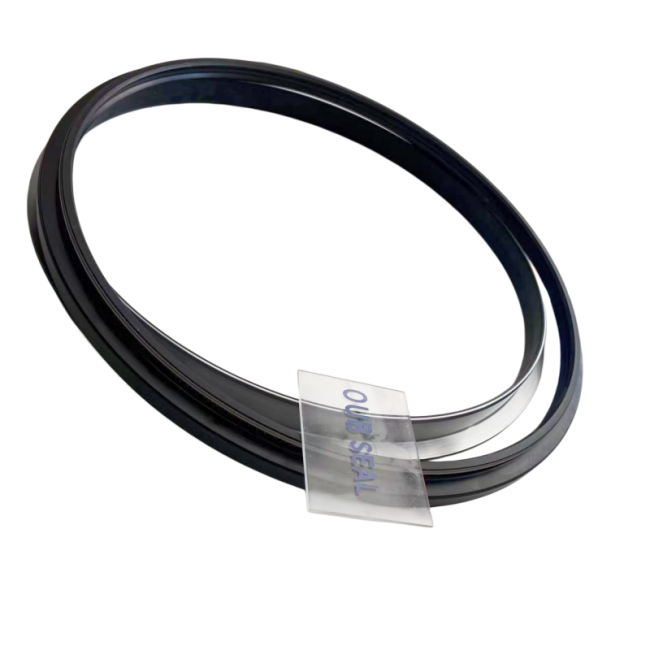

3. 56B-46-13470 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-35-52670 | 707-51-45640 | 707-99-75600 |
| 707-51-45640 | 707-51-11640 | 707-51-80640 |
| 707-98-25920 | 707-98-36740 | 707-98-56640 |
| 707-44-85150 | 707-51-11650 | 707-51-75110 |
| 707-44-90080 | 707-51-12630 | 707-51-75211 |
| 707-44-90180 | 707-51-12640 | 707-51-80030 |
| 707-44-90150 | 707-51-12650 | 707-51-80110 |
| 707-44-95180 | 707-44-10911 | 707-51-80211 |
| 707-44-95150 | 707-44-11080 | 707-51-85130 |
| 707-44-10080 | 707-44-11150 | 707-51-85030 |
| 707-44-10080 | 707-44-11150 | 707-51-85211 |
| 707-44-10180 | 707-44-11180 | 707-51-90860 |
| 707-51-19030 | 707-98-26200 | 707-98-37580 |
| 707-51-70650 | 707-51-85030 | 707-51-11050 |
| 707-99-77240 | 707-98-61100 | 707-35-52700 |
5. FAQ
Q: What decides different material matching inside this whole seal set?
A: Different installation positions and operating temperatures determine raw material selection for transmission and hydraulic parts respectively.
Q: Does the outer outline follow OEM original mounting dimension and shape style?
A: All seals keep factory standard outer diameter, inner diameter and thickness for direct press-fit installation.
Q: Can you make customized colored seals if customers place large-volume long-term orders?
A: Standard goods keep inherent natural color; special color matching is acceptable only for fixed bulk contracts.
Q: What is the core usage difference between black NBR and brown FKM oil seals?
A: Black NBR fits conventional gearbox and hydraulic parts at normal temperature; brown FKM suits high-heat engine output shaft sealing.
Q: Will long-term storage in damp warehouse make metal shell rust or rubber fade?
A: Steel shells have anti-rust coating, rubber hardly fades; slight surface matte won’t affect sealing performance.
