235-0354 2350354 Cylinder Service Seal Kit for Compact Crawler Loader 436B 428B 416B 428C
Price:
Negotiable
MOQ:
10
Delivery Time:
Within 5-15 days after getting your desposit
Brand:
OUB
Product Description
1. Quick Details of seal 235-0354:
| Part NO. | 235-0354 |
| Machine | wheel loader |
| Size | OEM |
| Material | PU |
| Oil seal type |
SEAL KIT |
2. 235-0354 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 439-2696 | SEAL | 1 |
| 2 | 6J-5731 | SEAL | 1 |
| 3 | 167-2186 | SEAL | 1 |
| 4 | 4T-6780 | SEAL | 1 |
| 5 | 6J-5733 | SEAL | 1 |
| 6 | 175-7896 | O-RING | 1 |
| 7 | 8J-2574 | SEAL | 1 |
| 8 | 226-8202 | SEAL | 1 |
| 9 | 6J-1972 | SEAL | 1 |

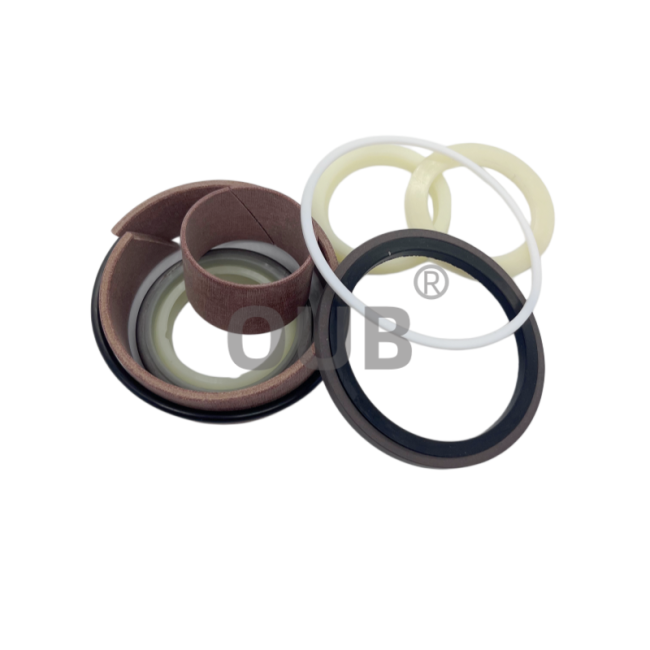

3. 235-0354 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 1411774 | 6V-9746 | 8T-2361 |
| 2R0098 | 3J-1907 | 7F-8607 |
| 6V5059 | 6V-8397 | 8F-0212 |
| 8C5176 | 3D-2824 | 2K8257 |
| 8C5175 | 5K-9090 | 1654854 |
| 1H7339 | 5P-2235 | 1719375 |
| 8T9528 | 1T-0132 | 2468777 |
| 5K5129 | 9X-7735 | 2P1692 |
| 6J3134 | 194-9584 | 4J8996 |
| 2N5243 | 6V3830 | 3H-0107 |
| 5P8211 | 095-1728 | 5K-5959 |
| 2D-6533 | 095-1586 | 1173036 |
5. FAQ
Q: What natural original color does each sealing component keep without artificially added pigment?
A: PU main dynamic seals are faint almond white, silicon-filled PTFE backup rings are silver ash grey, all NBR rubber fittings are matte black, resin textile fabric rings are warm earth brown.
A: PU main dynamic seals are faint almond white, silicon-filled PTFE backup rings are silver ash grey, all NBR rubber fittings are matte black, resin textile fabric rings are warm earth brown.
Q: What specific sealing work is undertaken by PU on the compact loader’s boom cylinder?
A: As the core dynamic sealing element, PU depends on stable rebound elasticity to block hydraulic fluid leakage when the equipment’s boom rises and falls to lift stones, soil and construction scraps continuously.
Q: Why match silicon-filled PTFE as auxiliary backup ring assembled together with PU main seal?
A: It fills tiny gaps inside piston installation grooves and prevents soft PU from being extruded and torn when sudden pressure surges occur from instant heavy payload on rugged uneven ground.
Q: What practical advantages does NBR rubber possess compared with high-end special rubber?
A: NBR features cost efficiency and good oil resistance, keeping stable sealing performance under regular working temperature with commonly used hydraulic oil for small engineering vehicles.
Q: On which fixed cylinder locations will various NBR O-rings be assembled?
A: NBR small rubber pieces are mainly used for static sealing on cylinder head joint faces and hydraulic pipe threaded connection gaps to avoid slow long-term oil seepage.
Q: What practical optimization effect can resin soaked textile fabric wear ring bring to piston running?
A: It corrects piston offset displacement during boom movement, maintains central positioning and lowers frictional abrasion between piston outer circumference and cylinder inner tube wall effectively.
Q: Are all spare parts manufactured strictly following genuine OEM size standards?
A: Every single sealing accessory is produced according to original factory blueprint dimensions to realize direct replacement without manual matching adjustment.
