VOE14692082 Seal heavy parts of EC750D, EC950E
1. Quick Details of seal VOE14692082:
| Part NO. | VOE14692082 |
| Machine | excavator |
| Size | OEM |
| Material | NBR |
| Type | RING SEAL |

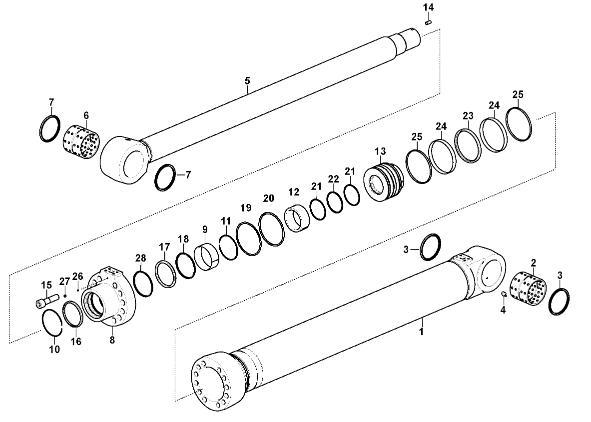

2. VOE14692082 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14713690 | Cylinder | 2 | |
| 1 | VOE14682071 | Tube | 1 |
| 2 | VOE14727030 | Bushing | 1 |
| 3 | VOE14596527 | Seal | 2 |
| 4 | VOE914167 | Lubricating nipple | 1 |
| 5 | VOE14682075 | Rod | 1 |
| 6 | VOE14727030 | Bushing | 1 |
| 7 | VOE14596527 | Seal | 2 |
| 8 | VOE14714217 | Head | 1 |
| 9 | VOE14588978 | Bushing | 1 |
| 10 | VOE14589000 | Ring | 1 |
| 11 | VOE14588979 | Ring | 1 |
| 12 | VOE14596463 | Cushion | 1 |
| 13 | VOE14588670 | Piston | 1 |
| 14 | VOE14883743 | Set screw | 1 |
| 15 | VOE14588456 | Bolt | 12 |
| 16 | VOE14588973 | Seal | 1 |
| 17 | VOE14883644 | Seal | 1 |
| 18 | VOE14692079 | Seal | 1 |
| 19 | VOE14588972 | Ring | 1 |
| 20 | VOE990659 | O-ring | 1 |
| 21 | SA9566-31250 | Back-up ring | 2 |
| 22 | VOE990648 | O-ring | 1 |
| 23 | VOE14692082 | Seal | 1 |
| 24 | VOE14588821 | Ring | 2 |
| 25 | VOE14588970 | Seal | 2 |
| 26 | VOE14880995 | Ball | 1 |
| 27 | SA7281-11070 | Plug | 1 |
| 28 | VOE14883647 | Back-up ring | 1 |
| 100 | VOE14713114 | Sealing kit | 1 |

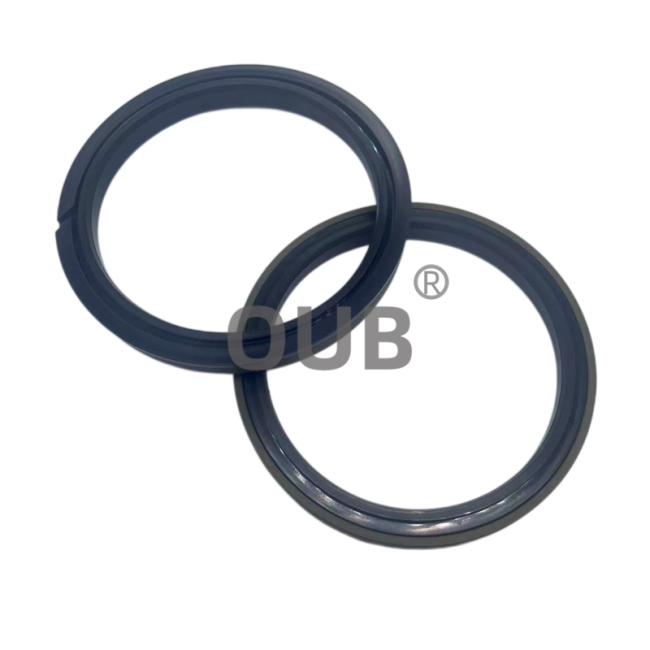

3. VOE14692082 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 6V1454 | 7F8268 |
| 206-9298 | 3K-0360 | 1P-7363 |
| 8T-9597 | 6V-9746 | 8T-2361 |
| 236-6919 | 3J-1907 | 7F-8607 |
5. FAQ
Q: What is the OEM part number of this hydraulic piston seal ring?
A: The OEM part number is VOE14692082, this piston seal ring is specially designed for excavator hydraulic cylinder piston sealing.
Q: What construction machine can part VOE14692082 be fitted onto?
A: VOE14692082 fits excavator hydraulic cylinder, installed on piston to separate pressure chambers inside the cylinder barrel.
Q: What raw materials are used to produce this piston seal ring?
A: It adopts PTFE sealing sliding ring paired with NBR backup ring, featuring low friction and outstanding pressure resistance.
Q: What core function does this piston seal ring perform for excavator hydraulic cylinder?
A: It blocks hydraulic oil from crossing between the two sides of piston, maintaining pressure difference to drive cylinder extension and retraction.
Q: Where is this piston seal ring assembled inside the hydraulic cylinder?
A: It is fitted into the dedicated groove on the outer diameter of piston, directly contacting the inner wall of cylinder barrel.
Q: What trouble will arise once this piston seal ring wears out?
A: Hydraulic oil will bypass the piston, leading to internal leakage, reduced cylinder thrust and slow movement of working arm.
Q: What product category does VOE14692082 belong to?
A: It belongs to piston seal ring, dynamic sealing spare part for excavator hydraulic cylinder repair and overhaul.
Q: What benefit does the NBR backup ring offer?
A: The backup ring prevents the PTFE main ring from being squeezed into the gap under high hydraulic pressure.
