VOE14597451 Seal heavy parts of EC950E
1. Quick Details of seal VOE14597451:
| Part NO. | VOE14597451 |
| Machine | excavator |
| Size | OEM |
| Material | NBR |
| Type | RING SEAL |

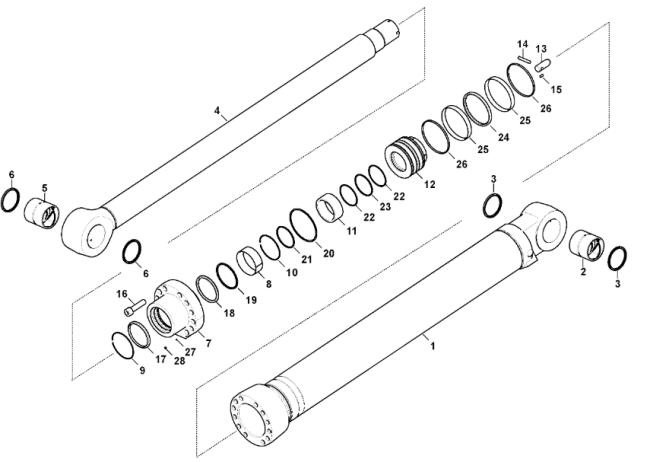

2. VOE14597451 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14726202 | Cylinder | 1 | |
| 1 | VOE14726257 | Tube | 1 |
| 2 | VOE14596536 | Bushing | 1 |
| 3 | VOE14596537 | Seal | 2 |
| 4 | VOE14726260 | Rod | 1 |
| 5 | VOE14596536 | Bushing | 1 |
| 6 | VOE14596537 | Seal | 2 |
| 7 | VOE14726263 | Head | 1 |
| 8 | VOE14596547 | Bushing | 1 |
| 9 | VOE14596549 | Ring | 1 |
| 10 | VOE14596548 | Ring | 1 |
| 11 | VOE14596544 | Cushion | 1 |
| 12 | VOE14596543 | Piston | 1 |
| 13 | VOE14726264 | Cushion | 1 |
| 14 | VOE14726265 | Set screw | 1 |
| 15 | VOE14883743 | Bolt | 1 |
| 16 | VOE14588456 | Seal | 12 |
| 17 | VOE14596582 | Seal | 1 |
| 18 | VOE14883562 | Seal | 1 |
| 19 | VOE14597450 | Sea | 1 |
| 20 | VOE14883713 | Back-up ring | 1 |
| 21 | VOE14683970 | O-ring | 1 |
| 22 | VOE14882741 | Back-up ring | 2 |
| 23 | VOE14596580 | O-ring | 1 |
| 24 | VOE14597451 | Seal | 1 |
| 25 | VOE14597453 | Ring | 2 |
| 26 | VOE14726266 | Ring | 2 |
| 27 | VOE14880995 | Ball | 1 |
| 28 | SA7281-11070 | Plug | 1 |
| 100 | VOE14729320 | Sealing kit | 1 |
3. VOE14597451 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 6V1454 | 7F8268 |
| 206-9298 | 152-3968 | 1P-7363 |
| 8T-9597 | 6V-9746 | 8T-2361 |
| 236-6919 | 3J-1907 | 7F-8607 |
5. FAQ
Q: What is the OEM part number of this hydraulic piston seal ring?
A: The OEM part number is VOE14597451, this piston seal ring is designed for excavator bucket hydraulic cylinder piston dynamic sealing.
Q: What construction machine can part VOE14597451 be installed and matched on?
A: VOE14597451 fits excavator bucket cylinder, fitted on piston to separate pressure chambers inside the hydraulic barrel.
Q: What raw materials compose this piston seal ring?
A: It adopts PTFE sliding sealing ring paired with FKM backup ring, offering great wear resistance and high pressure tolerance.
Q: What core function does this piston seal ring perform for excavator bucket cylinder?
A: It blocks hydraulic oil cross flow across piston, maintains pressure difference to control bucket opening and closing movement.
Q: Where is this piston seal ring mounted inside the hydraulic cylinder assembly?
A: It is fitted into the dedicated groove on piston outer diameter, sliding directly against the inner wall of cylinder tube.
Q: What issue will appear if this piston seal ring gets worn or damaged?
A: Internal hydraulic leakage will happen inside cylinder, which reduces bucket clamping force and slows down bucket response speed.
Q: What product category does VOE14597451 belong to?
A: It belongs to piston seal ring, dynamic hydraulic sealing spare part for excavator bucket cylinder maintenance and repair.
Q: What protective effect does the FKM backup ring provide?
A: The FKM backup ring prevents the main PTFE ring from being extruded into the clearance gap under high hydraulic pressure.
