VOE14597460 Seal heavy parts of EC950E
1. Quick Details of seal VOE14597460:
| Part NO. | VOE14597460 |
| Machine | excavator |
| Size | OEM |
| Material | NBR |
| Type | RING SEAL |

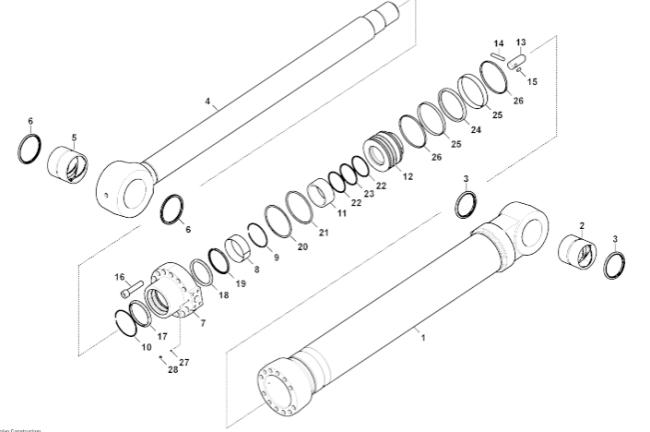

2. VOE14597460 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14596431 | Cylinder | 1 | |
| 1 | VOE14596550 | Tube | 1 |
| 2 | VOE14596467 | Bushing | 1 |
| 3 | VOE14560217 | Seal | 2 |
| 4 | VOE14596556 | Rod | 1 |
| 5 | VOE14596529 | Bushing | 1 |
| 6 | VOE14596527 | Seal | 2 |
| 7 | VOE14596560 | Head | 1 |
| 8 | VOE14596575 | Bushing | 1 |
| 9 | VOE14596563 | Ring | 1 |
| 10 | VOE14596574 | Ring | 1 |
| 11 | VOE14596562 | Cushion | 1 |
| 12 | VOE14596561 | Piston | 1 |
| 13 | VOE14596545 | Cushion | 1 |
| 14 | VOE14596546 | Set screw | 1 |
| 15 | VOE14883743 | Bolt | 2 |
| 16 | VOE14588456 | Seal | 12 |
| 17 | VOE14597457 | Seal | 1 |
| 18 | VOE14883561 | Seal | 1 |
| 19 | VOE14597459 | Seal | 1 |
| 20 | VOE14883712 | Back-up ring | 1 |
| 21 | V0E14684064 | O-ring | 1 |
| 22 | SA9566-31350 | Back-up ring | 2 |
| 23 | VOE990650 | O-ring | 1 |
| 24 | VOE14597460 | Seal | 1 |
| 25 | VOE14597462 | Ring | 2 |
| 26 | VOE14884992 | Seal | 2 |
| 27 | VOE14880995 | Ball | 1 |
| 28 | SA7281-11070 | Plug | 1 |
| 100 | VOE14713113 | Sealing kit | 1 |
3. VOE14597460 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 6V1454 | 7F8268 |
| 206-9298 | 3K-0360 | 1P-7363 |
| 8T-9597 | 5J-8175 | 8T-2361 |
| 236-6919 | 3J-1907 | 7F-8607 |
5. FAQ
Q: What is the OEM part number of this hydraulic piston seal ring?
A: The OEM part number is VOE14597460, this piston seal ring is specially manufactured for excavator dipper arm hydraulic cylinder piston sealing.
Q: What construction machine can part VOE14597460 be installed and matched on?
A: VOE14597460 fits excavator dipper arm cylinder, fitted on piston to separate high and low pressure oil chambers inside cylinder barrel.
Q: What raw materials are used to produce this piston seal ring?
A: It is composed of PTFE sliding sealing ring and NBR backup ring, featuring low friction coefficient and excellent extrusion resistance.
Q: What core function does this piston seal ring perform for excavator dipper arm cylinder?
A: It prevents hydraulic oil from bypassing the piston, maintains pressure difference to control the stretching and retracting movement of dipper arm.
Q: Where is this piston seal ring assembled inside the hydraulic cylinder assembly?
A: It is installed in the precision groove on piston outer circle, sliding reciprocally against the inner wall of hydraulic cylinder tube.
