VOE14542026 Ring heavy parts EC700B, EC700BHR
1. Quick Details of seal VOE14542026:
| Part NO. | VOE14542026 |
| Machine | excavator |
| Size | OEM |
| Material | PTFE |
| Type | RING SEAL |

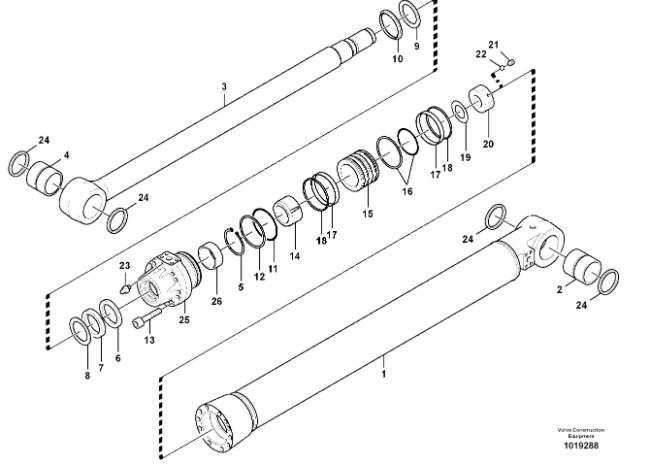

2. VOE14542026 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14528492 | Cylinder | 1 | |
| 1 | VOE14542074 | Cylinder tube | 1 |
| 2 | VOE14542070 | Bushing | 1 |
| 3 | VOE14542075 | Rod | 1 |
| 4 | VOE14542070 | Bushing | 1 |
| 5 | VOE14542015 | Ring | 1 |
| 6 | VOE14542078 | Ring | 1 |
| 7 | VOE14542079 | Ring | 1 |
| 8 | VOE14542080 | Ring | 1 |
| 9 | VOE14542081 | Ring | 1 |
| 10 | V0E14585342 | Ring | 1 |
| 11 | SA9511-22180 | O-ring | 1 |
| 12 | VOE14542021 | Ring | 1 |
| 13 | VOE14542022 | Bolt | 8 |
| 14 | VOE14542083 | Ring | 1 |
| 15 | VOE14542084 | Piston | 1 |
| 16 | VOE14542026 | Ring | 1 |
| 17 | VOE14542027 | Ring | 2 |
| 18 | VOE14542028 | Ring | 2 |
| 19 | VOE14542085 | Shim | 1 |
| 20 | VOE14542029 | Nut | 1 |
| 21 | VOE14542030 | Set screw | 1 |
| 22 | SA9676-38000 | Ball | 1 |
| 23 | VOE14542072 | Venting | 1 |
| 24 | VOE14542071 | Ring | 4 |
| 25 | VOE14542077 | Bushing | 1 |
| 26 | VOE14542088 | Rod | 1 |
| 27 | VOE14618214 | Sealing Kit | 1 |

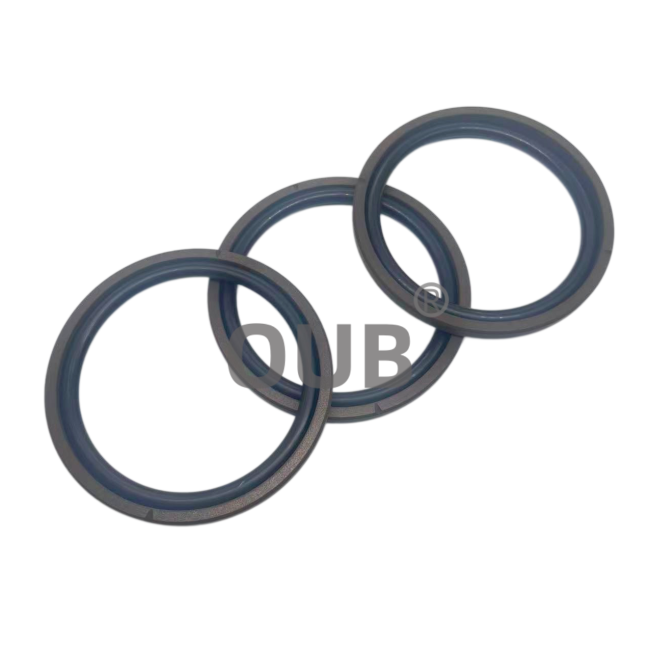

3. VOE14542026 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 6J-9733 | 7F8268 |
| 206-9298 | 3K-0360 | 6V-8397 |
| 8T-9597 | 5J-8825 | 8T-2361 |
| 236-6919 | 1J-6474 | 7F-8607 |
5. FAQ
Q: What construction machine does VOE14542026 fit for?
A: VOE14542026 is a piston seal ring specially made for excavator hydraulic boom cylinder.
Q: What raw materials are used for VOE14542026 piston seal ring?
A: VOE14542026 piston seal ring adopts PTFE sealing layer with PA backup ring.
Q: What is the main working purpose of this piston seal ring?
A: It blocks hydraulic oil bypass across piston and maintains stable pressure inside cylinder.
Q: Where will this piston seal ring be installed on the hydraulic assembly?
A: It is fitted into the precision groove on the piston of the boom hydraulic cylinder.
Q: What advantage does PA backup ring bring to this seal assembly?
A: PA material offers strong extrusion resistance under high hydraulic pressure conditions.
Q: What kind of working environment can this piston seal ring withstand?
A: It can handle heavy load and frequent reciprocating motion in mining and earthmoving work.
Q: What failure symptom will occur once this piston seal ring is worn?
A: The boom will sink slowly and the cylinder cannot hold pressure during static holding.
Q: Is this piston seal ring compatible with other series of hydraulic cylinders?
A: It is customized for the matched excavator boom cylinder, cross-model use is not advised.
