VOE14542063 Ring heavy parts of EC700B, EC700BHR
1. Quick Details of seal VOE14542063:
| Part NO. | VOE14542063 |
| Machine | excavator |
| Size | OEM |
| Material | PTFE |
| Type | RING SEAL |

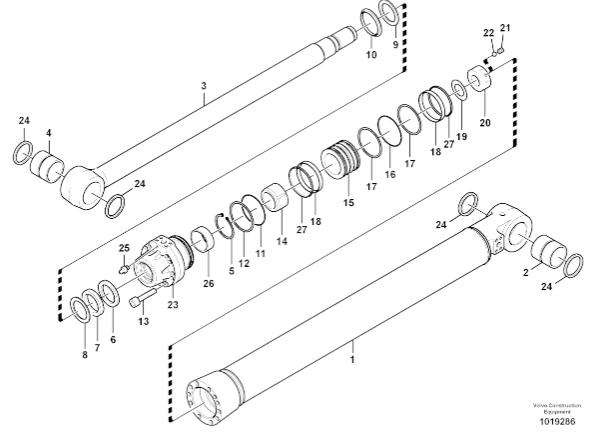

2. VOE14542063 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14542070 | Bushing | 1 | |
| 1 | VOE14549703 | Rod | 1 |
| 2 | VOE14542070 | Bushing | 1 |
| 3 | VOE14542052 | Ring | 1 |
| 4 | VOE14542053 | Ring | 1 |
| 5 | VOE14618209 | Ring | 1 |
| 6 | VOE14542055 | Ring | 1 |
| 7 | VOE14542056 | Ring | 1 |
| 8 | VOE14585341 | Ring | 1 |
| 9 | VOE14542058 | O-ring | 1 |
| 10 | VOE14542059 | Ring | 1 |
| 11 | VOE14542060 | Bolt | 8 |
| 12 | VOE14542061 | Ring | 1 |
| 13 | VOE14542062 | Piston | 1 |
| 14 | VOE14542063 | Ring | 1 |
| 15 | VOE14549706 | Ring | 2 |
| 16 | VOE14542064 | Ring | 2 |
| 17 | VOE14542066 | Shim | 1 |
| 18 | VOE14542067 | Nut | 1 |
| 19 | VOE14542068 | Set screw | 1 |
| 20 | SA9676-71600 | Ball | 1 |
| 21 | VOE14542050 | Head | 1 |
| 22 | VOE14542071 | Ring | 4 |
| 23 | VOE14542033 | Venting | 1 |
| 24 | VOE14542051 | Bushing | 1 |
| 25 | VOE14542065 | Ring | 2 |
| 26 | VOE14544927 | Rod | 1 |
| 27 | VOE14618213 | Sealing kit | 1 |
3. VOE14542063 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 6J-9733 | 7F8268 |
| 206-9298 | 3K-0360 | 6V-9746 |
| 8T-9597 | 5J-8825 | 8T-2361 |
| 236-6919 | 1J-6474 | 7F-8607 |
5. FAQ
Q: What machine can VOE14542063 piston seal ring be fitted to?
A: VOE14542063 piston seal ring is designed for hydraulic arm cylinder of excavators.
Q: What materials compose VOE14542063 piston seal ring?
A: VOE14542063 piston seal ring adopts filled PTFE sealing layer with PU backup ring.
Q: What is the primary function of this piston seal ring inside hydraulic cylinder?
A: It creates bidirectional sealing to prevent internal hydraulic oil leakage between piston and cylinder tube.
Q: Where is this piston seal ring mounted on the hydraulic cylinder assembly?
A: It is installed into the precision piston groove on the arm hydraulic cylinder of excavator.
Q: What advantage does PU backup ring bring for this seal assembly?
A: PU material has great extrusion resistance and good wear performance under heavy load pressure.
Q: What working pressure range can this piston seal ring withstand?
A: It can handle high working pressure generated during continuous digging and lifting operations.
Q: What problem will show up once this piston seal ring becomes worn?
A: The arm cylinder will have slow response and fail to hold pressure when keeping load in position.
