VOE14597453 Ring heavy parts of EC950E
1. Quick Details of seal VOE14597453:
| Part NO. | VOE14597453 |
| Machine | excavator |
| Size | OEM |
| Material | PTFE |
| Type | RING SEAL |

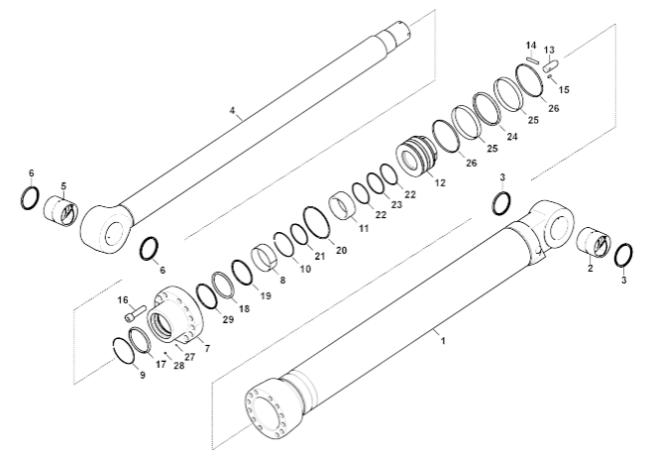

2. VOE14597453 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14713691 | Cylinder | 1 | |
| 1 | VOE14596530 | Tube | 1 |
| 2 | VOE14596536 | Bushing | 1 |
| 3 | VOE14596537 | Seal | 2 |
| 4 | VOE14596538 | Rod | 1 |
| 5 | VOE14596536 | Bushing | 1 |
| 6 | VOE14596537 | Seal | 2 |
| 7 | VOE14596542 | Head | 1 |
| 8 | VOE14596547 | Bushing | 1 |
| 9 | VOE14596549 | Ring | 1 |
| 10 | VOE14596548 | Ring | 1 |
| 11 | VOE14596544 | Cushion | 1 |
| 12 | VOE14596543 | Piston | 1 |
| 13 | VOE14596545 | Cushion | 1 |
| 14 | VOE14596546 | Set screw | 1 |
| 15 | VOE14883743 | Bolt | 1 |
| 16 | VOE14588456 | Seal | 12 |
| 17 | VOE14596582 | Sealing | 1 |
| 18 | VOE14883929 | Sealing | 1 |
| 19 | VOE14714218 | Sealing | 1 |
| 20 | VOE14596581 | Back-up ring | 1 |
| 21 | VOE990662 | O-ring | 1 |
| 22 | VOE14882741 | Back-up ring | 2 |
| 23 | VOE14596580 | O-ring | 1 |
| 24 | VOE14714219 | Sealing | 1 |
| 25 | VOE14597453 | Ring | 2 |
| 26 | VOE14597454 | Seal | 2 |
| 27 | VOE14880995 | Ball | 1 |
| 28 | SA7281-11070 | Plug | 1 |
| 29 | VOE14883931 | None | 1 |
| 30 | VOE14713112 | Sealing kit | 1 |
3. VOE14597453 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 6V-8398 | 7F8268 |
| 206-9298 | 3K-0360 | 6V-9746 |
| 8T-9597 | 8T-9528 | 8T-2361 |
| 236-6919 | 1J-6474 | 7F-8607 |
5. FAQ
Q: What construction machine does VOE14597453 piston seal ring suit?
A: VOE14597453 piston seal ring is engineered for hydraulic cylinders of excavators.
Q: What material combination is adopted for VOE14597453 piston seal ring?
A: VOE14597453 piston seal ring uses filled PTFE sealing layer with PA polyamide backup ring.
Q: What sealing function does this piston seal ring perform in hydraulic circuits?
A: It achieves two-way sealing and prevents hydraulic oil leakage across the piston inside cylinder tube.
Q: Where is this piston seal ring installed within the hydraulic cylinder assembly?
A: It is fitted into the precision machined piston groove of excavator bucket hydraulic cylinder.
Q: What is the main advantage brought by PA backup ring for this seal assembly?
A: PA material has excellent anti-extrusion performance to protect the PTFE layer under high pressure.
