VOE14597462 Ring heavy parts of EC950E
1. Quick Details of seal VOE14597462:
| Part NO. | VOE14597462 |
| Machine | excavator |
| Size | OEM |
| Material | PTFE |
| Type | RING SEAL |

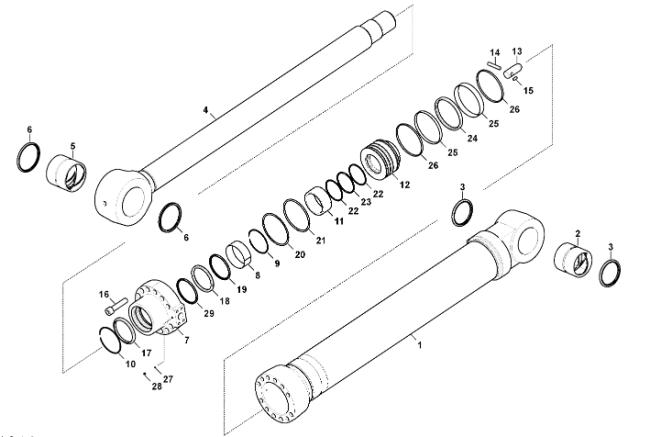

2. VOE14597462 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14713693 | Cylinder | 1 | |
| 1 | VOE14596550 | Tube | 1 |
| 2 | VOE14596467 | Bushing | 1 |
| 3 | VOE1456021 | Seal | 2 |
| 4 | VOE14596556 | Rod | 1 |
| 5 | VOE914167 | Lubricating nipple | 1 |
| 6 | VOE14596529 | Bushing | 1 |
| 7 | VOE14596527 | Seal | 2 |
| 8 | VOE14596560 | Head | 1 |
| 9 | VOE14596575 | Bushing | 1 |
| 10 | VOE14596563 | Ring | 1 |
| 11 | VOE14596574 | Ring | 1 |
| 12 | VOE14596562 | Cushion | 1 |
| 13 | VOE14596561 | Piston | 1 |
| 14 | VOE14596545 | Cushion | 1 |
| 15 | VOE14596546 | Set screw | 1 |
| 16 | VOE14588456 | Seal | 12 |
| 17 | VOE14597457 | Seal | 1 |
| 18 | VOE14883928 | Seal | 1 |
| 19 | VOE14714221 | Seal | 1 |
| 20 | VOE14714369 | O-ring | 1 |
| 21 | VOE14597456 | O-ring | 1 |
| 22 | SA9566-31350 | Back-up ring | 2 |
| 23 | VOE990650 | O-ring | 1 |
| 24 | VOE14714222 | Seal | 1 |
| 25 | VOE14597462 | Ring | 2 |
| 26 | VOE14884992 | Seal | 2 |
| 27 | VOE14880995 | Ball | 1 |
| 28 | SA7281-11070 | Plug | 1 |
| 29 | VOE14883930 | Back-up ring | 1 |
| 30 | VOE14713113 | Sealing kit | 1 |
3. VOE14597462 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 6V-8398 | 7F8268 |
| 206-9298 | 3K-0360 | 5J-8175 |
| 8T-9597 | 2J-1411 | 8T-2361 |
| 236-6919 | 1J-6474 | 7F-8607 |
5. FAQ
Q: What construction machinery does VOE14597462 fit for?
A: VOE14597462 is a piston seal ring specially manufactured for excavator hydraulic boom cylinder.
Q: What materials make up VOE14597462 piston seal ring?
A: VOE14597462 piston seal ring adopts filled PTFE sliding layer with FKM rubber backup ring.
Q: What is the core sealing function of this piston seal ring?
A: It delivers double-acting sealing and stops internal hydraulic oil flow across the piston inside cylinder tube.
Q: Where is this piston seal ring mounted on the hydraulic cylinder assembly?
A: It is installed in the precision machined piston groove of excavator boom hydraulic cylinder.
Q: What performance characteristic does FKM material bring to this seal assembly?
A: FKM rubber features outstanding heat resistance and stable performance under high temperature hydraulic oil.
Q: What pressure condition can this piston seal ring handle during heavy-duty operation?
A: It can sustain continuous high pressure generated during boom lifting and holding work on job sites.
Q: What failure symptom will show up when this piston seal ring gets worn out?
A: The boom will sink gradually and the lifting power will drop when holding heavy loads.
Q: Can this piston seal ring be supplied separately instead of buying the whole seal repair kit?
A: Single piece is available for sale, and complete hydraulic cylinder seal kits can also be provided.
