VOE14542064 Ring heavy parts of EC700B, EC700BHR, EC700C
1. Quick Details of seal VOE14542064:
| Part NO. | VOE14542064 |
| Machine | excavator |
| Size | OEM |
| Material | PTFE |
| Type | RING SEAL |

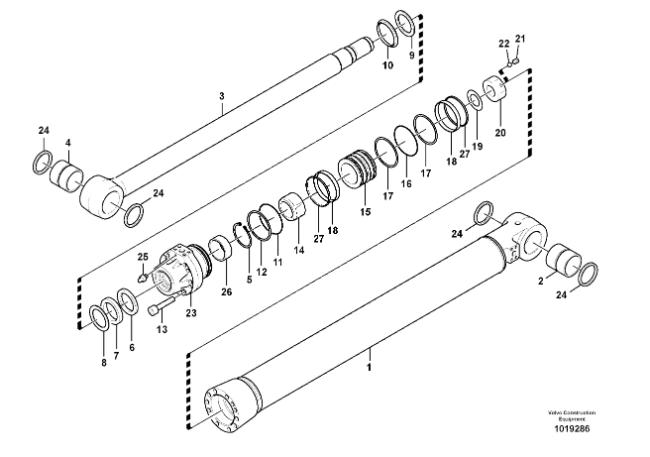

2. VOE14542064 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14564682 | Cylinder | 1 | |
| 1 | VOE14549702 | Tube | 1 |
| 2 | VOE14542070 | Bushing | 1 |
| 3 | VOE14549703 | Rod | 1 |
| 4 | VOE14542070 | Bushing | 1 |
| 5 | VOE14542052 | Ring | 1 |
| 6 | VOE14542053 | Ring | 1 |
| 7 | V0E14618209 | Ring | 1 |
| 8 | VOE14542055 | Ring | 1 |
| 9 | VOE14542056 | Ring | 1 |
| 10 | VOE14585341 | Ring | 1 |
| 11 | VOE14542058 | O-ring | 1 |
| 12 | VOE14542059 | Ring | 1 |
| 13 | VOE14542060 | Bolt | 8 |
| 14 | VOE14549704 | Ring | 1 |
| 15 | VOE14549705 | Piston | 1 |
| 16 | VOE14542063 | Ring | 1 |
| 17 | VOE14549706 | Ring | 2 |
| 18 | VOE14542064 | Ring | 2 |
| 19 | VOE14549784 | Shim | 1 |
| 20 | VOE14549707 | Nut | 1 |
| 21 | VOE14549785 | Screw | 1 |
| 22 | SA9676-71600 | Ball | 1 |
| 23 | VOE14542050 | Head | 1 |
| 24 | VOE14542071 | Ring | 4 |
| 25 | VOE14542033 | Venting | 1 |
| 26 | VOE14542051 | Bushing | 1 |
| 27 | VOE14542065 | Ring | 2 |
| 28 | VOE14589337 | Sealing kit | 1 |
3. VOE14542064 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 1K-6981 | 7F8268 |
| 206-9298 | 3K-0360 | 6V-9746 |
| 8T-9597 | 6V-5393 | 8T-2361 |
| 236-6919 | 1J-6474 | 7F-8607 |
5. FAQ
Q: What construction equipment does VOE14542064 piston seal ring fit to?
A: VOE14542064 piston seal ring is engineered for the bucket hydraulic cylinder of excavators.
Q: What material combination makes up VOE14542064 piston seal ring?
A: VOE14542064 piston seal ring adopts filled PTFE sealing layer and PA polyamide backup ring.
Q: What is the main sealing task of this piston seal ring in hydraulic system?
A: It achieves bidirectional sealing to prevent hydraulic oil passing across piston and maintains pressure balance.
Q: Where will this piston seal ring be installed on the hydraulic cylinder assembly?
A: It is fitted into the precision machined piston groove of excavator bucket hydraulic cylinder.
Q: What performance feature does PA backup ring bring for this seal assembly?
A: PA material offers strong resistance to extrusion and protects PTFE layer under sudden pressure spikes.
Q: What working site conditions can this piston seal ring adapt to?
A: It can operate steadily under heavy load and frequent reciprocating movement in earthmoving work.
