VOE14542104 Ring heavy parts OF EC700B, EC700C
1. Quick Details of seal VOE14542104:
| Part NO. | VOE14542104 |
| Machine | excavator |
| Size | OEM |
| Material | PTFE |
| Type | RING SEAL |

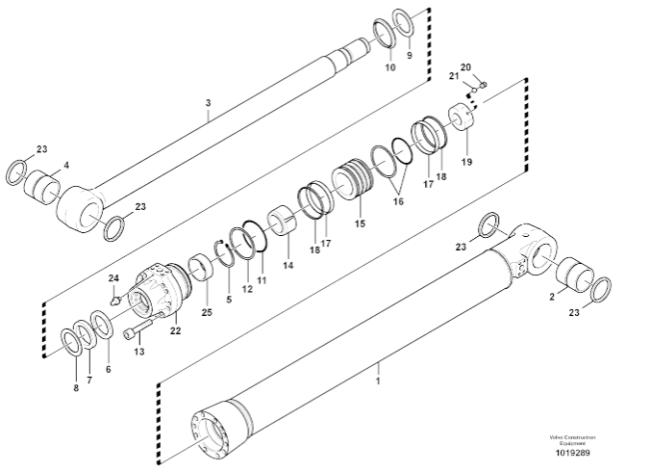

2. VOE14542104 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VO0E14511684 | Cylinder | 1 | |
| 1 | VOE14542089 | Tube | 1 |
| 2 | VOE14542108 | Bushing | 2 |
| 3 | VOE14542090 | Rod | 1 |
| 4 | VOE14542108 | Bushing | 2 |
| 5 | VOE14542093 | Ring | 1 |
| 6 | VOE14542094 | Ring | 1 |
| 7 | VOE14542095 | Ring | 1 |
| 8 | VOE14542096 | Ring | 1 |
| 9 | VOE14542097 | Ring | 1 |
| 10 | VOE14585343 | Ring | 1 |
| 11 | VOE14542099 | O-nng | 1 |
| 12 | VOE14542100 | Ring | 1 |
| 13 | VOE14542022 | Bolt | 8 |
| 14 | VOE14542101 | Ring | 1 |
| 15 | VOE14542103 | Ring | 1 |
| 16 | VOE14542104 | Ring | 2 |
| 17 | VOE14542105 | Ring | 2 |
| 18 | VOE14542106 | Nut | 1 |
| 19 | VOE14542107 | Set screw | 1 |
| 20 | SA9676-71600 | Ball | 1 |
| 21 | VOE14542032 | Ring | 4 |
| 22 | VOE14542033 | Venting | 2 |
| 23 | VOE14542092 | Bushing | 1 |
| 24 | VOE14542111 | Rod | 1 |
| 25 | VOE14589339 | Sealing kit | 1 |
3. VOE14542104 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 1K-6981 | 7F8268 |
| 206-9298 | 3K-0360 | 6V-9746 |
| 8T-9597 | 6J-9733 | 8T-2361 |
| 236-6919 | 1J-6474 | 7F-8607 |
5. FAQ
Q: Which type of construction machinery can use VOE14542104 piston seal ring?
A: VOE14542104 piston seal ring is developed for bucket hydraulic cylinder of excavators.
Q: What materials are used to manufacture VOE14542104 piston seal ring?
A: VOE14542104 piston seal ring uses filled PTFE sealing layer matched with FKM rubber backup ring.
Q: What core role does this piston seal ring play in the hydraulic cylinder system?
A: It creates two-way sealing to stop internal hydraulic fluid leakage across the piston and preserve working pressure.
Q: Where is this piston seal ring positioned on the hydraulic cylinder assembly?
A: It fits into the precision piston groove on the piston of excavator bucket hydraulic cylinder.
Q: What advantages does FKM backup ring bring to this piston seal assembly?
A: FKM rubber has great oil and heat resistance, keeping stable elasticity under high temperature working conditions.
Q: What kind of working load can this piston seal ring sustain on construction sites?
A: It can endure frequent heavy impact loads during excavation and material grabbing operations.
