VOE14542027 Ring heavy parts of EC700B, EC700BHR, EC700C
1. Quick Details of seal VOE14542027:
| Part NO. | VOE14542027 |
| Machine | excavator |
| Size | OEM |
| Material | PTFE |
| Type | RING SEAL |

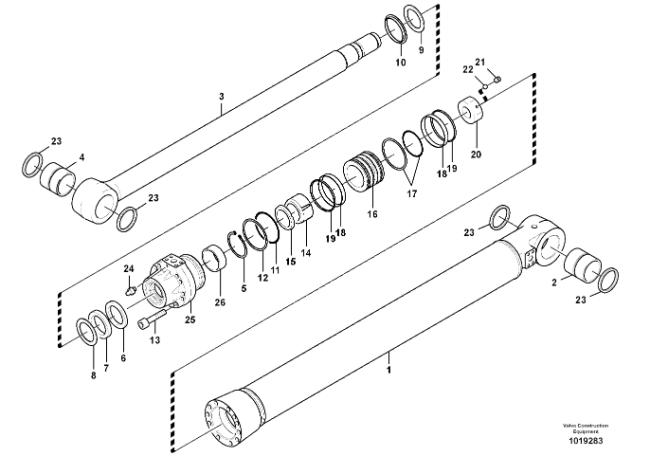

2. VOE14542027 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14542034 | Bushing | 1 | |
| 1 | VOE14544925 | Rod | 1 |
| 2 | VOE14542034 | Bushing | 1 |
| 3 | VOE14542015 | Ring | 1 |
| 4 | VOE14542016 | Ring | 1 |
| 5 | VOE14542017 | Ring | 1 |
| 6 | VOE14542018 | Ring | 1 |
| 7 | VOE14542019 | Ring | 1 |
| 8 | VOE14585340 | Ring | 1 |
| 9 | VOE960252 | O-ring | 1 |
| 10 | VOE14542021 | Ring | 1 |
| 11 | VOE14542022 | Bolt | 8 |
| 12 | VOE14542023 | Ring | 1 |
| 13 | VOE14542024 | Seal | 1 |
| 14 | VOE14542025 | Piston | 1 |
| 15 | VOE14542026 | Ring | 1 |
| 16 | VOE14542027 | Ring | 2 |
| 17 | VOE14542028 | Ring | 2 |
| 18 | VE14542029 | Nut | 1 |
| 19 | VOE14542030 | Set screw | 1 |
| 20 | SA9676-38000 | Ball | 1 |
| 21 | VOE14542032 | Ring | 4 |
| 22 | VOE14542033 | Venting | 2 |

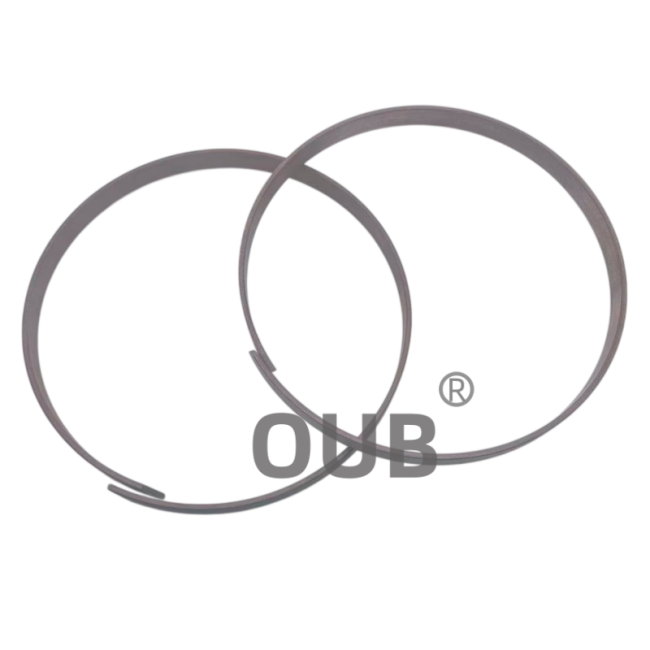

3. VOE14542027 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 1K-6981 | 7F8268 |
| 206-9298 | 3K-0360 | 6V-9746 |
| 8T-9597 | 6V-5393 | 8T-2361 |
| 236-6919 | 7J-0204 | 7F-8607 |
5. FAQ
Q: What construction machine does VOE14542027 piston seal ring fit for?
A: VOE14542027 piston seal ring is engineered for boom hydraulic cylinder of excavators.
Q: What raw materials compose VOE14542027 piston seal ring?
A: VOE14542027 piston seal ring adopts filled PTFE sealing layer paired with PU backup ring.
Q: What is the primary sealing function of this piston seal ring inside hydraulic cylinder?
A: It performs bidirectional sealing to block internal hydraulic oil cross flow and maintain stable cylinder pressure.
Q: Where is this piston seal ring installed on the hydraulic cylinder assembly?
A: It is fitted into the precision machined piston groove of excavator boom hydraulic cylinder.
Q: What performance advantage does PU backup ring bring for this seal assembly?
A: PU material delivers excellent extrusion resistance and retains elasticity under sudden pressure surges.
Q: What kind of working cycles can this piston seal ring endure?
A: It can handle repeated boom lifting and load holding cycles under heavy-duty earthmoving conditions.
Q: What obvious failure symptom will occur once this piston seal ring wears out?
A: The boom will sink slowly and the lifting power will decrease when holding heavy materials in place.
