VOE14588783 Ring heavy parts OF EC480D, EC480E, EC700B, EC700BHR
1. Quick Details of seal VOE14588783:
| Part NO. | VOE14588783 |
| Machine | excavator |
| Size | OEM |
| Material | PTFE |
| Type | RING SEAL |

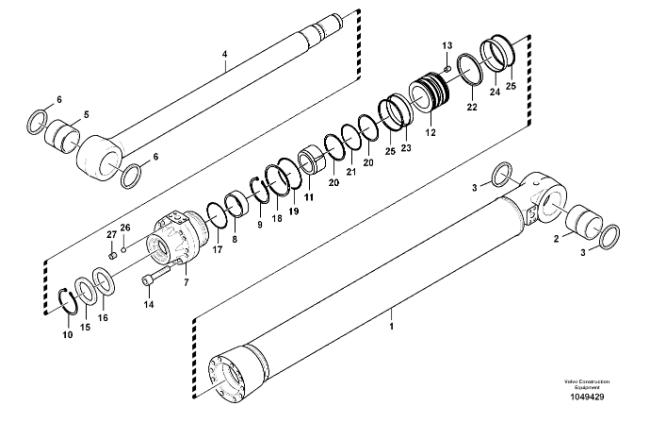

2. VOE14588783 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14587749 | Cylinder | 1 | |
| 1 | VOE14588672 | Tube | 1 |
| 2 | VOE14589004 | Bushing | 1 |
| 3 | VOE14560217 | Seal | 2 |
| 4 | VOE14575150 | Rod | 1 |
| 5 | VOE14589004 | Bushing | 1 |
| 6 | VOE14560217 | Seal | 2 |
| 7 | VOE14588453 | Head | 1 |
| 8 | SA9612-13050 | Bearing | 1 |
| 9 | SA9557-12000 | Retaining ring | 1 |
| 10 | SA9557-13000 | Retaining ring | 1 |
| 11 | VOE14587741 | Cushion | 1 |
| 12 | VOE14588454 | Piston | 1 |
| 13 | VOE14588457 | Set screw | 1 |
| 14 | VOE14568624 | Bolt | 12 |
| 15 | SA9564-21300 | Seal | 1 |
| 16 | VOE14588786 | Seal | 1 |
| 17 | VOE14588787 | Seal | 1 |
| 18 | SA9566-31750 | Back-up ring | 1 |
| 19 | VOE14611291 | O-ring | 1 |
| 20 | SA9566-31100 | Back-up ring | 2 |
| 21 | VOE990645 | O-ring | 1 |
| 22 | VOE14588812 | Seal | 1 |
| 23 | VOE14588784 | Ring | 1 |
| 24 | VOE14588783 | Ring | 1 |
| 25 | VOE14588785 | Seal | 2 |
| 26 | VOE14880995 | Ball | 1 |
| 27 | SA7281-11070 | Plug | 1 |
3. VOE14588783 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 4J-7533 | 7F8268 |
| 206-9298 | 3K-0360 | 6V-9746 |
| 8T-9597 | 6V-5393 | 8T-2361 |
| 236-6919 | 1J-6474 | 7F-8607 |
5. FAQ
Q: What construction machinery does VOE14588783 piston seal ring match?
A: VOE14588783 piston seal ring is designed for hydraulic cylinders of excavators.
Q: What raw materials are adopted for VOE14588783 piston seal ring?
A: VOE14588783 piston seal ring uses filled PTFE sealing layer with NBR rubber backup support ring.
Q: What sealing task does this piston seal ring perform in the hydraulic cylinder?
A: It provides bidirectional sealing effect and prevents internal hydraulic oil from passing through the piston gap.
Q: Where is this piston seal ring assembled inside the hydraulic cylinder assembly?
A: It is fitted into the precision machined piston groove of excavator arm hydraulic cylinder.
Q: What performance advantage does NBR backup ring bring for this piston seal assembly?
A: NBR rubber maintains good elasticity and stable oil resistance under variable working pressure.
Q: What kind of working environment can this piston seal ring adapt to?
A: It can cope with frequent reciprocating movement under heavy load on rugged construction sites.
