VOE14588784 Ring heavy parts of EC480D, EC480E, EC700B
1. Quick Details of seal VOE14588784:
| Part NO. | VOE14588784 |
| Machine | excavator |
| Size | OEM |
| Material | PTFE |
| Type | RING SEAL |

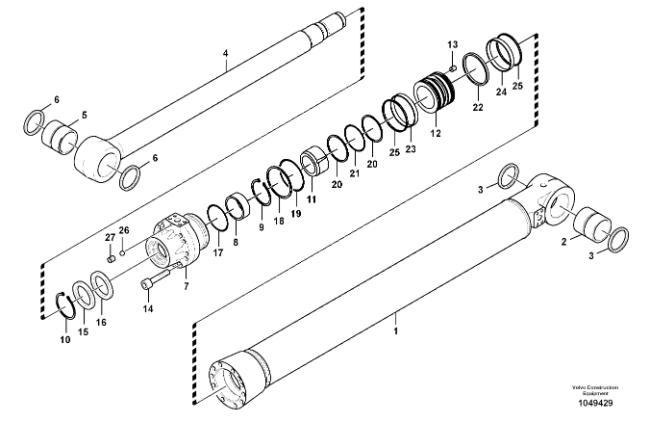

2. VOE14588784 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14587749 | Cylinder | 1 | |
| 1 | VOE14588672 | Tube | 1 |
| 2 | VOE14589004 | Bushing | 1 |
| 3 | VOE14560217 | Seal | 2 |
| 4 | VOE14575150 | Rod | 1 |
| 5 | VOE14589004 | Bushing | 1 |
| 6 | VOE14560217 | Seal | 2 |
| 7 | VOE14588453 | Head | 1 |
| 8 | SA9612-13050 | Bearing | 1 |
| 9 | SA9557-12000 | Retaining ring | 1 |
| 10 | SA9557-13000 | Retaining ring | 1 |
| 11 | VOE14587741 | Cushion | 1 |
| 12 | VOE14588454 | Piston | 1 |
| 13 | VOE14883743 | Set screw | 1 |
| 14 | VOE14568624 | Bolt | 12 |
| 15 | SA9564-21300 | Seal | 1 |
| 16 | VOE14588786 | Seal | 1 |
| 17 | VOE14588787 | Seal | 1 |
| 18 | SA9566-31750 | Back-up ring | 1 |
| 19 | VOE14611291 | O-ring | 1 |
| 20 | SA9566-31100 | Back-up ring | 2 |
| 21 | VOE990645 | O-ring | 1 |
| 22 | VOE14588812 | Seal | 1 |
| 23 | VOE14588784 | Ring | 1 |
| 24 | VOE14588783 | Ring | 1 |
| 25 | VOE14588785 | Seal | 2 |
| 26 | VOE14880995 | Ball | 1 |
| 27 | SA7281-11070 | Plug | 1 |
| VOE14612139 | Sealing kit | 1 |
3. VOE14588784 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 6V1454 | 7F8268 |
| 206-9298 | 3K-0360 | 1P-7363 |
| 8T-9597 | 8T-9597 | 1121579 |
| 236-6919 | 236-6919 | 9X7371 |
| 158-8979 | 249-6670 | 3P0655 |
| 2701820 | 5K9090 | 8175504 |
| 249-6670 | 6V8400 | 5J8175 |
5. FAQ
Q: What machine does part VOE14588784 fit?
A: VOE14588784 piston seal ring is designed for excavator hydraulic cylinders.
Q: What is the part name of VOE14588784?
A: The part name of VOE14588784 is piston seal ring, belonging to hydraulic sealing components.
Q: What material is this piston seal ring made of?
A: It is compound material with PTFE sliding layer and NBR rubber back-up ring.
Q: What is the main function of this piston seal ring?
A: It prevents hydraulic oil leakage between piston and cylinder bore under high pressure.
Q: Where will this seal be installed on the machine?
A: It is fitted into the groove of the hydraulic piston inside the excavator cylinder.
Q: What pressure range can this seal withstand?
A: It can work steadily under medium and high hydraulic pressure in cylinder system.
Q: What is the feature of this composite seal structure?
A: It has low friction coefficient and good wear resistance for long service life.
Q: Can this seal work in fluctuating temperature environment?
A: Yes, it can adapt to normal working temperature changes of construction machinery.
