VOE14587744 Ring heavy parts of EC480EHR, EC700B, EC700BHR
1. Quick Details of seal VOE14587744:
| Part NO. | VOE14587744 |
| Machine | excavator |
| Size | OEM |
| Material | PTFE |
| Type | RING SEAL |

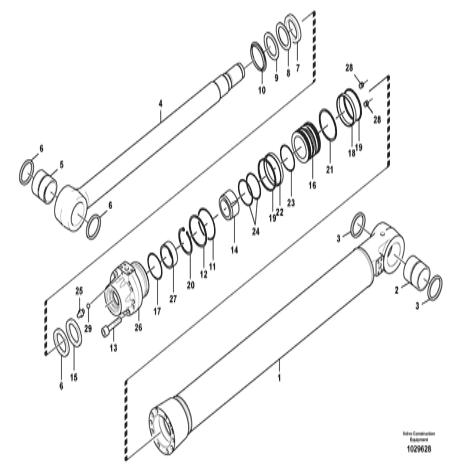

2. VOE14587744 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14575093 | Boom cylinder | 1 | |
| 1 | VOE14575094 | Tube | 1 |
| 2 | VOE14587734 | Bushing | 1 |
| 3 | VOE14560217 | Sea | 2 |
| 4 | VOE14587735 | Rod | 1 |
| 5 | VOE14587734 | Bushing | 1 |
| 6 | VOE14560217 | Seal | 2 |
| 7 | SA9563-21303 | Sea | 1 |
| VOE14588786 | Seal | 1 | |
| 8 | SA9567-21301 | Back-up ring | 1 |
| 9 | SA9564-21300 | Seal | 1 |
| 10 | SA9557-13000 | Retaining ring | 1 |
| 11 | VOE990657 | O-ring | 1 |
| 12 | SA9566-11850 | Back-up ring | 1 |
| 13 | VOE14568624 | Bolt | 12 |
| 14 | VOE14587741 | Cushion | 1 |
| 15 | VOE14587742 | Ring | 1 |
| 16 | VOE14587740 | Piston | 1 |
| 17 | SA1146-08160 | Seal | 1 |
| 18 | VOE14587743 | Ring | 1 |
| 19 | VOE14587745 | Seal | 2 |
| 20 | SA9557-12000 | Retaining ring | 1 |
| VOE14589003 | Seal | 1 | |
| 21 | VOE14587744 | Ring | 1 |
| 22 | SA9562-12000 | Piston seal | 1 |
| 23 | VOE990645 | O-ring | 1 |
| 24 | SA9566-31100 | Back-up ring | 2 |
| 25 | VOE14880995 | Ball | 1 |
| 26 | VOE14587739 | Head | 1 |
| 27 | SA9612-13050 | Bearing | 1 |
| 28 | VOE14588457 | Set screw | 2 |
| 29 | SA7281-11070 | Plug | 1 |
| 100 | VOE14599293 | Seal | 1 |

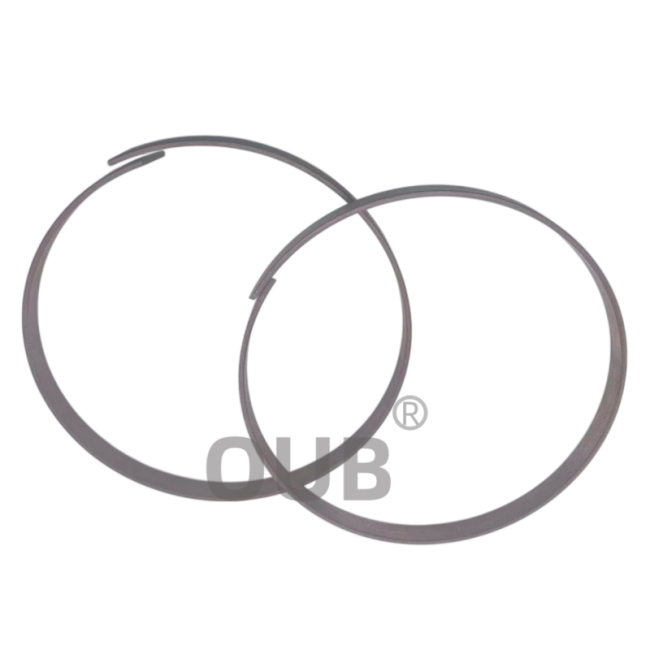

3. VOE14587744 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 3K-0360 | 6J7167 | 7F8268 |
| 206-9298 | 3K-0360 | 1P-7363 |
| 6K-6307 | 8J-4351 | 1121579 |
| 236-6919 | 236-6919 | 9X7371 |
| 158-8979 | 249-6670 | 3P0655 |
| 2701820 | 5K9090 | 8175504 |
| 249-6670 | 6V8400 | 5J8175 |
5. FAQ
Q: What kind of construction machine does spare part VOE14587744 fit for?
A: VOE14587744 piston seal ring is designed for excavator hydraulic cylinder assembly.
Q: What is the product category and official part name of VOE14587744?
A: VOE14587744 is classified as piston seal ring, a hydraulic piston sealing spare component.
Q: What raw materials compose this piston seal ring?
A: It adopts filled PTFE sliding surface paired with FKM rubber back support ring.
Q: What is the core working function of this piston seal ring?
A: It prevents hydraulic fluid bypass inside cylinder to maintain stable piston pressure output.
Q: Where is this piston seal ring mounted on the hydraulic cylinder?
A: It is fitted into the piston groove inside the arm hydraulic cylinder of excavator.
Q: What are the main performance strengths of this composite sealing ring?
A: It has outstanding heat resistance and strong resistance to hydraulic oil aging.
Q: What temperature range can this piston seal ring endure in operation?
A: It can keep stable sealing performance under high temperature working conditions of excavator.
Q: What symptoms will show if this piston seal ring gets damaged?
A: Hydraulic cylinder drifting and insufficient digging power will occur during operation.
